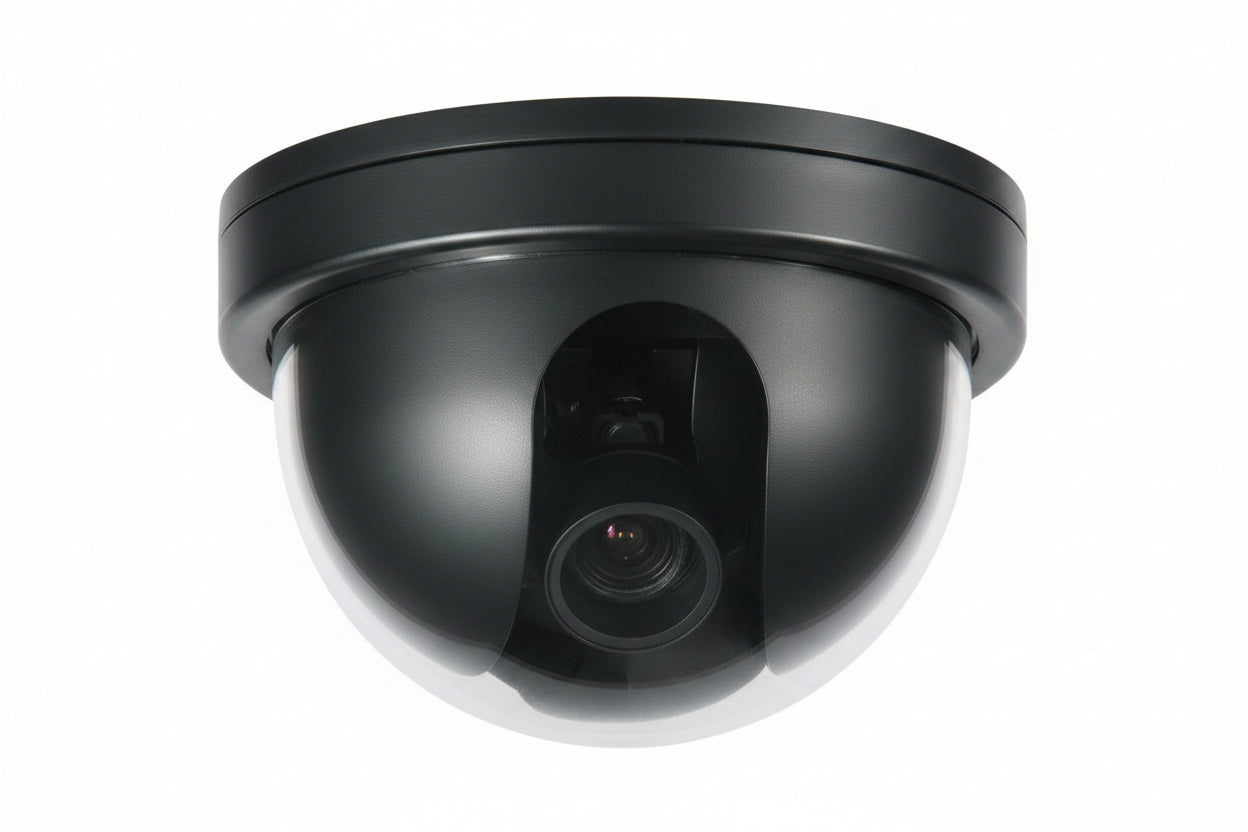

Speco CVC6246T Intensifier 2MP HD-TVI Dome Camera, 2.8-12mm Lens, Black

The Speco CVC6246T is a 2MP HD-TVI indoor dome camera from the Intensifier line, built to send full HD video over coax. It uses a 1/3″ Sony Exmor CMOS sensor and a 2.8-12mm auto iris varifocal lens, so you can set the field of view on site. It suits installers and businesses covering lobbies, hallways and elevators, and it amplifies existing light rather than relying on IR illumination.

Key features

• Delivers Full HD resolution over coax using HD-TVI.
• Amplifies existing light with no distance limitations, so reflective or IR-absorbing objects in the scene don't cause problems.
• Scene presets cover Outdoor, Indoor, Elevator, Lobby, Hallway and Dark.
• Runs on either 12VDC or 24VAC.
• Full OSD operation is available through UTC.
• The 3-axis wall or ceiling mount makes aiming flexible, and signal distance reaches up to 1600′.

Specifications

Brand: Speco

Model: CVC6246T

Product Line: Intensifier

Product Series: CVC

Product Type: Surveillance Camera

Form Factor: Dome

Indoor/Outdoor: Indoor

Color: Black

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Maximum Resolution: 1280 x 720

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Lens Type: Varifocal

Focal Length: 2.8-12mm

Optical Zoom: 4.3x

Wide Dynamic Range: Yes

Features: Auto Gain Control

Recording Formats: HD

Connectivity Technology: Wired

Mount Type: Wall Mount

Height: 3.80″

Diameter: 5.50″

Weight: 1.54 lb

Environmental Certification: RoHS

TAA Compliant: Yes

NDAA Compliant: Yes

Installation notes

This camera is rated for indoor use only, so mount it where it is protected from the weather. Check the power source (12VDC or 24VAC) before connecting, then set the lens and pick the scene preset that matches the location while viewing the live image.
