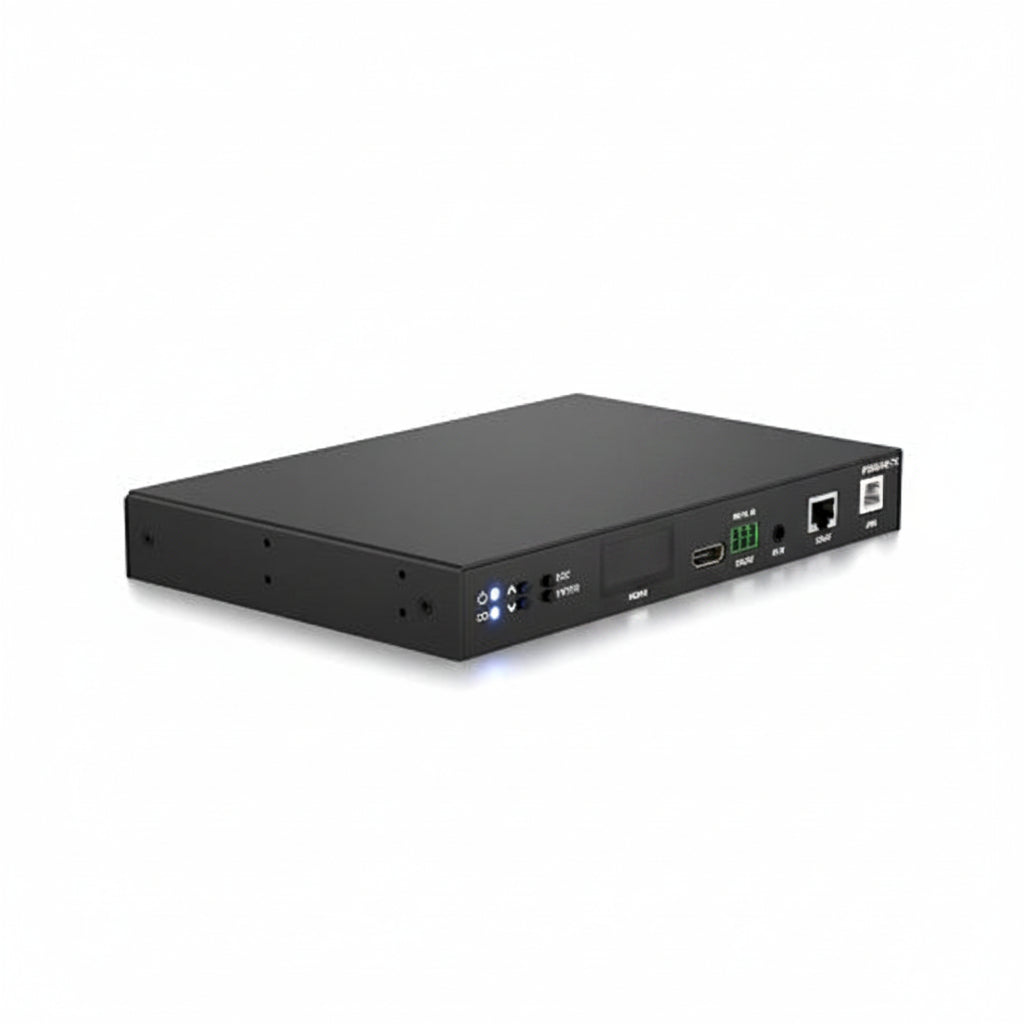

Blustream IP300UHD-TX IP Multicast HDMI2.0 Video Transmitter

The Blustream IP300UHD-TX is an AV over IP HDMI transmitter that sends 4K video and audio across a 1Gb managed network. It suits installers building multi-room or large distributed AV systems, since Blustream states system size is virtually unlimited. It reaches up to 100m over a single CAT cable, offers an SFP port for fibre, and can be powered from a PoE switch.

Key features

• Carries 4K HDMI 2.0 video, including 18Gbps signals, over a 1Gb managed network.
• Extends HDMI up to 100m over one CAT cable, or over fibre through the SFP port.
• Includes an HDMI loop-out for a local display or for cascading to other devices.
• Supports 4K UHD 60Hz 4:4:4 and HDR, including Dolby Vision LLM.
• Passes all known HDMI audio formats, including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.
• Routes IR, RS-232, USB/KVM, audio and video independently.

Specifications

Brand: Blustream

Model: IP300UHD-TX

Product type: AV over IP HDMI Transmitter

Network (RJ-45) ports: 1

Plug/connector type: SFP

Power source: PoE (Power over Ethernet)

Power consumption: 8.0000W

Width: 7.48″

Depth: 5.04″

Height: 0.98″

Environmental certification: RoHS

Package contents: 1 x Mounting Kit

Installation notes

Connect the unit to a managed switch that can supply PoE, and plan the switch's power budget for every transmitter and receiver on it. Mount it with the supplied kit close to the source device, and keep the CAT run and any HDMI loop-out cabling tidy and properly terminated.
