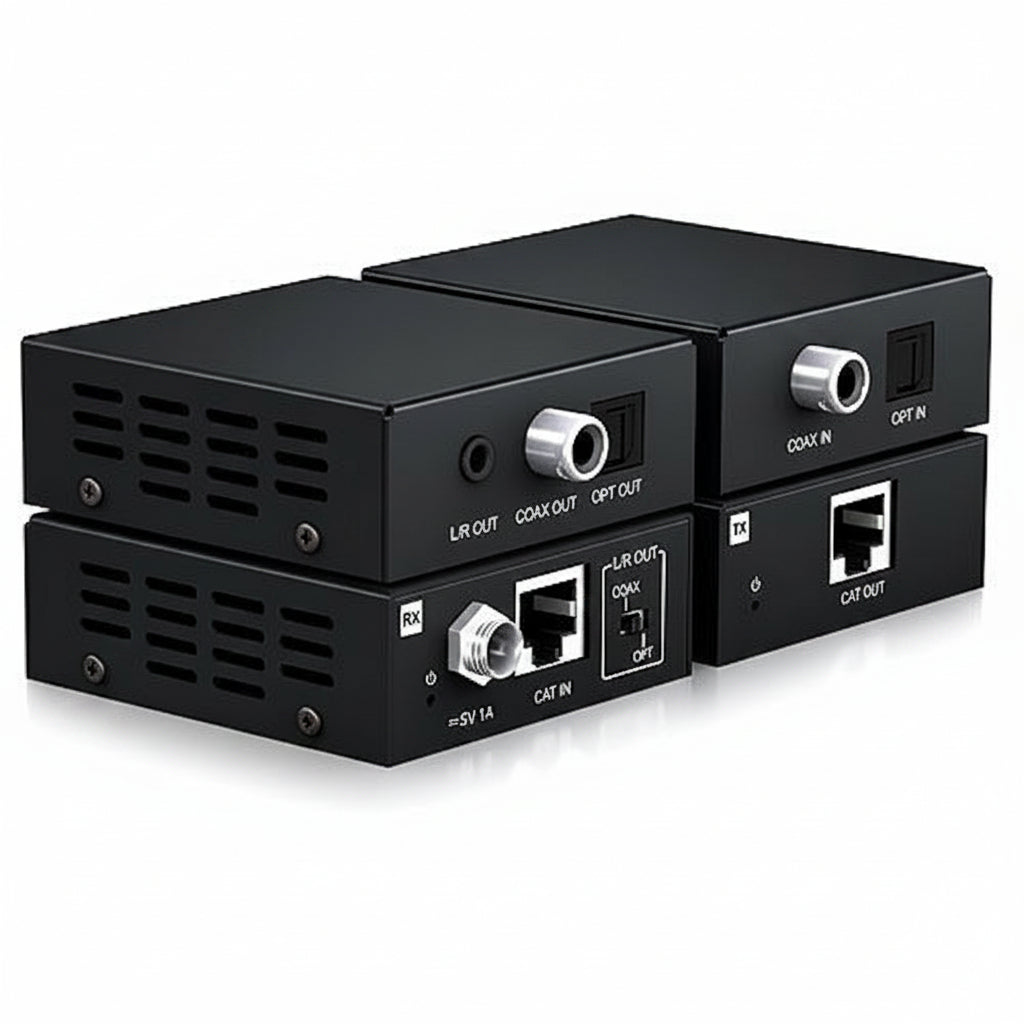

Blustream CAT100AU Digital Audio Over CAT5e/6 Extender Kit

The Blustream CAT100AU is a transmitter and receiver kit that sends digital audio over a single CAT cable. It takes optical and coaxial digital inputs at the same time, which suits installers who need to carry audio from a source to a remote amplifier or zone without running separate audio cables. Distances reach 300m for most signals, and the plug-and-play setup keeps commissioning simple.

Key features

• Extends optical and coaxial digital audio up to 300m over one CAT cable.
• Distributes optical and coaxial digital signals at the same time.
• Supports sample rates of 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz at up to 24-bit resolution.
• Works as a plug-and-play kit with a transmitter and receiver.
• Includes a 5V/1A DC power supply with a screw connector.

Specifications

Brand: Blustream

Model: CAT100AU

Product Type: Audio Extender Transmitter/Receiver

Cable Type: Category 6

Connectivity Technology: Wired

Media Type Supported: Coaxial

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 2

Number of Input Devices Supported: 2

Number of Output Devices Supported: 2

Maximum Operating Distance: 984'

Width: 2.56″

Height: 0.98″

Depth: 3.15″

Environmental Certification: RoHS

Environmentally Friendly: Yes

TAA Compliant: No

Country of Origin: CN

Package Contents: 1 x Transmitter, 1 x Receiver, Power Supply 5V/1A DC, Screw Connector

Installation notes

Use a properly terminated CAT run between the transmitter and receiver, and keep the cable away from mains wiring where possible. Place both units near their source and destination equipment, and confirm audio output at the receiver before closing up walls or ceilings.
