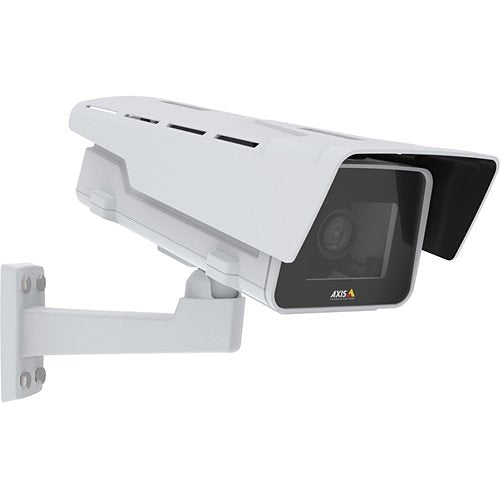

AXIS P1375-E 2MP Outdoor Fixed WDR Box IP Camera 2.8-8mm Lens White

The Axis P1375-E (model 01533-001) is a 2MP outdoor fixed box IP camera in white with a 2.8-8mm varifocal lens. It suits installers and businesses covering wide outdoor areas, with 1080p video at up to 60 fps, wide dynamic range and an IK10 impact rating. It is also NDAA compliant and rated IP66.

Key features

• Records Full HD 1080p video at up to 60 frames per second.
• Electronic image stabilization helps keep footage steady.
• Signed firmware and secure boot help protect the camera and your system.
• Zipstream works with H.264 and H.265 compression.
• Runs on PoE or DC power, so you can choose the supply that fits the site.
• IK10 impact protection suits exposed outdoor locations.

Specifications

Brand: Axis

Model: 01533-001

Product Model: P1375-E

Product Series: P13

Product Line: P

Product Type: Network Camera

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Maximum Resolution: 1280 x 720

Maximum Frame Rate: 60fps

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Recording Formats: Full HD

Video Formats: H.264

Wide Dynamic Range: Yes

Features: Day/Night

Lens Included: Yes

Lens Type: Varifocal

Focal Length: 2.8-8mm

Lens Mount Type: CS

Maximum Aperture: f/1.2

Field of View (Horizontal): 107.0°

Field of View (Vertical): 57.00°

Longest Shutter Speed: 2 Second

Shortest Shutter Speed: 1/66500 Second

Mount Type: Box Mount

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Dust Resistant

Operating Humidity: 100%

Minimum Operating Temperature: -40°F

Maximum Operating Temperature: 140°F

Connectivity Technology: Wired

Network (RJ-45): Yes

Input Voltage: 28V DC

Storage Type: Memory Card

Remote Management: Yes

NDAA Compliant: Yes

Color: White

Width: 6.30″

Height: 5.60″

Depth: 15.90″

Weight: 4.85lb

Country of Origin: TH

Installation notes

Choose the mounting position first, then set the varifocal lens to the field of view you need while you view the live image. Run the network cable with a drip loop and seal the outdoor connections, and confirm the camera is getting power from your PoE switch or DC supply before final aiming.
