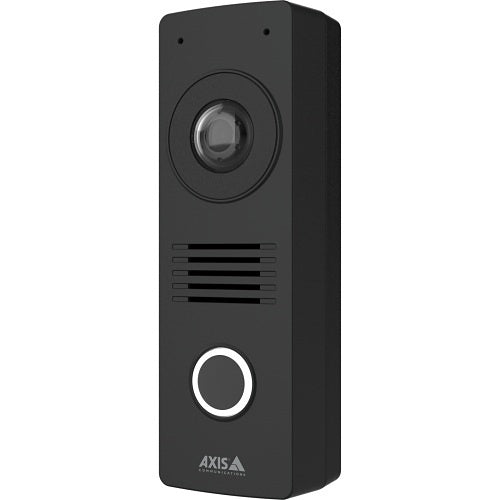

AXIS I8116-E Network Video Intercom 5MP Video with Audio

The Axis I8116-E (model 02409001) is a network video intercom that works as both a door communication device and a fixed security camera. It suits access control at outdoor entrances, giving installers and businesses 5MP video, full-duplex audio and a mullion form factor in one unit. It also supports SIP and analytics based on deep learning.

Key features

• Captures 5 MP video with audio for clear identification at the door.
• Fits narrow door frames and mullions with its mullion form factor.
• Supports SIP for use with SIP-based communication setups.
• Supports analytics based on deep learning.
• Includes built-in cybersecurity features.

Specifications

Brand: Axis

Model: I8116-E (02409001)

Product name: AXIS I8116-E Black

Product series: I81

Application: Access control

Effective resolution: 5MP

Image sensor: 1/2.7″ CMOS

Focal length: 1.95mm

Maximum frame rate: 30fps

Minimum illumination: 0.1500lux

Wide dynamic range: Yes

Video format: H.264 / AVC

Communication mode: Full-duplex

Built-in microphone: Yes

Power over Ethernet (PoE): Yes

Maximum power consumption: 10.80W

Indoor/outdoor: Outdoor

Ingress protection: IP65 (IEC/EN 60529)

Impact protection: IK07

Operating temperature: -30 to 60°C

Dimensions (H x W x D): 5.80″ x 1.90″ x 1.60″

Certifications: EN 55035

TAA compliant: Yes

Country of origin: PL

Installation notes

Plan the PoE cable run to the mounting location before you drill, and confirm the switch port can supply the unit's power draw. Aim the camera so the entry area is evenly lit, and test two-way audio and the video view at the door during commissioning.
