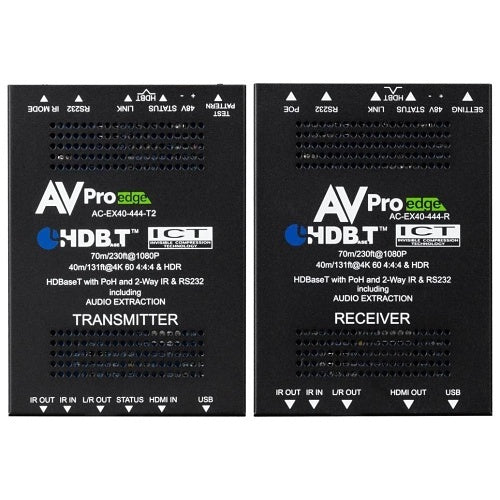

AVPro Edge AC-EX40-444-KIT 18Gbps HDBaseT Extender, HDMI 2.0, 40m

The AVPro Edge AC-EX40-444-KIT is an HDBaseT HDMI extender kit that sends HDMI 2.0 video over twisted pair copper out to 40m. It suits installers who need to run 4K60 4:4:4 video with HDR to a remote display and want built-in tools for commissioning and troubleshooting. Standouts include 17.82Gbps of bandwidth, bi-directional 48 V PoH from a single power supply, and test patterns on both the transmitter and receiver.

Key features

• Carries UHD 4K60 4:4:4 video over twisted pair copper with 17.82Gbps of bandwidth.
• Supports HDR10, HDR10+ and HLG, and can downscale 4K to 1080p for mixed display systems.
• Includes EDID management and emulation, plus CEC pass-through and 3D support.
• Built-in 4K and HD test patterns on the transmitter and receiver help with troubleshooting.
• Bi-directional 48 V PoH lets one power supply run both ends.
• I-Pass control signal pass-through, with a 3-20 V protection circuit for IR transport and bi-directional RS232.

Specifications

Brand: AVPro Edge

Model: AC-EX40-444-KIT

Type: HDBaseT HDMI Extender

HDMI: Yes

Installation notes

Use the built-in test patterns on the transmitter and receiver to confirm the link before connecting sources and displays. Because power is delivered over the cable from a single supply, plan the power location at one end and terminate the twisted pair run carefully.
