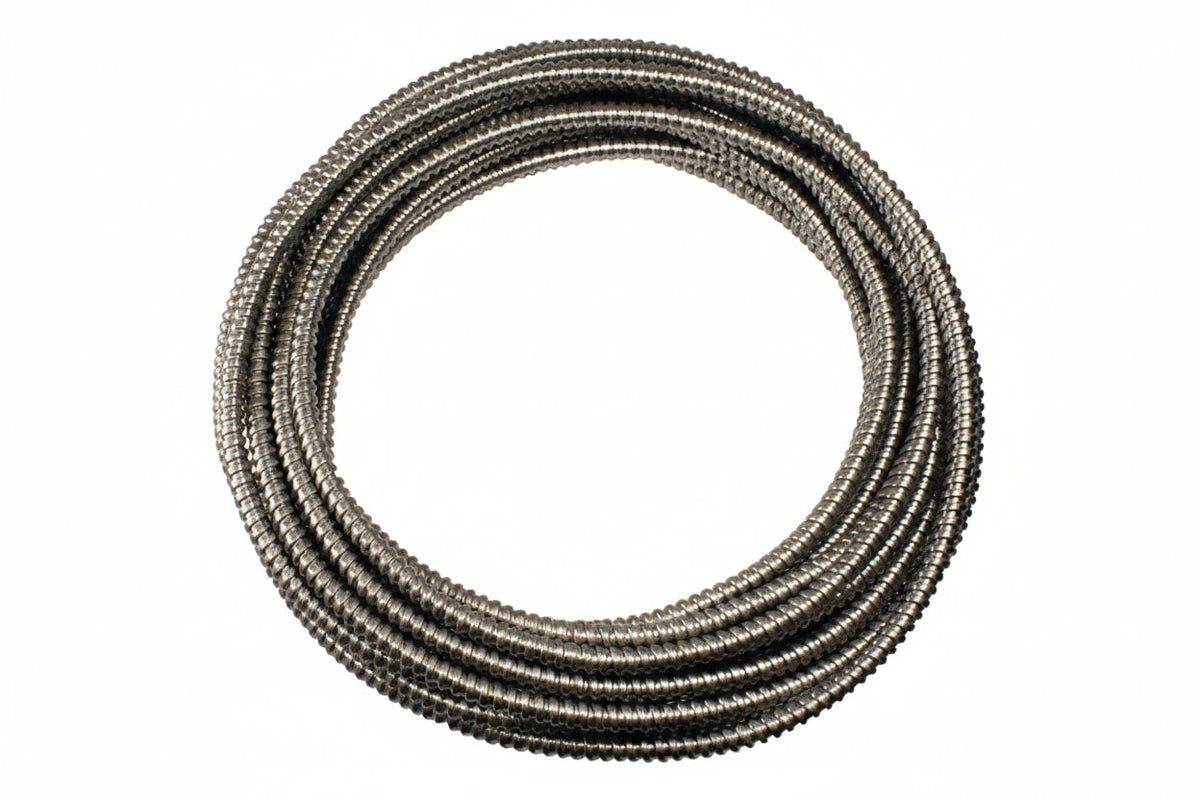

The GRI 5702-25 is a 25-foot stainless steel armored cable with a 3/16″ inside diameter, sold as a door cord for protecting switch wiring. It suits installers who need wire runs at a door shielded from damage. Its Squarelok armor and non-magnetic construction stand out, and it is made in the US by George Risk Industries (GRI).
Brand: GRI
Model: 5702-25
Product Type: Door Cord
Application/Usage: Door
Material: Stainless Steel
Color: Silver
Armored: Yes
Length: 25′
Size: 3/16″ (5mm)
Inside Diameter: 0.188″ (4.76mm)
Outside Diameter: 0.266″ (6.76mm)
Coiling: 1.750″ (44.45mm)
Breaking Load: 185 lbs (84 kgs)
Weight: 0.58 oz
Country of Origin: US
Plan the cable route at the door so the armor is not kinked or pinched as the door opens and closes. Leave enough slack at the hinge side for the cable to flex freely, and secure it at fixed points so the movement is taken up by the coil.
| Brand | GRI |
|---|---|
| Model | 5702-25 |
| Product type | Armored Cable, Stainless Steel |
Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
