DSC 3W-TLINKTL25 TL250 Internet Communicator with 2-Way IP Communication, Dual Receiver Reporting, 128-Bit Encryption, 4 Inputs/2 Outputs, Programmable via Keypad or Console, 120VDC

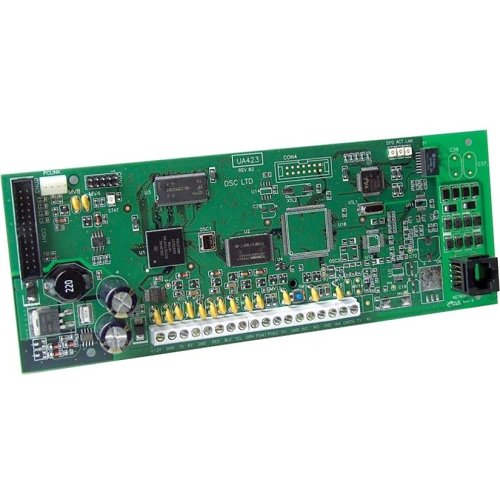

The DSC TL250 (model TLINKTL250) is a T-Link network internet alarm communicator that sends alarm events from a control panel to the central station over an IP connection. It suits installers and security businesses who want always-on, two-way reporting over a local network or the Internet. It stands out for 128-bit AES encryption and the ability to report to two receiver IP addresses.

Key features

• Connects through the built-in PC-Link on PC1864, PC1832, PC1616, Power864 and MAXSYS panels, or runs stand-alone with other control panels.
• Provides 2-way, always-on IP communication over a local LAN/WAN or the Internet.
• Protects traffic with NIST-approved 128-bit AES encryption.
• Reports events to two different receiver IP addresses and supports DHCP dynamic addressing.
• Includes polling and hardware substitution protection, plus a programmable heartbeat timer for the interval sent to the central station receiver.
• Needs little network bandwidth and works on 10/100BaseT networks.

Specifications

Brand: DSC

Model: TLINKTL250

Product model: TL250

Product type: Security/Home Automation Communicator

Connectivity: Wired

Ethernet: Yes

Inputs/outputs: 4 inputs, 2 outputs

Input voltage: 12V DC

Installation type: Hybrid (DIY + Professional)

Country of origin: CA

Installation notes

Confirm which control panel the communicator is paired with before wiring, since compatible panels use PC-Link while others need stand-alone mode. Verify the network connection and heartbeat interval with the central station during commissioning.
