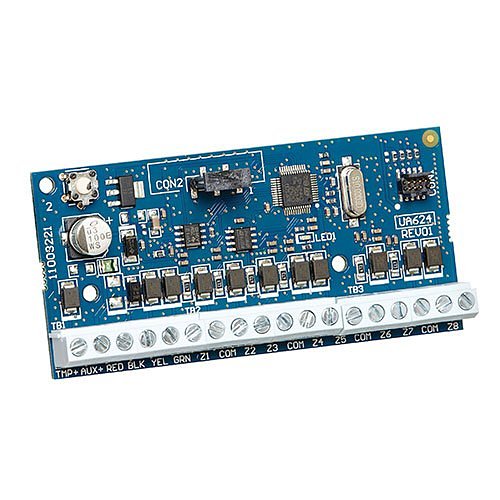

DSC HSM2108 PowerSeries Pro Neo Zone Expander Module 8, Hardwired

The DSC HSM2108 is a PowerSeries Pro Neo zone expander module that adds 8 hardwired zones to a DSC PowerSeries Neo control panel. It suits installers and homeowners who need more wired zone inputs, and its hybrid DIY and professional installation type keeps setup flexible. Supervised, encrypted communication back to the panel and support for several zone loop types are what stand out.

Key features

• Supports no end-of-line, single end-of-line and double end-of-line zone loops, using 5,600 Ohm resistors.
• Up to 15 modules can be connected per system.
• Fully supervised expansion keeps communication with the PowerSeries Neo control panel constant.
• Communications back to the PowerSeries Neo are fully encrypted.
• Wiring can be home run, daisy chained or tee-tapped anywhere on the Corbus.
• A tamper contact input is included.

Specifications

Brand: DSC

Model: HSM2108

Product Line: PowerSeries Neo

Product Type: Alarm Control Panel Expansion Module

Compatibility: DSC PowerSeries Neo Control Panel

Number of Zones Supported: 8

Connectivity Technology: Wired

Input Voltage: 12V DC

Current Draw: 40 mA (max)

Impedance: 600Ohm

Dimensions: 45mm x 92mm (1.12/16″ x 3 5/8″); Height 1.80″, Width 3.60″

Operating Temperature: 14°F to 131°F

Installation Type: Hybrid (DIY + Professional)

Environmental Certification: RoHS

Country of Origin: CA

Installation notes

Match the zone loop wiring to the end-of-line setting you plan to program, and label each module's zones as you wire them. Mount the module within the temperature range listed above and confirm it is communicating with the panel before closing up the enclosure.
