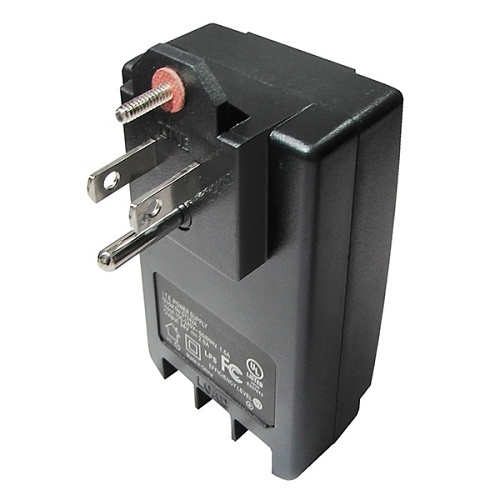

UltraTech 0E-PPS24V1AS 24VDC, 1 Plug-in Power Adapter, Screw Terminal with Ground

The UltraTech 0E-PPS24V1AS is a plug-in AC adapter that turns 120V AC input into regulated 24V DC power, with up to 1.0A and 24W of output. It suits installers and businesses powering indoor security and intrusion devices that need a 24VDC supply. A screw terminal with ground makes for a direct wired connection, and the unit is compact and light at 4.30 oz.

Key features

• Delivers a constant 24VDC output for steady operation of the connected device.
• Provides up to 24W of maximum output power.
• Runs from a 120VAC input.
• Offers good power efficiency in a comparatively light package.
• Intended for use with security devices.

Specifications

Brand: UltraTech

Model: 0E-PPS24V1AS

Product Type: AC Adapter

Device Supported: Security Device

Sector: Intrusion

Input Voltage: 120V AC

Output Voltage: 24V DC

Maximum Output Current: 1.0A

Maximum Output Power: 24.00W

Width: 2.20″

Height: 4.30″

Weight: 4.30 oz

Environmental Certification: RoHS

Country of Origin: CN

Installation notes

Confirm the connected device's voltage and current draw fall within the adapter's 24VDC output before wiring. Make the screw terminal connections with the adapter unplugged, keep polarity and the ground connection correct, and place the unit indoors where the outlet is easy to reach.
