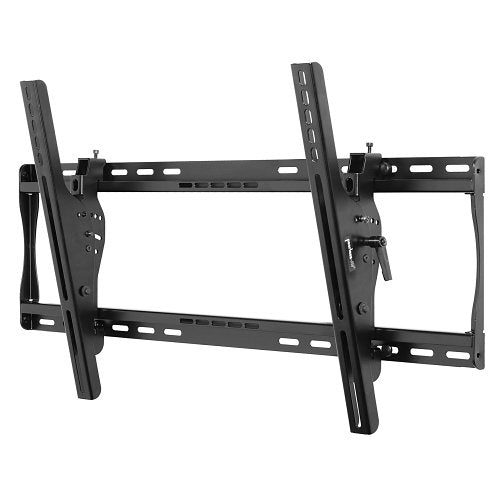

Peerless-AV ST650P SmartMount Universal Tilt Wall Mount for 39-75" Displays, Standard Models

The Peerless-AV ST650P SmartMount is a universal tilting wall mount for a single flat panel display from 39″ to 75″. It suits installers and homeowners who want a standard-hardware mount that can be adjusted and leveled after the display is on the wall. The ST650P uses standard hardware installed with a Philips screwdriver, and its display adaptor slides into the wall plate for quick hanging.

Key features

• Fits displays with mounting patterns up to 742 x 405 mm (29.21″W x 15.95″H), including VESA patterns up to 600 x 400 mm.
• Tilts 15° forward and 5° backward, and a thumbscrew locks the chosen angle in place.
• Each universal display adaptor bracket gives up to 0.25″ (6 mm) of vertical adjustment for leveling and fine-tuning height after installation.
• Wall and display attachment hardware is included.
• The design is UL listed and tested to four times its stated load capacity, and integrated security options are available.
• For theft-resistant hardware installed with a security tool, buy the ST650 instead.

Specifications

Model: ST650P

Brand: Peerless-AV

Product line: SmartMount

Product type: Wall mount, universal mount

Supported screen size: 39″ to 75″

Maximum load capacity: 175.00 lb

VESA standard: 600 x 400

Number of displays supported: 1

Width: 31.30″

Height: 16.90″

Depth: 5.40″

Color: Black

Finish: Fused epoxy

Environmental certification: OSHPD

TAA compliant: Yes

Country of origin: Taiwan

Package contents: SmartMountXT Universal Tilt Wall Mount for 39″ to 75″ Displays, wall and display installation hardware, installation instructions

Installation notes

Confirm the display's weight and mounting pattern against the mount's ratings before drilling, and fasten the wall plate to solid backing suited to the wall type. Hang the display, set the tilt and level it, then tighten the thumbscrew to lock the angle.
