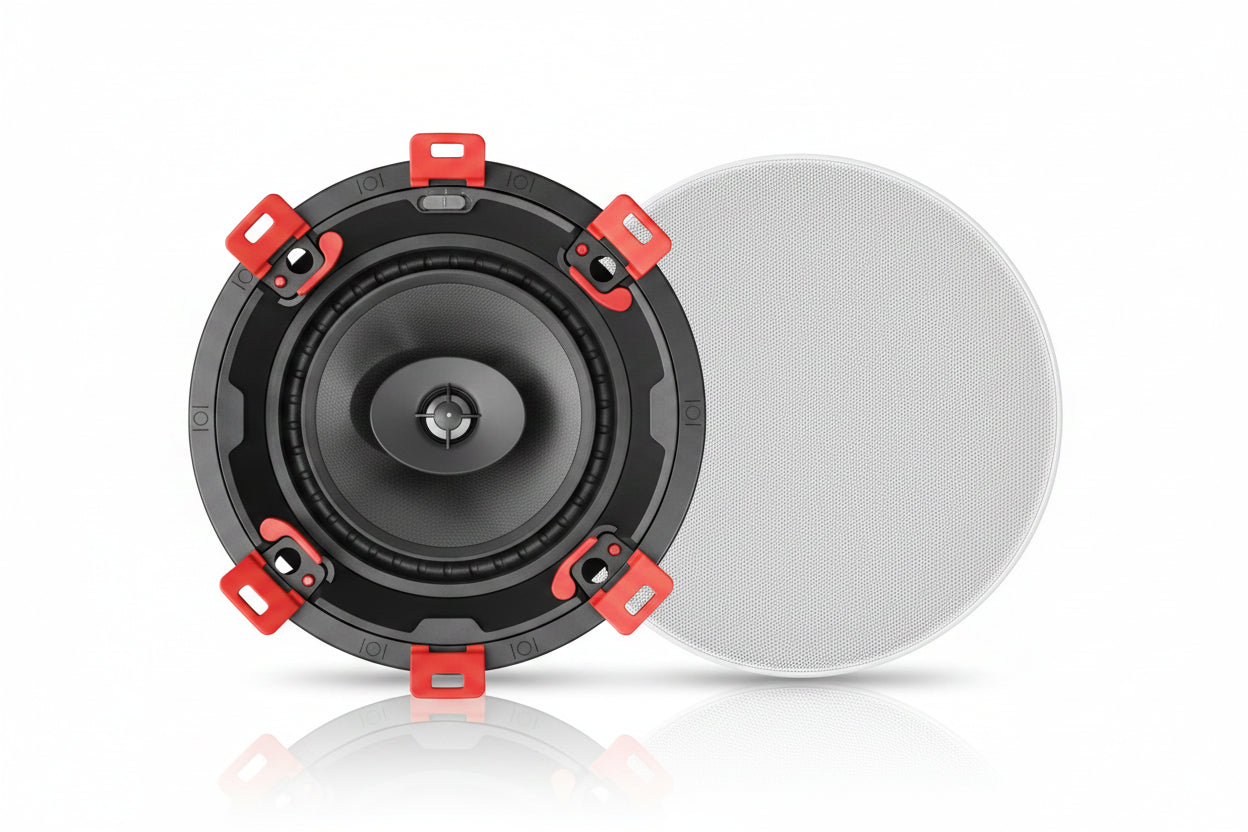

Episode SIG-78-IC Signature 7 Series 8" In-Ceiling Speaker

The Episode SIG-78-IC is an 8″ in-ceiling speaker from the Signature 7 Series, sold individually. It suits installers and homeowners building a high-quality distributed audio or home theater setup, and it is listed as compatible with Control4. A honeycomb fiberglass Nomex woofer and a pure titanium tweeter are aimed at audiophile applications.

Key features

• The woofer uses honeycomb fiberglass Nomex, paired with a pure titanium tweeter.
• Tweeter and woofer compensation switches let you adjust the sound to the room.
• Innovative tweeter pods are part of the design.
• It can be installed in a one-step or two-step process, and an optional direct-mount backbox is available.
• The flush-mount design and ribbed surround give a clean look in the ceiling.
• Both 6″ and 8″ sizes are offered in this line for flexible installs.

Specifications

Brand: Episode

Model: SIG-78-IC

Product Line: Signature

Product Series: 7

Speaker Type: In-Ceiling

Speaker Size: 8.00″

Sensitivity: 91dB

Impedance: 8Ohm

Maximum Frequency Response: 20kHz

Minimum Frequency Response: 20kHz

Compatibility: Control4

Height: 11.00″

Width: 11.00″

Depth: 11.00″

Weight: 6.10lb

Installation notes

Check the ceiling cutout location and available depth before cutting, and keep the speaker clear of joists and other obstructions. If you are using the optional direct-mount backbox, plan for it before the ceiling is closed up, and set the compensation switches once the system is running.
