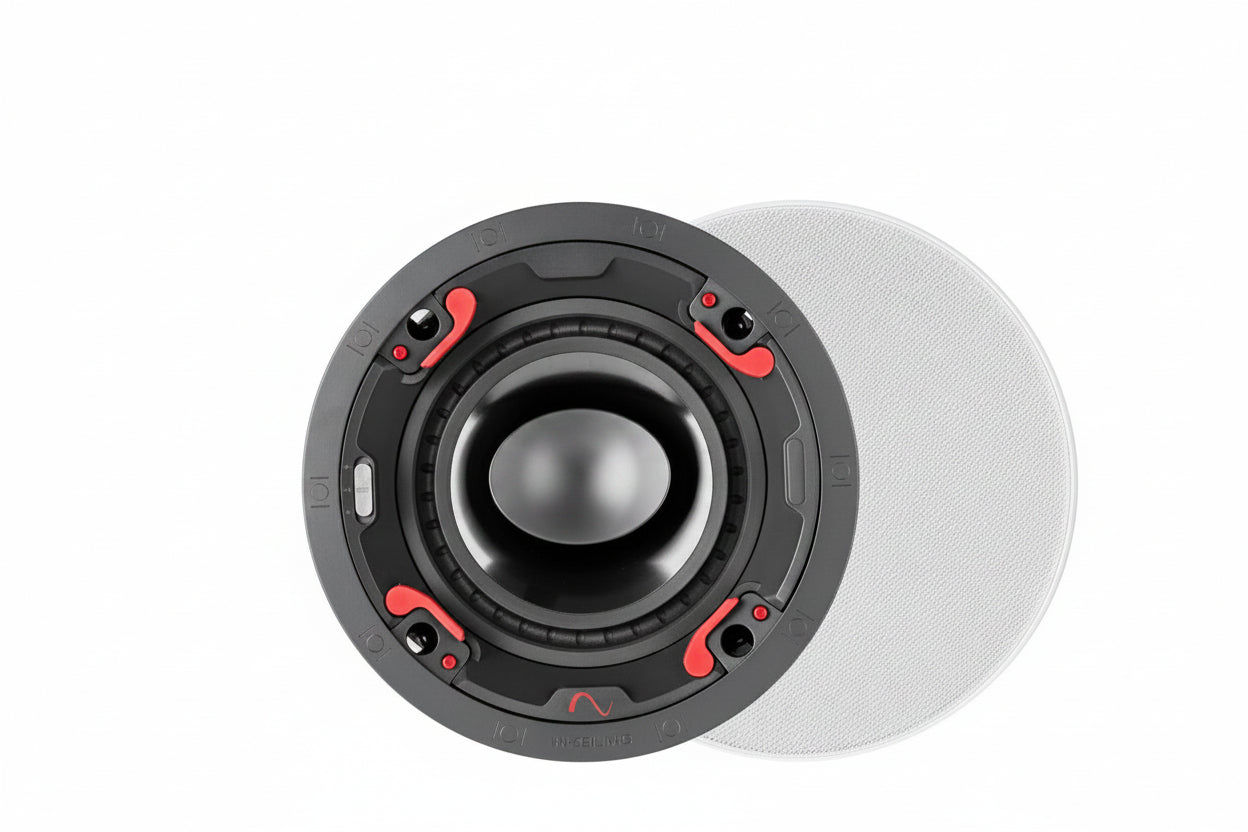

Episode SIG-56-IC Signature 5 Series 6" In-Ceiling Speaker

The Episode SIG-56-IC is a 6″ in-ceiling speaker from the Signature 5 Series, sold individually. It suits installers and homeowners building a distributed audio system, particularly one running on Control4. A polypropylene woofer and a silk dome tweeter with vacuum-deposited titanium handle the sound, and the tweeter is adjustable.

Key features

• The polypropylene woofer is paired with a silk dome tweeter with vacuum-deposited titanium.
• The tweeter is adjustable and has a compensation switch for tuning the sound to the room.
• Tweeter pods and a ribbed surround are part of the design.
• The flush-mount design sits level with the ceiling, and stronger grille magnets hold the grille in place.
• Simple, versatile brackets support a flexible install, and an optional direct-mount backbox is available.

Specifications

Brand: Episode

Model: SIG-56-IC

Product Line: Signature

Product Series: 5

Speaker Type: In-Ceiling

Speaker Size: 6″

Color: Black

Impedance: 8 Ohm

Sensitivity: 89dB

Minimum Frequency Response: 42Hz

Maximum Frequency Response: 20kHz

Compatibility: Control4

Dimensions: 9.6″

Depth: 4.8″

Weight: 4.70 lb

Installation notes

Check that the ceiling cavity has enough clearance for the 4.8″ mounting depth before cutting. Set the tweeter angle and the compensation switch during commissioning, after you have listened from the main seating position.
