IDEAL 85-385 CAT6 and 6A Feed-Thru RJ-45, 50-Card

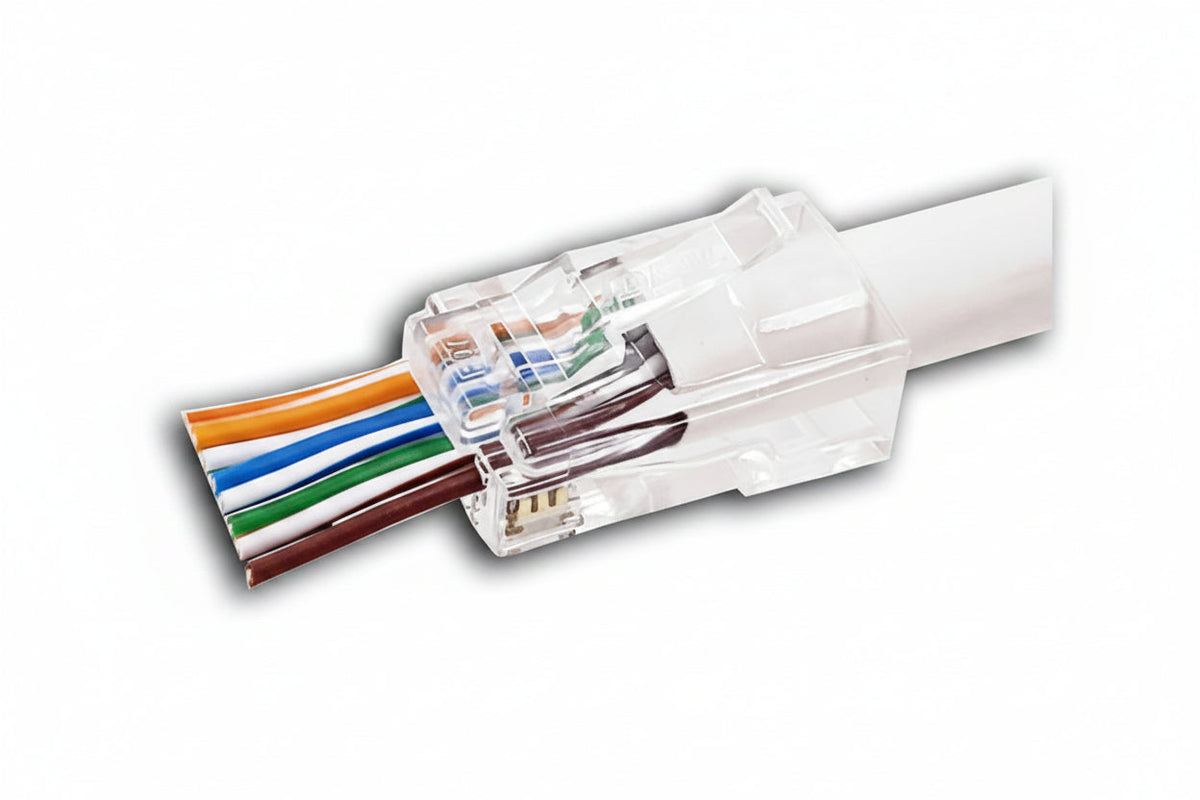

The IDEAL 85-385 is a pack of 50 unshielded Cat 6/6A feed-thru RJ-45 modular plugs for terminating network cable. It suits installers who want to pass conductors straight through the plug body and finish a run in the field. The staggered pin and conductor design and gold-plated contacts are what set it apart.

Key features

• Feed-thru design lets conductors pass through the plug during termination.
• Accepts insulated conductors from 0.040″ to 0.048″ in diameter.
• Handles a maximum jacket diameter of 0.320″.
• Staggered pin and conductor layout.
• Contact area is gold plated at 50 microns.

Specifications

Brand: Ideal

Model: 85-385

Product Name: Cat 6/6A Unshielded Feed-Thru RJ-45 Modular Plugs

Product Type: Network Connector

Product Line: DataCom

Product Series: Modular Plugs

Cable Type: Category 6

Connector Type: RJ45

Features: 8P8C

Shielding: No

Contact Plating: Gold

Color: Transparent

Packaged Quantity: 50

Country of Origin: TW

Installation notes

Check your cable's conductor and jacket diameters against the listed ranges before you terminate. Trim the conductors cleanly and seat them fully in the plug, then test each finished run.
