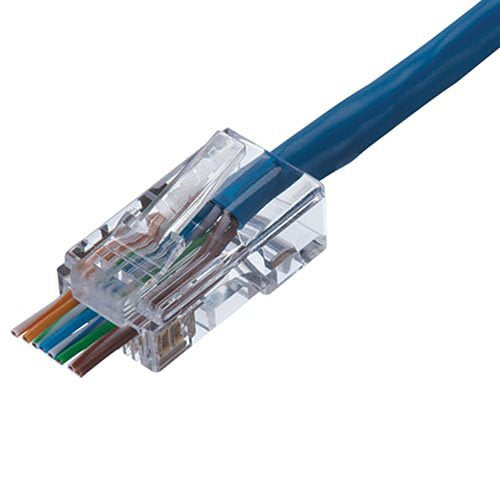

IDEAL 85-372J CAT5e Feed-Thru Modular Plug, 100-Pack

The IDEAL 85-372J is a 100-pack of CAT5e feed-thru modular plugs for terminating twisted pair cable. The feed-thru design lets you see the conductor order before you crimp, and the tool trims the conductors to length, so there is no measuring and fewer wasted connectors. It suits installers and technicians who terminate a lot of CAT5e and want a consistent result.

Key features

• Feed-thru design simplifies assembly of twisted pair cable.
• You can verify conductor order before crimping.
• The tool trims conductors to the correct length, so no measuring is needed.
• Primary and secondary strain relief supports hold the cable jacket and limit conductor movement once crimped.
• Three prong contact design works with solid or stranded 23-24 AWG insulated copper conductors up to 0.041″ in diameter.
• Single-piece design, made to work with the IDEAL FT-45™ Modular Plug Crimp Tool.

Specifications

Brand: Ideal

Model: 85-372J

Product Type: Connector Insert

Product Line: DataCom

Product Series: Modular Plugs

Cable Type: Category 5e

Application/Usage: Patch Panel

Color: Clear

Material: Copper

Packaged Quantity: 100

Maximum Outer Jacket Diameter: .270″

Conductor Size: 23-24 AWG, solid or stranded, up to 0.041″ diameter

Compatibility: IDEAL FT-45™ Modular Plug Crimp Tool; IDEAL Telemaster™ Crimping Tools (crimping only, no cutting of conductors)

Installation notes

Check the conductor order against your wiring standard before crimping, because the connection is permanent and a plug cannot be reused once crimped. Confirm the cable jacket and conductor sizes fall within the plug's limits so the strain relief seats properly.
