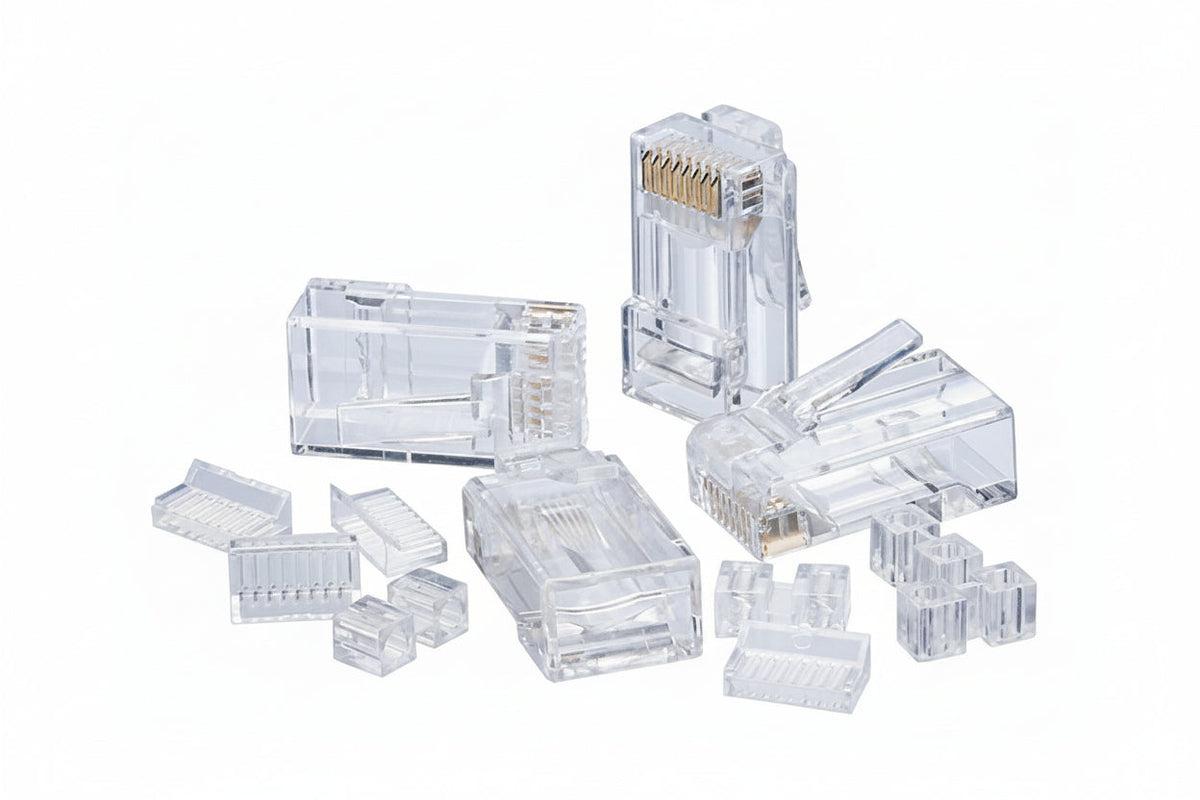

IDEAL 85-366 CAT6 RJ-45 8P8C Modular Plugs, 25-Pack

The IDEAL 85-366 is a pack of 25 clear, unshielded CAT6 RJ-45 (8P8C) modular plugs for terminating 100Ω balanced twisted pair cable rated to 250MHz. It suits installers and technicians who need a standard non-keyed plug that works with standard crimpers, including tools not made by IDEAL. Gold-plated contacts and a closed-end-face, non-feed-thru design are what set this plug apart.

Key features

• Built as an 8P8C RJ-45 plug for CAT6, 100Ω balanced twisted pair, 250MHz cable.
• Contact mating area has 50 micro″ gold plating.
• The 3-prong contact design accepts solid or stranded 24-26 AWG insulated copper conductors.
• Non-feed-thru design with a closed end face.
• Fits cables with a .290″ jacket diameter.
• Non-keyed (standard) connectors that work with standard crimpers, including non-IDEAL tools.

Specifications

Brand: Ideal

Model: 85-366

Product Type: Network Connector

Connector Type: RJ45

Cable Type: Category 6

Number of Contacts: 8

Number of Ports: 1

Contact Plating: Gold

Shielding: No

Color: Clear

Features: 3-Piece Standard

Product Line: DataCom

Product Series: Modular Plugs

Packaged Quantity: 25

Installation notes

Because the end face is closed, trim the conductors flush and seat them fully against it before crimping. Check the jacket diameter and conductor gauge against the plug's ratings first, and test each termination after crimping.
