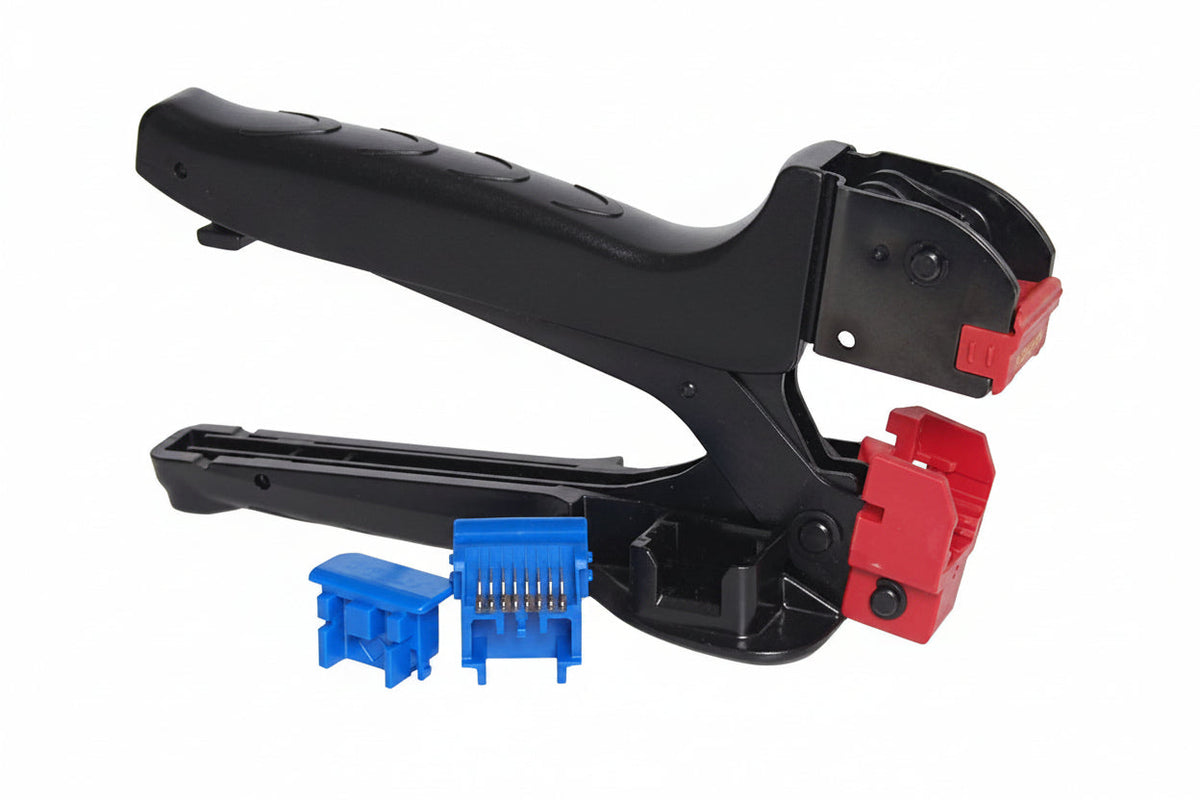

ICC ICACSPDTEH JackEasy Four-Pair Termination Tool for EZ and HD Connections

The ICC ICACSPDTEH JackEasy Termination Tool is a hand tool for terminating four-pair UTP cable onto ICC EZ and HD style modular voice and data connectors. It seats all four pairs and trims the excess wire and insulation in a single squeeze, which makes it a good fit for installers who punch down a lot of jacks. A steel body with an ergonomic handle and two included blade heads, one for EZ and one for HD, cover both connector styles.

Key features

• Terminates all four pairs of UTP wire in one squeeze.
• Cuts off excess wire and insulation for a clean termination.
• Works with EZ and HD style modular voice and data connectors.
• Includes one EZ and one HD termination blade head.
• Ergonomic handle for comfortable use.

Specifications

Brand: ICC

Model: ICACSPDTEH

Product line: JackEasy

Product type: Termination Tool

Application: Cable termination

Color: Black

Material: Steel

Finish: Powder coat

Features: Ergonomic handle

Package contents: JackEasy Termination Tool, 1 x EZ Termination Blade Head, 1 x HD Termination Blade Head

Packaged quantity: 1

Height: 11.00″

Length: 6.00″

Width: 3.00″

Weight: 1.10 lb

TAA compliant: Yes

Country of origin: TW

Installation notes

Fit the blade head that matches the connector style you are terminating before you start, and seat the conductors fully in the jack so the cut is clean. Check that the blade is oriented correctly relative to the excess wire, and inspect the termination after each squeeze.
