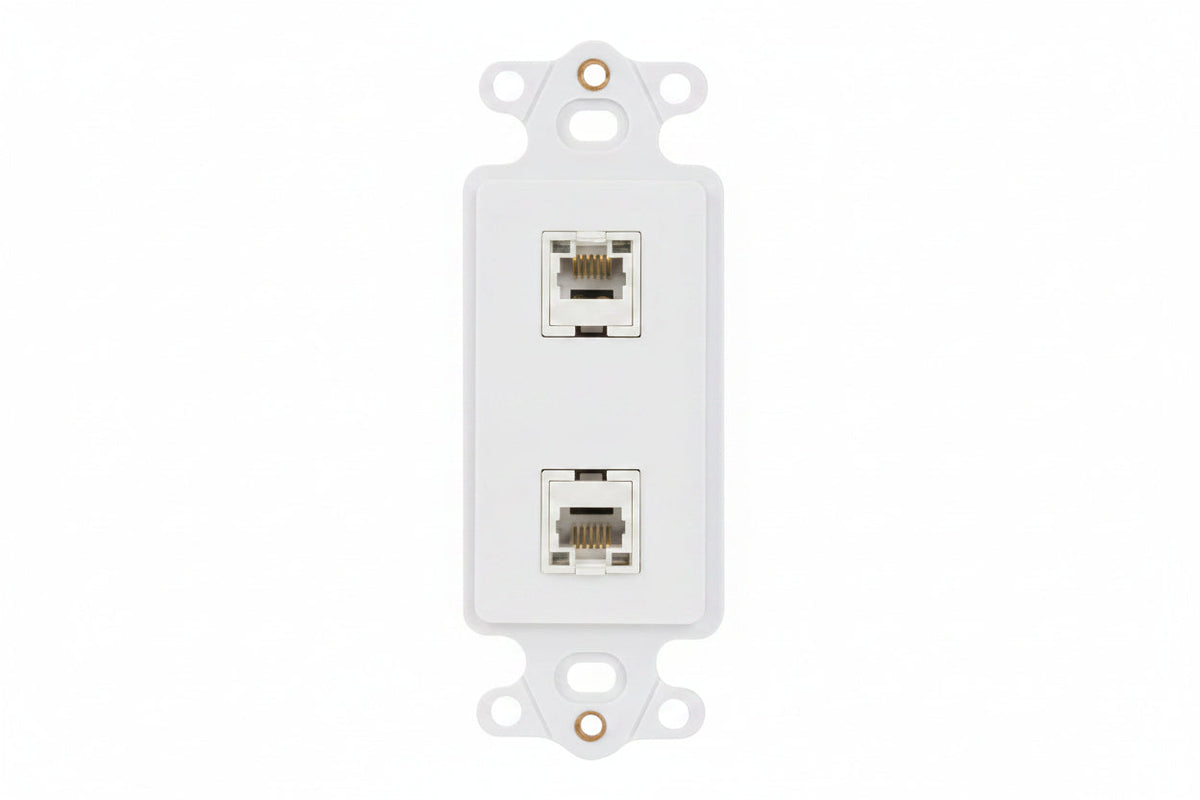

ICC IC107DI2WH Decorator Insert for Keystone Jacks, 2-Port Wall Plate Module, Decora Style, White

The ICC IC107DI2WH is a 2-port decorator insert that holds keystone jacks and other ICC modular connectors in a single-gang opening. It suits installers and homeowners who need a clean wall outlet for voice, data and other communication runs in commercial or residential spaces. It is designed to match standard decorator-style faceplates, and it works with Decorex faceplates, so the finished wall plate looks consistent.

Key features

• Supports distribution of voice, data and other communication needs.
• Fits standard NEMA electrical boxes.
• Designed to give a consistent look with standard decorator style faceplates.
• Compatible with all Decorex faceplates.
• Takes easy snap-in modules, so you can configure the outlet to suit the job.
• Accepts all ICC modular connectors and keystone jacks.

Specifications

Brand: ICC

Model: IC107DI2WH

Product Type: Faceplate Insert

Color: White

Material: ABS

Total Number of Sockets: 2

Number of Gangs: 1

Length: 4.20″

Depth: 0.50″

Accepts: All IC107 modules

Environmental Certification: RoHS

Environmentally Friendly: Yes

Packaged Quantity: 1

Package Contents: IC107DI2WH 2 Socket Faceplate Insert; 2 x Pan Head Machine Screw

Country of Origin: CN

Installation notes

Terminate and test your cabling before snapping the jacks into the insert, so any faults are easier to fix. Check that the box is mounted flush and level before securing the insert with the supplied screws, and confirm your chosen faceplate fits the insert before closing up the wall.
