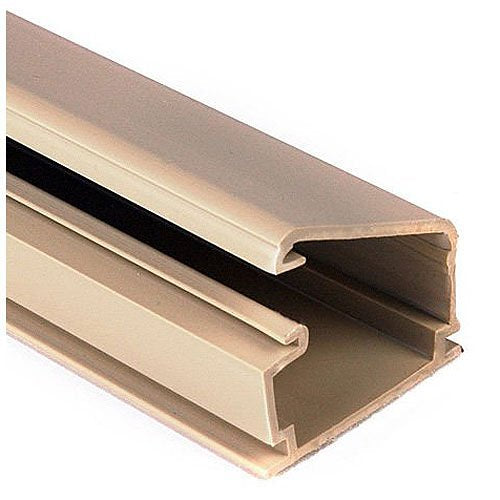

HellermannTyton TSR1I-8A 3/4-Inch One-Piece Surface Raceway, 8-Foot Length, PVC, 160 Feet per Carton, Ivory

The HellermannTyton TSR1I-8A (model TSR1I8A) is a one-piece PVC surface raceway, 3/4 inch, sold in 8-foot lengths with 160 feet per carton. It routes communication and power cables along wall surfaces, so you don't have to break into existing walls. The tamper-resistant cover has a hidden latch that still opens quickly for cable maintenance.

Key features

• The cover has a hidden latch, which deters tampering and still allows quick access to the cables.
• PVC construction is lightweight and durable, and more affordable than metallic raceway systems.
• A flexible hinge is designed to reduce stress cracking and discoloration from repeated opening and closing.
• Foam tape backing with rubber-based adhesive conforms to flat surfaces and helps with temporary positioning and mounting.
• Fittings have a minimum 1″ bend radius to meet TIA/EIA 568-B and 569-A standards.
• The system and fittings are offered in white, office white and ivory to coordinate with different décor.

Specifications

Brand: HellermannTyton

Model: TSR1I-8A

Product type: Cable Raceway

Material: PVC

Color: White

Height: 0.50″

Length: 8.00″

Environmental certification: RoHS

Environmentally friendly: Yes

Country of origin: US

Installation notes

Clean the mounting surface and confirm it is flat before you press the raceway into place. Use the foam tape to hold the run in position while you check alignment, and keep cable bends at or above the fitting bend radius.
