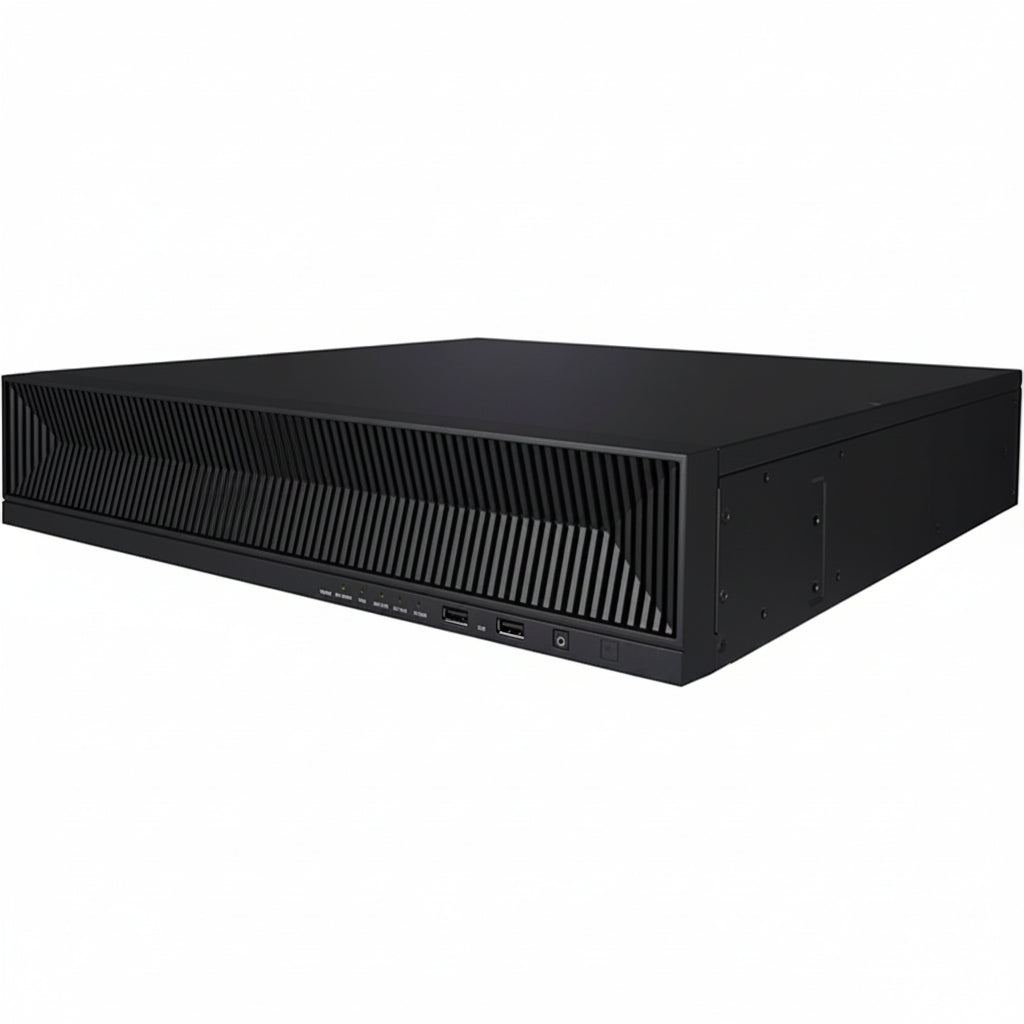

Hanwha XRN-1620SB1 X-Series 4K 16-Channel H.265 PoE+ NVR with AI Search, 140Mbps, 8TB HDD, Black

The Hanwha XRN-1620SB1 (model XRN-1620SB1-8TB) is a 16-channel network video recorder from the X-Series that comes with an 8TB hard drive. It records and manages IP camera video through 16 built-in PoE ports, so cameras can be plugged straight into the recorder. It suits installers and businesses building a small to mid-size system, and it stands out for AI search when paired with AI cameras, support for cameras up to 32MP, and up to 140 Mbps of recording bandwidth.

Key features

• Supports up to 16 channels, with camera resolutions up to 32MP.
• Records network cameras at up to 140 Mbps.
• Offers AI search when used with an AI camera.
• Handles H.265, H.264 and MJPEG codecs.
• Powers and connects cameras directly through 16 PoE ports.
• Includes Dynamic Event support and bookmark management for up to 100 sets.

Specifications

Model: XRN-1620SB1

Brand: Hanwha

Product Series: X

Product Type: Video Surveillance Station

Number of Channels: 16

Effective Camera Resolution: 32MP

Bandwidth: 140Mbps

Hard Drive Capacity: 8TB

Storage Capacity: 8TB

Video Formats: MJPEG

Recording Formats: H.264

Maximum Frame Rate: 200fps

Maximum Resolution: 1280 x 720

Monitor Output: HDMI / VGA

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Number of USB Ports: 1

Remote Management: Yes

Power Consumption: 310W

Color: Black

Height: 3.50″

Width: 17.30″

Depth: 16.90″

Weight: 12.70 lb

NDAA Compliant: Yes

TAA Compliant: No

Installation notes

Place the recorder in a ventilated rack or equipment area with enough room for its full depth and cabling, and keep it on a stable, protected power source. Run each camera cable to its PoE port, confirm every camera is detected, and then set up recording and event rules before leaving the site.
