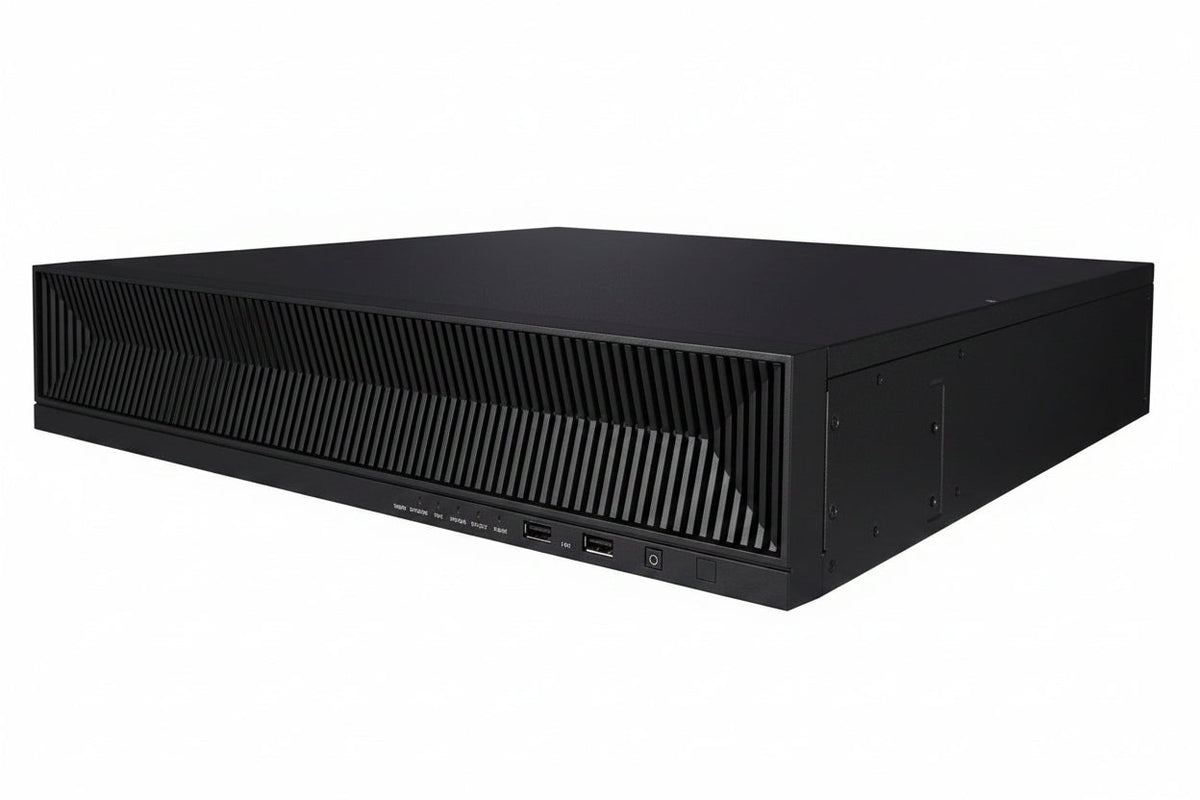

Hanwha XRN-1620SB1 X-Series 4K 16-Channel H.265 PoE+ NVR with AI Search, 140Mbps, 4TB HDD, Black, (Replaces XRN-1610SA)

The Hanwha XRN-1620SB1 (model XRN-1620SB1-4TB) is a 16-channel network video recorder with 16 built-in PoE ports and a 4TB hard drive. It records and manages IP camera footage for installers, businesses and homeowners who want cameras connected straight to the recorder. It supports cameras up to 32MP, records up to 140 Mbps, and offers AI search when paired with AI cameras.

Key features

• Handles up to 16 channels and cameras up to 32MP.
• Records network camera streams at up to 140 Mbps.
• Sixteen PoE ports let you plug in cameras without a separate switch.
• AI search works when the recorder is used with AI cameras.
• Supports H.265, H.264 and MJPEG codecs.
• Bookmark management stores up to 100 sets, and new camera events are available without a software update.

Specifications

Brand: Hanwha

Model: XRN-1620SB1-4TB

Product Series: X

Product Type: Video Surveillance Station

Number of Channels: 16

Effective Camera Resolution: 32MP

Bandwidth: 140Mbps

Maximum Frame Rate: 200fps

Storage Capacity: 4TB

Hard Drive Capacity: 4TB

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Number of USB Ports: 1

Remote Management: Yes

NDAA Compliant: Yes

TAA Compliant: No

Color: Black

Power Consumption: 310W

Width: 17.30″

Depth: 16.90″

Height: 3.50″

Weight: 12.70 lb

Installation notes

Place the recorder in a ventilated rack or shelf with room around it for airflow, and keep cable runs from each camera to the PoE ports labeled to make commissioning and later service easier. Connect a monitor over HDMI or VGA for setup, and confirm each camera is detected and recording before leaving the site.
