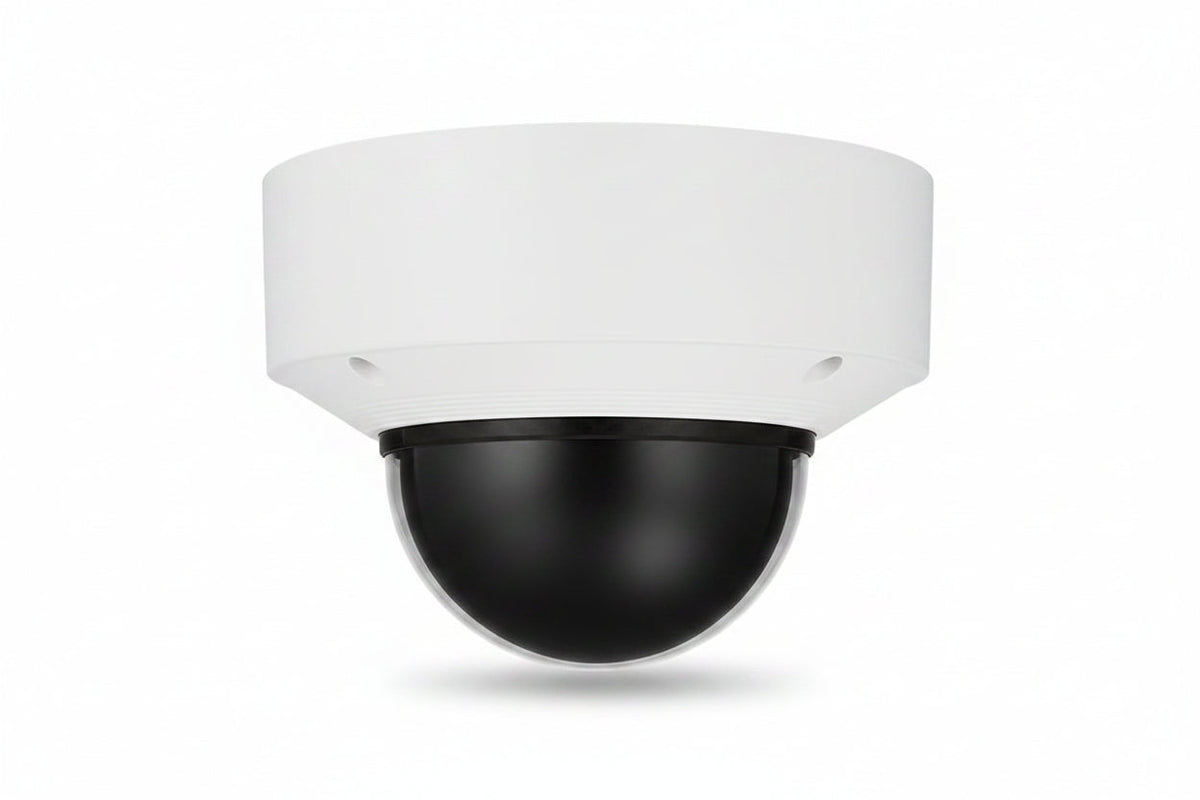

Hanwha XNV-C9083R Series Peripheral 4K Outdoor IR Vandal Dome IP Camera, 4.4 9.3mm Lens, White

The Hanwha XNV-C9083R is an 8MP (3840 x 2160) outdoor IR vandal dome network camera with a 4.4-9.3mm motorized varifocal lens, finished in white. It suits installers and businesses that need a durable, weather-resistant camera for night-time coverage of entrances, perimeters and parking areas. Its AI-based object detection and analytics, along with IK10 impact and IP66 ingress ratings, set it apart.

Key features

• Records 4K video at up to 30 fps using H.265 or H.264 compression.
• WiseIR provides infrared viewing out to 40 m (131.23 ft), and the camera also has Day & Night (ICR) and extremeWDR (120 dB).
• The motorized varifocal lens covers 4.4-9.3 mm (2.1x), so you can adjust the view without changing lenses.
• The AI engine drives WiseNRII noise reduction and WiseStream III compression.
• AI analytics detect people, faces, vehicles and license plates. IVA adds virtual line and area, enter/exit, loitering, direction and intrusion events.
• A hard-coated dome bubble protects the lens.

Specifications

Brand: Hanwha

Model: XNV-C9083R

Product Type: Dome Camera

Color: White

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Aspect Ratio: 16:9

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Lens Type: Varifocal

Focal Length: 4.4-9.3mm

Optical Zoom: 2.1x

Maximum Aperture: f/1.3

Minimum Aperture: f/2.15

Field of View (Horizontal): 113.0°

Field of View (Vertical): 58.00°

Minimum Illumination: 0.0040 lux

Shutter Speed: 1/12000 second to 2 seconds

Night Vision: Infrared (IR), 131.23'

Wide Dynamic Range: Yes

Video Formats: H.264

Features: Audio Detection

Storage Type: Memory Card

Connectivity: Wired, Network (RJ-45)

Input Voltage: 12V DC

Remote Management: Yes

Cloud Capabilities: Cloud Enabled

Mount Type: Pendant Mount

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Operating Temperature: -40°F to 131°F

Operating Humidity: 100% RH (Condensing)

Diameter: 6.30″

Weight: 3.20 lb

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

Mount the camera on a solid surface suited to its weight, and seal cable entry points so moisture stays out of the enclosure. Aim it away from bright light sources and nearby reflective surfaces that could cause IR glare at night, then fine-tune the view with the motorized zoom and focus once it is powered up on site.
