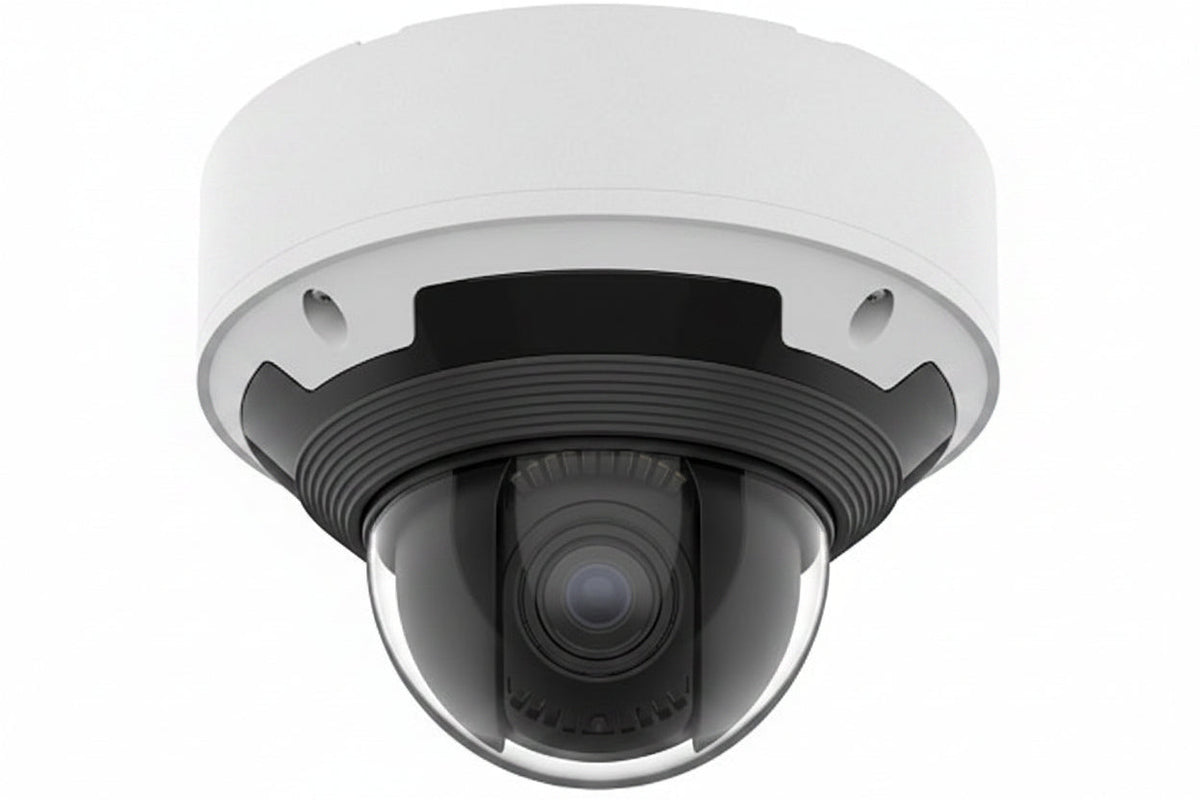

Hanwha XNV-9083RZ 4K AI IR PTRZ Vandal Dome Camera

The Hanwha XNV-9083RZ is a 4K outdoor vandal dome network camera with a motorized varifocal lens and built-in infrared for night viewing. It suits installers and businesses that need a tamper-resistant camera whose view can be set remotely. AI-based object detection covering people, faces, vehicles and license plates is what sets it apart.

Key features

• The 4.4~9.3 mm (2.1x) motorized varifocal lens can be adjusted remotely with PTRZ, so framing changes don't need a ladder.
• Infrared reaches 15m (49.21ft) or 30m (98.43ft) depending on the scene, with color sensitivity of 0.04 Lux and 0 Lux when the IR LED is on.
• extremeWDR (120 dB) and Day & Night (ICR) help with high-contrast scenes and changing light.
• The AI engine (NPU) detects people, faces, vehicles (car, truck, bus, bicycle, motorcycle) and license plates.
• WiseNR and WiseStream III, both based on the AI engine, handle noise reduction and stream efficiency at up to 30 fps in H.265/H.264.
• A hard-coated dome bubble adds protection to the vandal-resistant housing.

Specifications

Brand: Hanwha

Model: XNV-9083RZ

Product Type: Network Camera

Form Factor: Dome

Color: White

Effective Camera Resolution: 8MP

Recording Formats: 4K

Image Sensor Type: CMOS

Aspect Ratio: 16:9

Lens Type: Varifocal (lens included)

Focal Length: 4.4-9.3mm

Optical Zoom: 2.1x

Maximum Aperture: f/1.3

Minimum Aperture: f/2.15

Field of View (Horizontal): 113.0°

Field of View (Vertical): 58.00°

Shutter Speed: 1/12000 second to 2 seconds

Maximum Frame Rate: 30fps

Video Formats: H.264

Wide Dynamic Range: Yes

Night Vision: Yes, Infrared (IR)

Night Vision Distance: 98.43'

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Impact Resistant

Operating Temperature: -58°F to 131°F

Operating Humidity: 95%

Connectivity Technology: Wired

Network (RJ-45): Yes

Storage Type: Memory Card

Features: Alarm Triggering

Remote Management: Yes

Cloud Capabilities: Cloud Enabled

TAA Compliant: Yes

Country of Origin: VN

Diameter: 7.10″

Weight: 4.41lb

Installation notes

Mount the camera on a solid surface that can carry its weight, and seal the cable entry to protect the outdoor connection. Aim the camera so it doesn't face bright lights or reflective surfaces that can wash out the infrared image, then use the remote PTRZ controls to fine-tune the view during commissioning.
