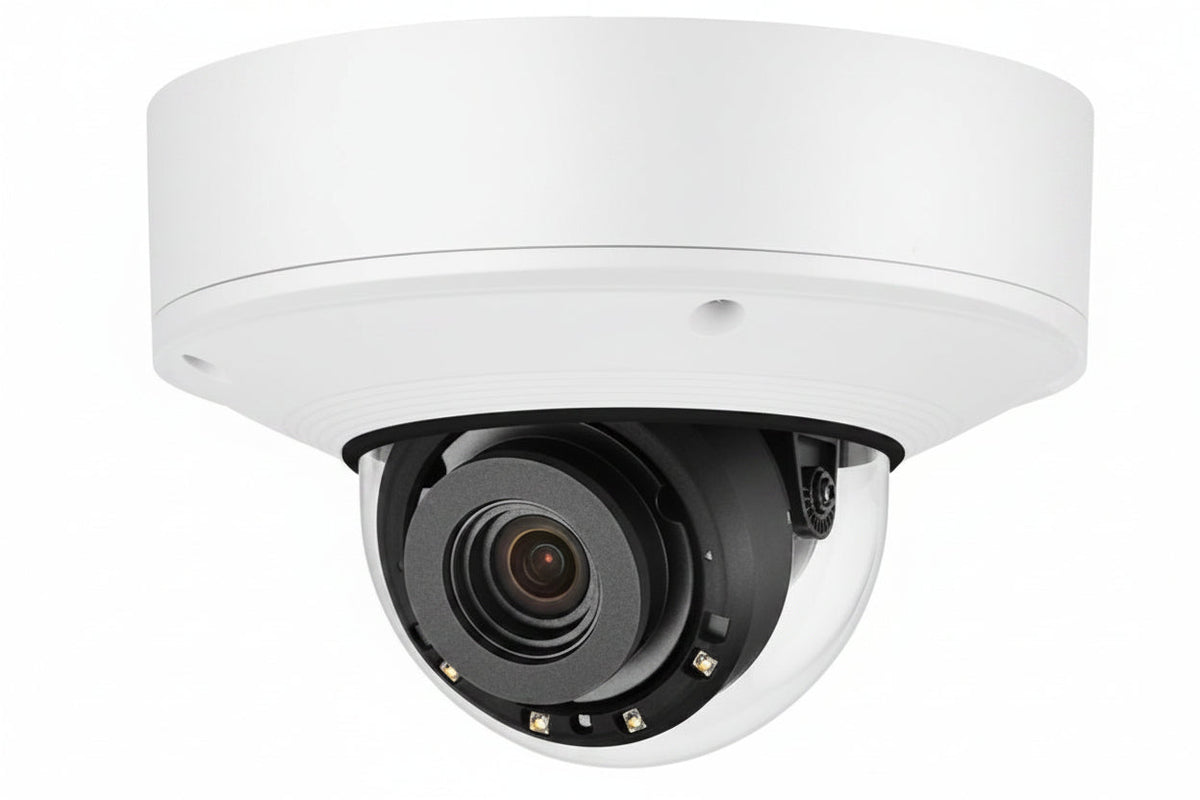

Hanwha XNV-9082R X-Series 8MP Outdoor IR Vandal Dome Camera, 2.8-8.4mm Varifocal Lens, White

The Hanwha XNV-9082R is an 8MP (4K) outdoor network dome camera from the X-Series, built for installers and businesses that need detailed video in tough conditions. It pairs a 2.8-8.4mm motorized varifocal lens with infrared night vision and an IK10, IP66 vandal-resistant housing. Extreme WDR and built-in analytics, including face and upper body detection, make it a good fit for entrances, parking areas and other exposed locations.

Key features

• The motorized 3x varifocal lens lets you set the view without climbing back up to the camera.
• Built-in IR LEDs reach 40m, and the camera is rated 0 lux in black and white mode with the IR on.
• Extreme WDR at 120dB helps keep detail in scenes with bright and dark areas.
• Electronic image stabilization using a built-in gyro sensor helps steady the picture.
• Analytics cover defocus, directional detection, audio detection, shock detection and face/upper body detection.
• Dual SD card slots support up to 512GB, and the modular design supports PoE.

Specifications

Brand: Hanwha

Model: XNV-9082R

Series: X

Product type: Vandal Dome Network Camera

Effective resolution: 8MP (4K UHD)

Maximum frame rate: 30fps at 4K (H.265/H.264)

Image sensor: CMOS

Lens: 2.8-8.4mm varifocal, 3x optical zoom, lens included

Aperture: f/1.2 to f/2.8

Field of view: 114.0° horizontal, 62.00° vertical

Minimum illumination: 0.05 lux at F1.2 (color), 0 lux (B/W, IR LED on)

Shutter speed: 1/12000 second to 2 seconds

Night vision: Infrared (IR), 131.23′ (40m)

Wide dynamic range: Yes, 120dB

Video formats: MJPEG

Recording formats: H.264

Storage: SD card, dual slots, up to 512GB

Network: RJ-45, wired

Remote management: Yes

Cloud: Cloud enabled

Input voltage: 12V DC, PoE supported

Mount type: Ceiling mount

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10, impact resistant

Operating temperature: -58°F to 140°F

Operating humidity: 95%

Dimensions: 7.10″ diameter, 5.00″ height, 7.00″ width

Color: White

NDAA compliant: Yes

Country of origin: VN

Installation notes

Aim the camera so the IR illuminators are not pointed at nearby walls, soffits or glass, since close reflective surfaces can wash out the night image. Use the motorized lens to fine-tune the field of view from the network once the camera is mounted and powered, and seal the cable entry to keep moisture out.
