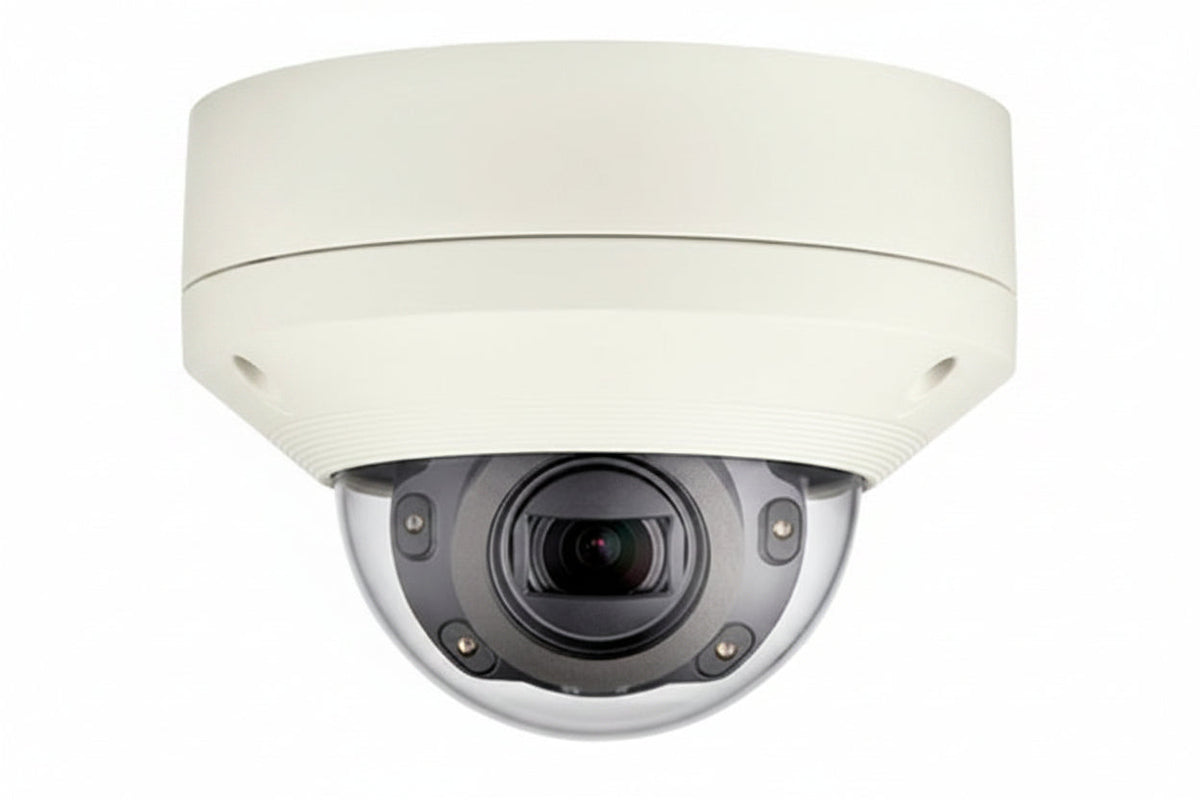

Hanwha XNV-6080R X-Series 2MP Outdoor IR Vandal Dome Camera, 2.8-12mm Varifocal Lens, Ivory

The Hanwha XNV-6080R is a 2MP outdoor IR vandal dome network camera from the X-Series, built for video surveillance where the camera may be exposed to weather or tampering. It suits installers and businesses that need a rugged dome with a motorized 2.8-12mm varifocal lens, so the field of view can be set after mounting. It carries IK10 impact protection, IP66 ingress protection, built-in infrared, and NDAA and TAA compliance.

Key features

• Records up to 1920 x 1080 at up to 60fps, using H.265, H.264 or MJPEG with multiple streams.
• The motorized 4.3x varifocal lens covers 2.8-12mm, so you can fine-tune the view without climbing back up to the camera.
• Day/night operation with 150 dB WDR and defog helps with high-contrast scenes and poor visibility.
• Analytics cover loitering, directional detection, fog detection, audio detection, tampering and motion detection, with digital auto tracking and sound classification.
• The housing is rated IP67/IP66, NEMA 4X and IK10, with infrared viewing out to 50m.
• An SD/SDHC/SDXC slot takes cards up to 512GB for on-camera storage, and WiseStream II is supported.

Specifications

Brand: Hanwha

Model: XNV-6080R

Product Series: X

Product Type: Dome Camera

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Aspect Ratio: 16:9

Maximum Frame Rate: 60fps

Image Sensor Type: CMOS

Lens Type: Varifocal (included)

Focal Length: 2.8-12mm

Maximum Aperture: F1.4

Minimum Aperture: f/3.6

Field of View (Vertical): 62.80°

Minimum Illumination: 0.0015lux

Night Vision: Infrared (IR), 164.04′

Wide Dynamic Range: Yes

Features: Back Light Compensation (BLC)

Storage Type: SD Card

Network (RJ-45): Yes

Connectivity Technology: Wired

Remote Management: Yes

Input Voltage: 12V DC

Mount Type: Corner Mount

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Operating Temperature: -40°F to 131°F

Operating Humidity: 90% RH

Diameter: 6.30″

Height: 4.70″

Color: Ivory

NDAA Compliant: Yes

TAA Compliant: Yes

Installation notes

Mount the camera on a solid surface and seal the cable entry so the weather rating holds up. Use the motorized varifocal lens to set the framing from the ground, and check the view at night to make sure nearby walls or fixtures aren't reflecting the IR illumination back into the lens.
