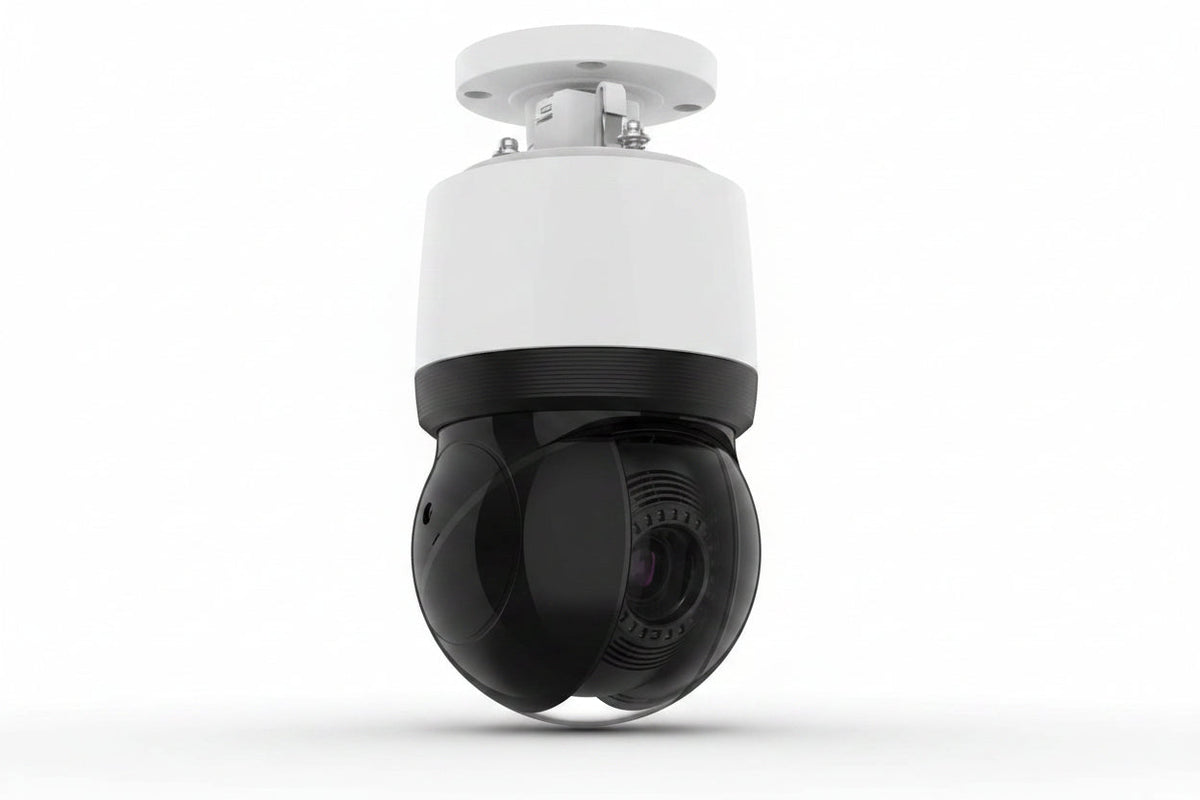

Hanwha XNP-C6403R 2MP PTZ AI Camera, 40x with WSR and DIS, 4.25-170mm Lens

The Hanwha XNP-C6403R is a 2MP PTZ network camera with a 40x optical zoom and built-in infrared night vision. It is built for remote surveillance, where an operator needs to pick out and follow subjects at long range, day or night. The 4.25-170mm varifocal lens and IR reach of up to 656.17 ft stand out, and the camera is IP66 and IK10 rated for outdoor use.

Key features

• The 40x optical zoom and 170mm maximum focal length help you identify and locate objects at a distance.
• Infrared night vision shows objects up to 656.17 ft away without any external light source.
• Full HD recording delivers sharp video, with a maximum aperture of f/1.6 for capture across varying light.
• The CMOS sensor consumes less power while producing HD video.
• The varifocal lens lets you tune the view for dependable surveillance performance.

Specifications

Brand: Hanwha

Model: XNP-C6403R

Product Type: PTZ Network Camera

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1600 x 1200

Maximum Frame Rate: 60fps

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Optical Zoom: 40.0x

Focal Length: 4.25-170mm

Lens Type: Varifocal

Maximum Aperture: f/1.6

Minimum Aperture: f/4.95

Field of View (Horizontal): 65.7°

Field of View (Vertical): 39.40°

Shutter Speed: 1/12000 second to 2 seconds

Night Vision: Infrared (IR), up to 656.17 ft

Wide Dynamic Range: Yes

Video Format: H.264

Recording Format: Full HD

Storage Type: Memory Card

Features: Audio Detection

Connectivity: Wired, Network (RJ-45)

Remote Management: Yes

Cloud Capabilities: Cloud Enabled

Mount Type: Ceiling Mount

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Operating Temperature: -40°F to 122°F

Operating Humidity: 95%

Diameter: 6.20″

Weight: 7.05 lb

Color: Black

Country of Origin: VN

Installation notes

Mount the camera on a solid surface that can carry its 7.05 lb weight, and choose a position with a clear line of sight to the area you want to cover. Run the network cable to the RJ-45 port, seal the connection against moisture, and confirm the view and zoom range during commissioning.
