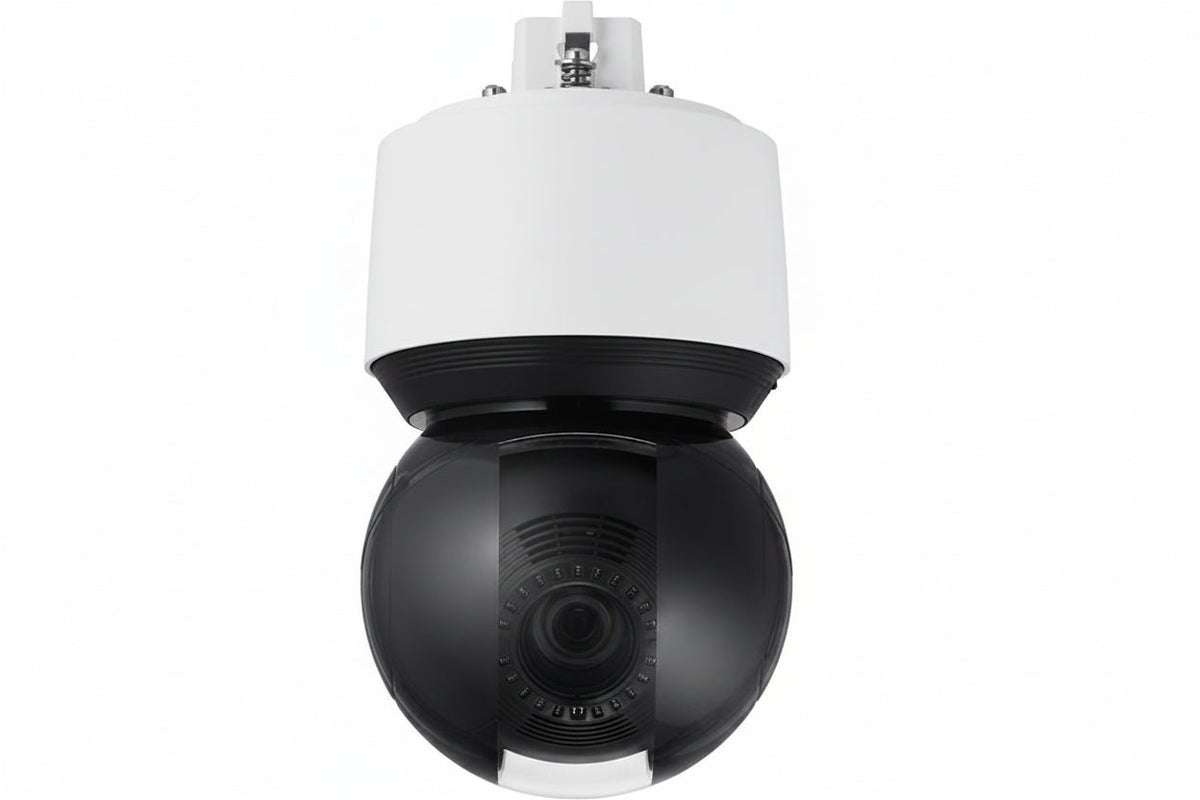

Hanwha XNP-6400 X-Series 2MP PTZ Dome Camera, 40x Optical Zoom Lens, Black/Signal White

The Hanwha XNP-6400 is a 2MP outdoor PTZ network dome camera from the X-Series, built around a 40x optical zoom lens. It handles long-range surveillance with automatic tracking of people and vehicles, and suits installers and businesses covering parking lots, perimeters and other large open areas. Its PTZ PLUS design keeps the housing compact and light, with simpler cabling.

Key features

• The 4.25-170 mm lens gives 40x optical zoom, with an added 32x digital zoom.
• Day/night operation with extreme WDR and a built-in gyro sensor for digital image stabilization.
• Intelligent analytics include automatic tracking of people and vehicles, plus target lock tracking.
• It supports H.264, H.265 and MJPEG compression, along with WiseStreamII.
• The housing is rated IP66, IK10, NEMA 4X and NEMA-TS 2 (2.2.8, 2.2.9) for outdoor use.

Specifications

Brand: Hanwha

Model: XNP-6400

Product series: X

Product type: Network camera, PTZ

Effective resolution: 2MP

Maximum video resolution: 1600 x 1200

Aspect ratio: 16:9

Maximum frame rate: 60fps

Image sensor: CMOS

Lens: Varifocal, included

Focal length: 4.25-170mm

Optical zoom: 40.0x

Aperture: f/1.6 minimum, f/4.95 maximum

Field of view: 65.7° horizontal, 39.40° vertical

Shutter speed: 1/12000 second to 2 seconds

Wide dynamic range: Yes

Night vision: Yes, 656.17′ distance

Video formats: MJPEG

Recording formats: H.264

Storage: SD card

Connectivity: Wired, RJ-45 network

Remote management: Yes

Alarm triggering: Yes

Mount type: Ceiling mount

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Operating temperature: -40°F to 131°F

Operating humidity: 95%

Color: Black

Dimensions: 11.60″ height, 6.20″ diameter

TAA compliant: Yes

NDAA compliant: Yes

Country of origin: VN

Installation notes

Pick a mounting location with a clear view of the area you want covered and a surface that can support a PTZ dome. Seal the cable entry points and test the network connection and tracking behavior on site before final aiming.
