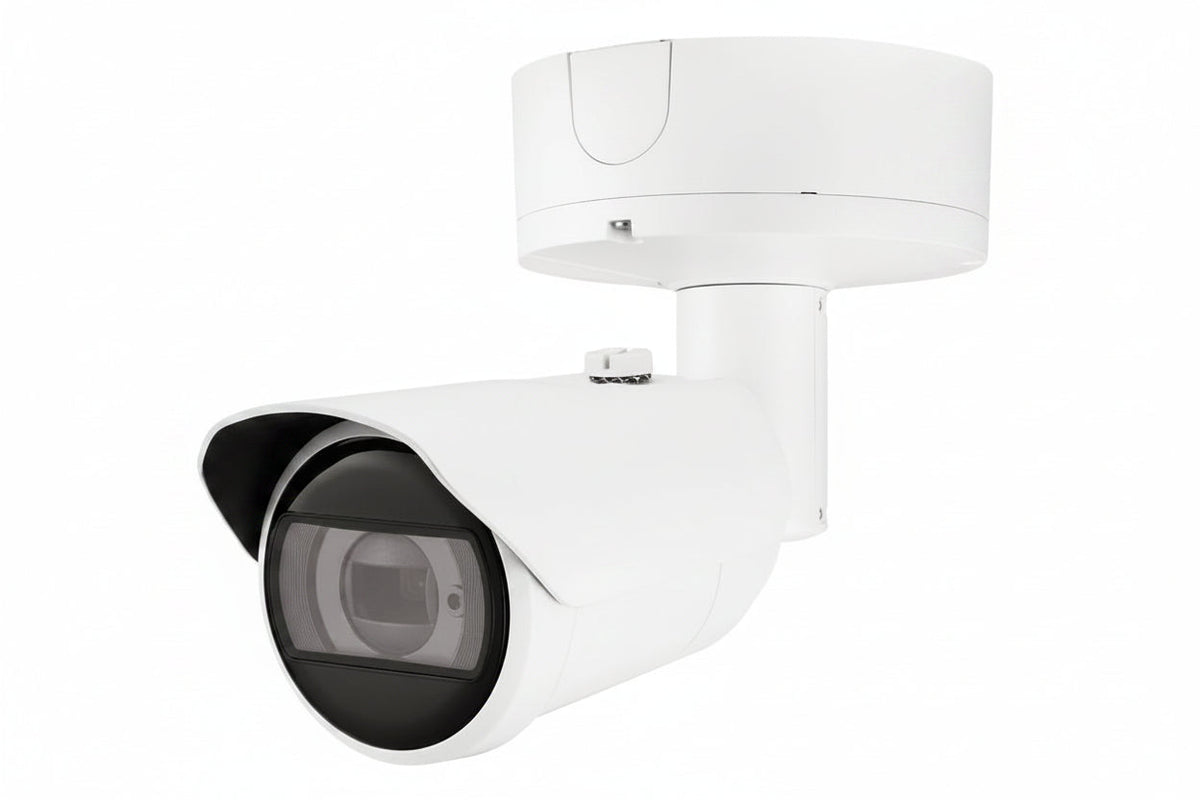

Hanwha XNO-9083R Series 8MP IR Bullet Camera, 4.4-9.3mm Motorized Varifocal Lens, White

The Hanwha XNO-9083R is an 8MP outdoor IR bullet network camera with a 4.4-9.3mm motorized varifocal lens, built for remote surveillance of driveways, perimeters, parking areas and building exteriors. It records up to 3840 x 2160 and sees in the dark out to 164.04 ft with infrared. The IK10 impact rating, IP66 rating and NDAA compliance make it a sensible pick for installers specifying rugged, compliant cameras.

Key features

• Captures 4K video at up to 3840 x 2160 for clear real-time monitoring.
• The varifocal lens covers 4.4-9.3mm with 2.1x optical zoom, so you can tune the view to the scene.
• Infrared night vision reaches 164.04 ft for after-dark coverage.
• An f/1.3 maximum aperture helps it gather light in dim conditions.
• The CMOS sensor delivers HD video while drawing less power.
• Remote management and cloud-enabled operation support off-site viewing.

Specifications

Model: XNO-9083R

Brand: Hanwha

Product Type: Bullet Camera

Product Series: X

Effective Camera Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Maximum Resolution: 1280 x 720

Aspect Ratio: 16:9

Maximum Frame Rate: 30fps

Recording Formats: 4K

Video Formats: H.264

Analog Video Signal Format: CVBS

Image Sensor Type: CMOS

Lens Included: Yes

Lens Type: Varifocal

Focal Length: 4.4-9.3mm

Minimum Focal Length: 4.40mm

Maximum Focal Length: 9.30mm

Optical Zoom: 2.1x

Maximum Aperture: f/1.3

Minimum Aperture: f/2.15

Field of View: Diagonal

Field of View (Horizontal): 112.1°

Field of View (Vertical): 58.00°

Longest Shutter Speed: 1/12000 Second

Shortest Shutter Speed: 2 Second

Minimum Illumination: 0.0040lux

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 164.04'

Features: Audio Detection

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Cloud Capabilities: Cloud Enabled

Storage Type: Memory Card

Input Voltage: 12V DC

Form Factor: Bullet

Mount Type: Wall Mount

Indoor/Outdoor: Outdoor

Durability: Impact Resistant

Impact Protection Rating: IK10

Ingress Protection Rating: IP66

Maximum Operating Temperature: 140°F

Minimum Operating Temperature: -58°F

Operating Humidity: 95% RH (Non-condensing)

NDAA Compliant: Yes

Color: White

Diameter: 3.70″

Weight: 4.85lb

Country of Origin: VN

Installation notes

Mount it on a solid wall surface that can carry the camera's 4.85lb weight, and aim it so IR illumination is not bounced back by nearby walls, soffits or railings. Run a network cable to the RJ-45 port, confirm the 12V DC supply, and fine-tune the zoom and focus from the network interface once the camera is mounted and viewing the scene.
