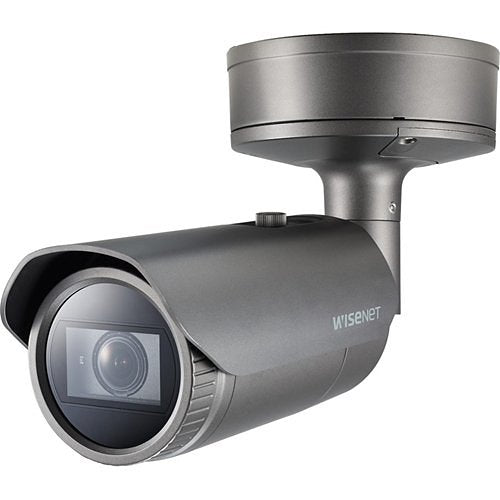

Hanwha XNO-8080R X-Series 5MP IR Bullet Camera, 3.7-9.4mm Varifocal Lens, Gray

The Hanwha XNO-8080R is a 5MP outdoor IR bullet network camera from the X-Series, built for perimeter, building and hallway surveillance. It pairs a 3.7-9.4mm motorized varifocal lens with 50m of infrared range, so you can set the field of view on site and still see in the dark. Its IP67/IP66, NEMA 4X and IK10 ratings, plus NDAA and TAA compliance, make it a solid fit for installers who need a rugged, compliant camera.

Key features

• Captures 5MP (2560 x 1920) video for detailed scenes.
• The 2.5x motorized varifocal lens lets you adjust the view without swapping optics.
• Supports H.265, H.264 and MJPEG with multiple streaming, and WiseStream II for bandwidth control.
• Day & Night (ICR), 120dB WDR and Defog help in difficult lighting and weather.
• Hallway view suits narrow corridors and similar tall, narrow scenes.
• IR reaches 50m, and the housing is rated IP67/IP66, NEMA 4X and IK10.

Specifications

Model: XNO-8080R

Brand: Hanwha

Product Series: X

Product Line: WiseNet

Product Type: Network Camera

Form Factor: Bullet

Color: Gray

Effective Camera Resolution: 5MP

Image Sensor Type: CMOS

Lens Type: Varifocal

Lens Included: Yes

Focal Length: 3.7-9.4mm

Minimum Focal Length: 3.70mm

Maximum Focal Length: 9.40mm

Maximum Aperture: f/1.2

Field of View: Diagonal

Maximum Frame Rate: 30fps

Shortest Shutter Speed: 1/12000 Second

Longest Shutter Speed: 2 Second

Wide Dynamic Range: Yes

Automatic White Balance: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 164.04'

Video Formats: H.264

Recording Formats: HD

Storage Type: Memory Card

Network (RJ-45): Yes

Connectivity Technology: Wired

Remote Management: Yes

Input Voltage: 12V DC

Indoor/Outdoor: Outdoor

Mount Type: Pole Mount

Durability: Impact Resistant

Impact Protection Rating: IK10

Ingress Protection Rating: IP66

Operating Humidity: 90%

Minimum Operating Temperature: -40°F

Maximum Operating Temperature: 131°F

Width: 3.60″

Diameter: 3.60″

Height: 15.20″

Depth: 14.50″

Weight: 4.81lb

TAA Compliant: Yes

NDAA Compliant: Yes

Installation notes

Mount the camera on a solid surface or pole that can support its weight, and aim it so the IR is not pointed at nearby walls or other close reflective surfaces. Power it from a 12V DC source, run the network cable to the RJ-45 port, and fine-tune the zoom and focus from the web interface once the camera is in position.
