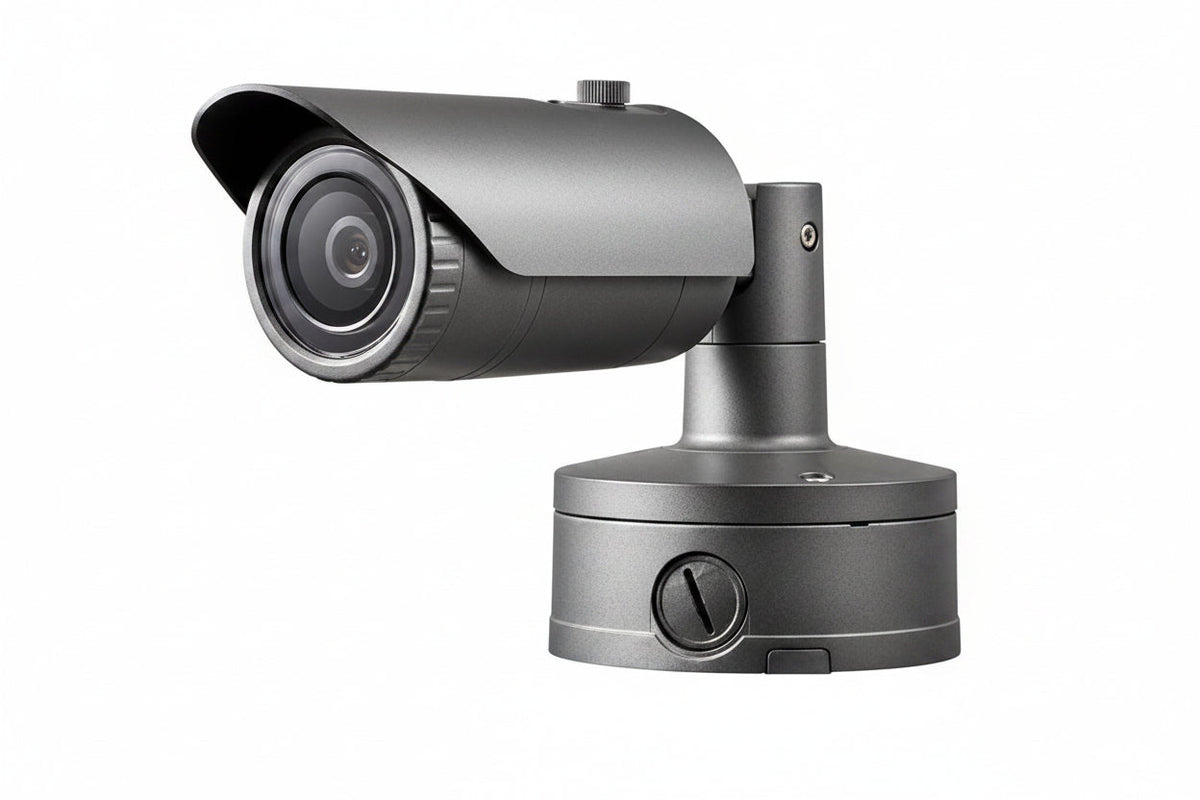

Hanwha XNO-8020R X-Series 5MP IR Bullet Camera, 3.7mm Fixed Lens, Gray

The Hanwha XNO-8020R is a 5MP outdoor IR bullet network camera from the X-Series, with a built-in 3.7 mm fixed lens and a gray housing. It suits installers and businesses that need a vandal-resistant, weatherproof camera for exterior coverage, day or night. Dual SD card slots, WiseStream II compression support and a long list of onboard analytics set it apart.

Key features

• The built-in 3.7 mm fixed lens means there is no lens to select or fit.
• It records at up to 30 fps at all resolutions in H.265 and H.264.
• Onboard analytics include loitering, directional and fog detection, people counting, queue management, heatmap and tampering alerts.
• Dual SD slots take up to 512GB, and WiseStream II is supported.
• Infrared night vision reaches 30 m.
• The housing is rated IP67/IP66, NEMA 4X and IK10 for outdoor and impact-prone locations.

Specifications

Model: XNO-8020R

Brand: Hanwha

Product Series: X

Product Type: Bullet Camera

Color: Gray

Effective Camera Resolution: 5MP

Image Sensor Type: CMOS

Lens Type: Fixed

Focal Length: 3.7mm

Maximum Aperture: f/1.6

Field of View: Diagonal

Maximum Frame Rate: 30fps

Wide Dynamic Range: Yes

Back Light Compensation (BLC): Yes

Minimum Illumination: 0.2000lux

Shortest Shutter Speed: 1/12000 Second

Longest Shutter Speed: 2 Second

Night Vision Type: Infrared (IR)

Night Vision Distance: 98.00'

Storage Type: SD Card

Network (RJ-45): Yes

Connectivity Technology: Wired

Remote Management: Yes

Input Voltage: 12V DC

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Impact Resistant

NDAA Compliant: Yes

Operating Temperature: -22°F to 131°F

Operating Humidity: 90% RH

Length: 11.70″

Diameter: 4.72″

Weight: 2.87lb

Installation notes

Mount the camera on a solid surface and aim it so the fixed lens covers the target area, since the field of view cannot be adjusted by changing the lens. Use weatherproof cable entry and connections for the RJ-45 and 12V DC feeds, and check the picture at night before finishing the install.
