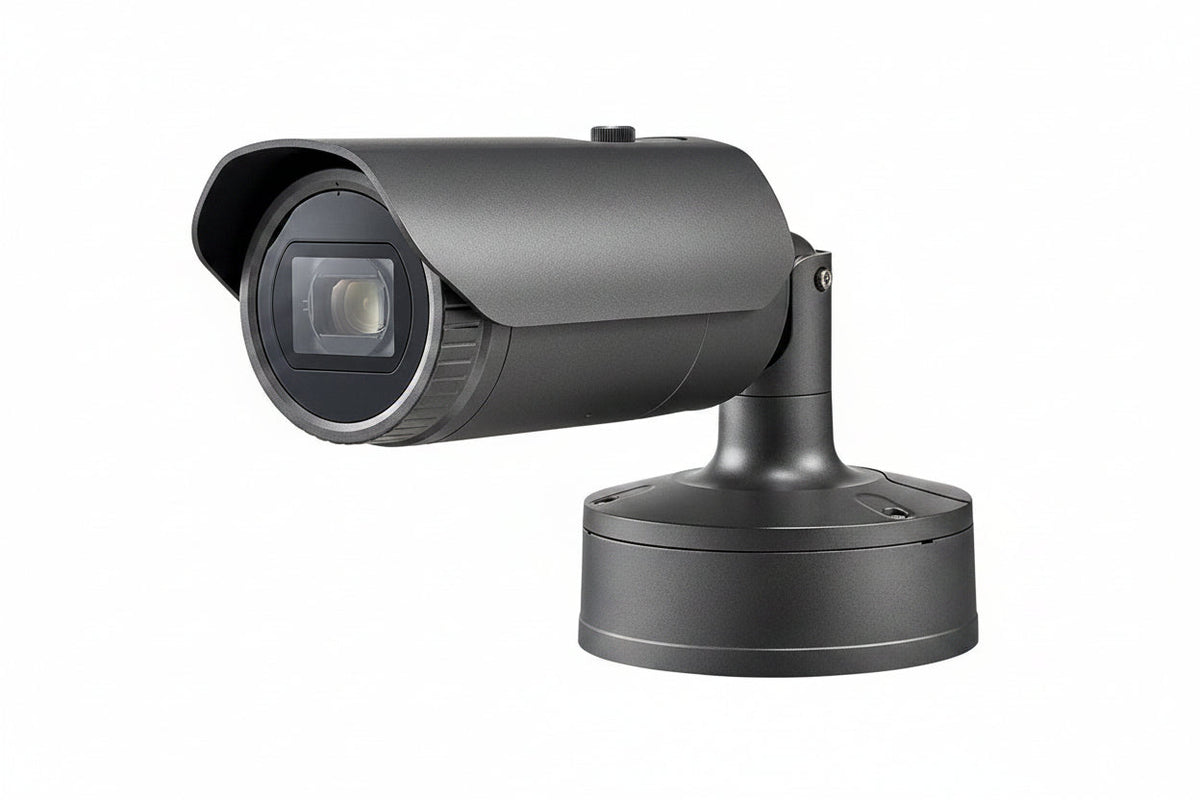

Hanwha XNO-6120R X-Series 2MP 12x Optical Zoom IR Bullet Camera, 5.2-62.4mm Varifocal Lens, Gray

The Hanwha XNO-6120R is a 2MP IR bullet network camera from the X-Series, built around a 12x optical zoom with a 5.2-62.4mm varifocal lens. It suits installers and businesses that need to adjust the field of view on site and still capture detail at distance, backed by 70m of IR range. Its IP66/IP67, NEMA 4X and IK10 ratings, plus WDR up to 150dB, make it a fit for demanding scenes.

Key features

• Records 1920 x 1080 video at up to 60 fps, with H.265, H.264 and MJPEG codecs and multiple streaming.
• The 12x optical zoom covers a field of view from 54.58º wide to 5.30º telephoto.
• Day & Night (ICR), 150dB WDR and Defog help it handle difficult lighting and weather.
• Built-in analytics include loitering, directional, fog and audio detection, digital auto tracking, sound classification, tampering and motion detection.
• An SD/SDHC/SDXC slot accepts cards up to 512GB for onboard storage.
• Hallway view and WiseStream II support are included.

Specifications

Model: XNO-6120R

Brand: Hanwha

Series: X

Form factor: Bullet

Color: Gray

Effective resolution: 2MP

Maximum video resolution: 1920 x 1080

Aspect ratio: 16:9

Image sensor: CMOS

Optical zoom: 12x

Focal length: 5.2-62.4mm

Maximum aperture: f/1.6

Minimum aperture: f/3

Minimum illumination: 0.03 lux

Shutter speed: 1/12000 second to 2 seconds

Maximum frame rate: 60 fps

Night vision: Infrared (IR), 229.66 ft

Wide dynamic range: Yes

Noise reduction: 2D Digital Noise Reduction (2DNR)

Storage: SD card, up to 512GB

Network: RJ-45

Connectivity: Wired

Remote management: Yes

Input voltage: 12V DC

Mount type: Pole mount

Ingress protection: IP66, IP67

Impact protection: IK10

Operating temperature: -40°F to 131°F

Operating humidity: 90% RH

Dimensions: 3.60″ diameter x 14.50″ height

TAA compliant: Yes

NDAA compliant: Yes

Country of origin: KR

Installation notes

Choose a mounting point that gives the camera a clear view of the area and nothing close in front of the IR LEDs, since nearby surfaces can reflect light back into the lens at night. Set the varifocal zoom and focus during commissioning while viewing the live image, and seal the cable entry to keep moisture out.
