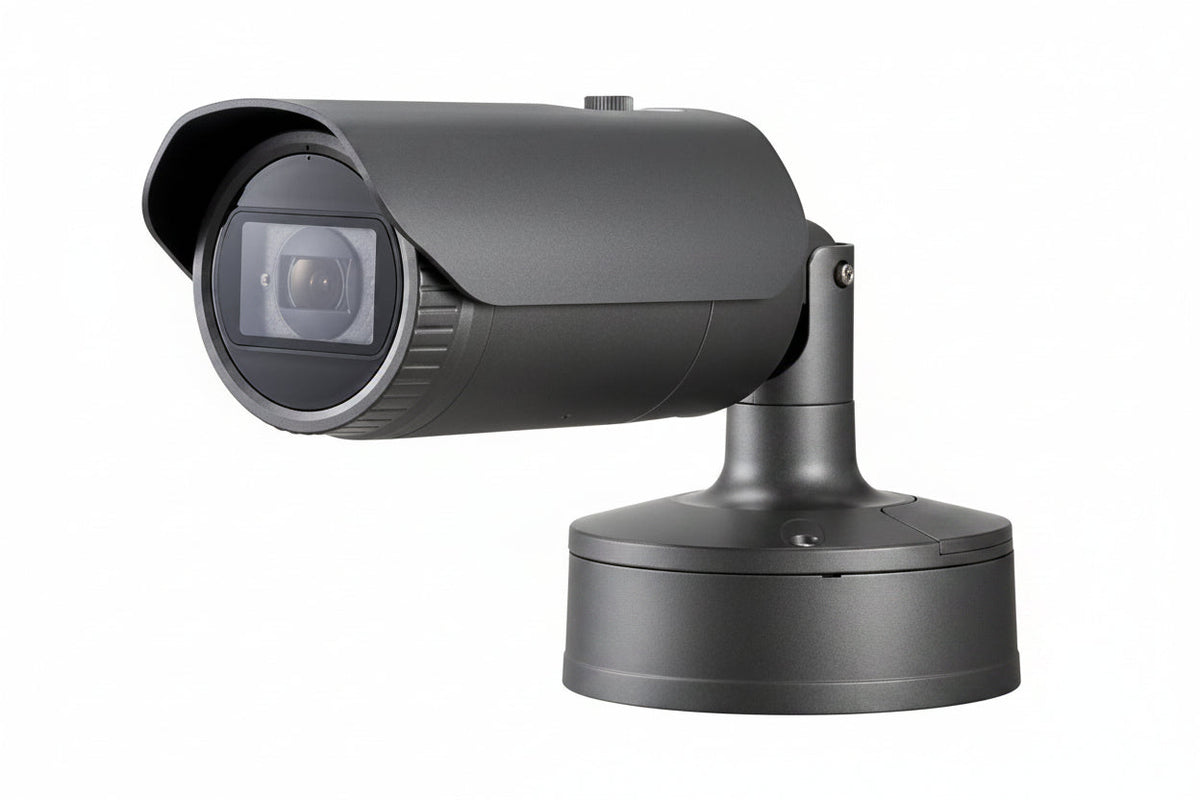

Hanwha XNO-6080R X-Series 2MP IR Bullet Camera, 2.8-12mm Varifocal Lens, Gray

The Hanwha XNO-6080R is a 2MP outdoor IR bullet network camera from the X-Series, built to cover driveways, perimeters, parking areas and building exteriors in full HD. Its motorized 2.8-12mm varifocal lens lets you set the field of view after mounting, and 50m of IR range, 150dB WDR and an IK10 impact rating make it a fit for installers and businesses watching exposed, high-contrast scenes. It is NDAA compliant and records locally to an SD card of up to 512GB.

Key features

• The 4.3x motorized varifocal lens (2.8-12mm) lets you adjust zoom and focus remotely instead of re-aiming on a ladder.
• It captures up to 2MP (1920 x 1080) at up to 60 fps, with H.265, H.264 and MJPEG codecs and multiple streaming.
• Day and night operation with an ICR, 150dB WDR and defog helps in backlit, low-light and hazy conditions.
• Built-in analytics include loitering, directional, fog and audio detection, digital auto tracking, sound classification, tampering and motion detection.
• The SD/SDHC/SDXC slot takes cards up to 512GB, and WiseStream II support is included.
• The housing is rated IP67/IP66 and NEMA 4X, with IK10 impact resistance for outdoor use.

Specifications

Brand: Hanwha

Model: XNO-6080R

Product series: X

Form factor: Bullet

Color: Gray

Effective resolution: 2MP

Maximum video resolution: 1920 x 1080

Aspect ratio: 16:9

Maximum frame rate: 60fps

Image sensor: CMOS

Lens type: Varifocal, included

Focal length: 2.8-12mm

Maximum aperture: f/1.4

Iris type: DC auto iris

Field of view (vertical): 62.80°

Minimum illumination: 0.0150 lux

Shutter speed: 1/12000 second to 2 seconds

Night vision: Infrared (IR), 164.04′

Wide dynamic range: Yes

Backlight compensation: Yes

Storage: SD card

Network: RJ-45, wired

Remote management: Yes

Input voltage: 12V DC

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Mount type: Pole mount

Operating temperature: -40°F to 131°F

Operating humidity: 90% RH

Height: 14.50″

Width: 3.60″

Diameter: 3.60″

Weight: 4.80 lb

NDAA compliant: Yes

Installation notes

Choose a mounting surface or pole that can carry the camera's weight, and point it so the IR illuminator is not aimed at a nearby wall or soffit that could reflect light back into the lens. Because the lens is motorized, aim the camera first, then set zoom and focus from the web interface once it is powered and on the network, and seal the cable entry to protect the outdoor rating.
