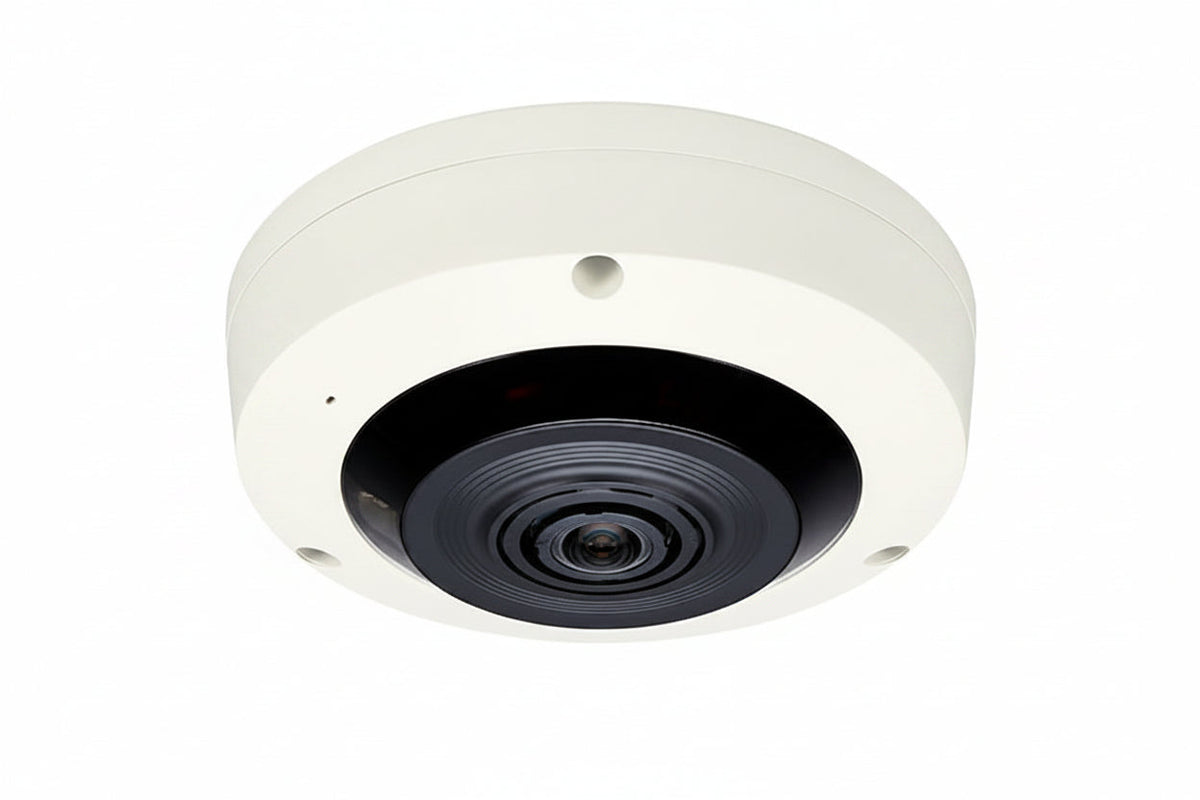

Hanwha XNF-8010R X-Series 6MP IR Indoor Fisheye Camera, 1.6mm Fixed Lens, Ivory

The Hanwha XNF-8010R is an indoor 6MP fisheye network camera from the X Series, built to cover an entire room from a single ceiling-mounted position. Its 1.6mm fixed fisheye lens, built-in IR and 120 dB WDR suit businesses and facilities that want wide coverage in both bright and dark spaces. Onboard analytics such as people counting, heatmaps and queue management, plus dual SD card slots, make it useful for retail and similar sites.

Key features

• Records 2048 x 2048 video at 30fps from a 6MP sensor.
• The 1.6mm fisheye lens covers 192° x 192° and has simple focus.
• Built-in IR lights the scene up to 49' (15m) in low light.
• H.265, H.264 and MJPEG codecs are supported, along with WiseStream II compression.
• Detection tools include loitering, directional, fog, tampering, motion, and object enter or exit an area.
• Sound classification, heatmap, people counting and queue line management are built in.

Specifications

Model: XNF-8010R

Brand: Hanwha Vision

Series: X

Product type: Network Camera

Form factor: Fisheye

Effective resolution: 6MP

Image sensor: CMOS, 1 sensor

Focal length: 1.6mm fixed

Maximum aperture: f/1.6

Field of view: Diagonal (192° x 192°)

Maximum frame rate: 30fps

Wide dynamic range: Yes, 120 dB

Back light compensation: Yes

Shutter speed: 1/12000 second to 2 seconds

Night vision: Infrared (IR), 49.21'

Video codecs: H.265, H.264, MJPEG

Storage: SD card (dual slots)

Network: RJ-45, wired

Remote management: Yes

Input voltage: 12V DC

Mount type: Ceiling mount

Indoor/outdoor: Indoor

Durability: Vandal resistant

Ingress protection: IP66

Operating temperature: 14°F to 131°F

Operating humidity: 90%

Diameter: 5.70″

Height: 2.20″

Color: White (Ivory)

NDAA compliant: Yes

Country of origin: KR

Installation notes

Mount the camera at the center of the area on a ceiling, where the fisheye view can cover the room evenly, and keep it clear of obstructions that would block the lens. Confirm the 12V DC supply and the network run before mounting, and check that the SD cards are installed and recording during commissioning.
