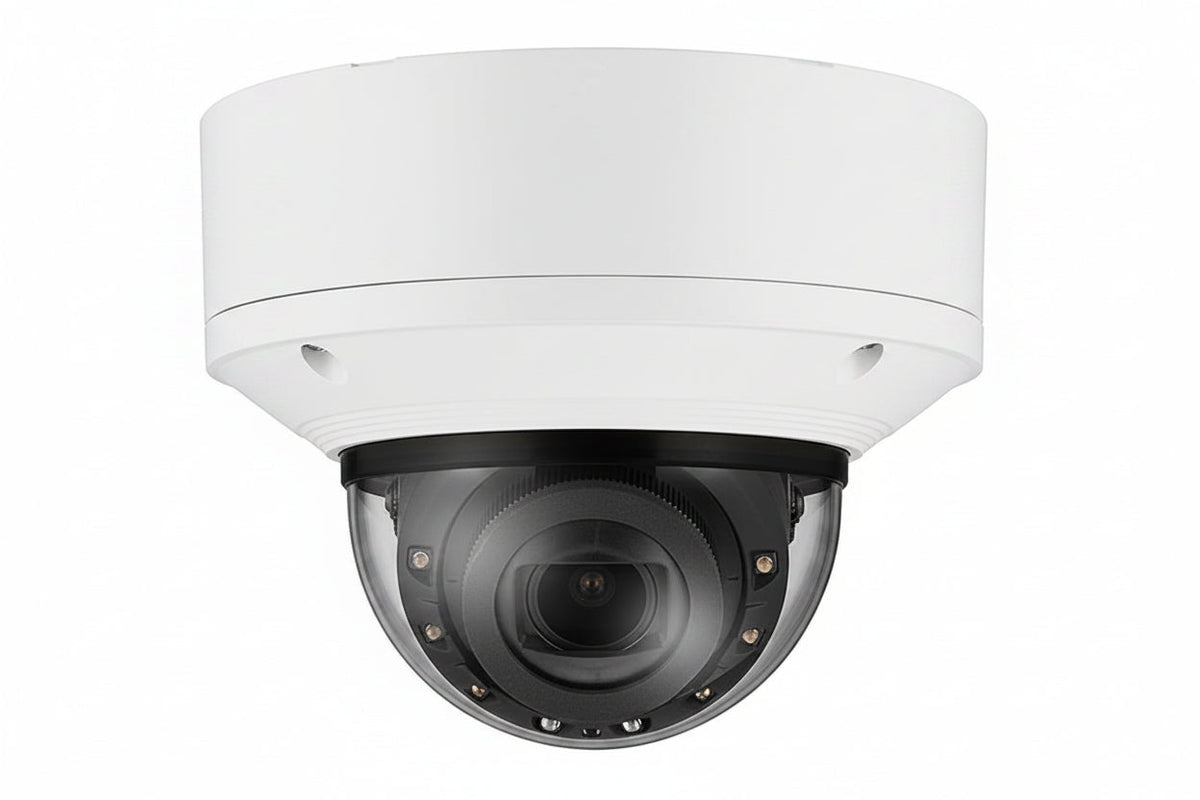

Hanwha XND-C6083RV Series 2MP Indoor IR Vandal Dome Camera, 2.8-12mm Motorized Varifocal Lens, White

The Hanwha XND-C6083RV is a 2MP indoor vandal dome network camera with a 2.8-12mm motorized varifocal lens and built-in infrared night vision. It suits businesses and installers who need a tamper-resistant camera for interior spaces such as lobbies, corridors and retail floors. Standouts include an IK10 impact rating, up to 131.23 ft of IR range and NDAA compliance.

Key features

• Records Full HD video at up to 1920 x 1080 from a CMOS sensor.
• The 2.8-12mm varifocal lens gives 4.3x optical zoom, so you can tune the view to the scene.
• An f/1.4 maximum aperture helps produce sharp, detailed images.
• Infrared night vision reaches up to 131.23 ft, picking up detail that the eye cannot see in the dark.
• The vandal-resistant dome housing carries an IK10 impact rating.
• Wide dynamic range, audio detection and remote management are included.

Specifications

Model: XND-C6083RV

Brand: Hanwha

Product Type: Dome Camera

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Maximum Resolution: 1280 x 720

Aspect Ratio: 16:9

Maximum Frame Rate: 60fps

Image Sensor Type: CMOS

Video Format: H.264

Recording Format: Full HD

Lens Type: Varifocal

Lens Included: Yes

Focal Length: 2.8-12mm

Minimum Focal Length: 2.80mm

Maximum Focal Length: 12.00mm

Maximum Aperture: F1.4

Minimum Aperture: f/3.6

Iris Type: DC Auto Iris

Field of View: Diagonal

Field of View (Vertical): 62.80°

Minimum Illumination: 0.0020lux

Longest Shutter Speed: 1/12000 Second

Shortest Shutter Speed: 2 Second

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 131.23 ft

Features: Audio Detection

Form Factor: Dome

Mount Type: Pendant Mount

Indoor/Outdoor: Indoor

Impact Protection Rating: IK10

Ingress Protection Rating: IP52

Durability: Dust Resistant

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Cloud Capabilities: Cloud Enabled

Storage Type: Memory Card

Input Voltage: 12V DC

Minimum Operating Temperature: 14°F

Maximum Operating Temperature: 122°F

Operating Humidity: 95% RH (Non-condensing)

Diameter: 6.30″

Weight: 2.98lb

Color: White

Product Series: X

NDAA Compliant: Yes

Installation notes

Mount the camera on a solid surface or pendant mount rated for its 2.98lb weight, and keep it indoors since it is not specified for outdoor use. Use a 12V DC supply and a wired RJ-45 network run, then adjust the motorized varifocal lens remotely once the camera is online to set the final framing and focus.
