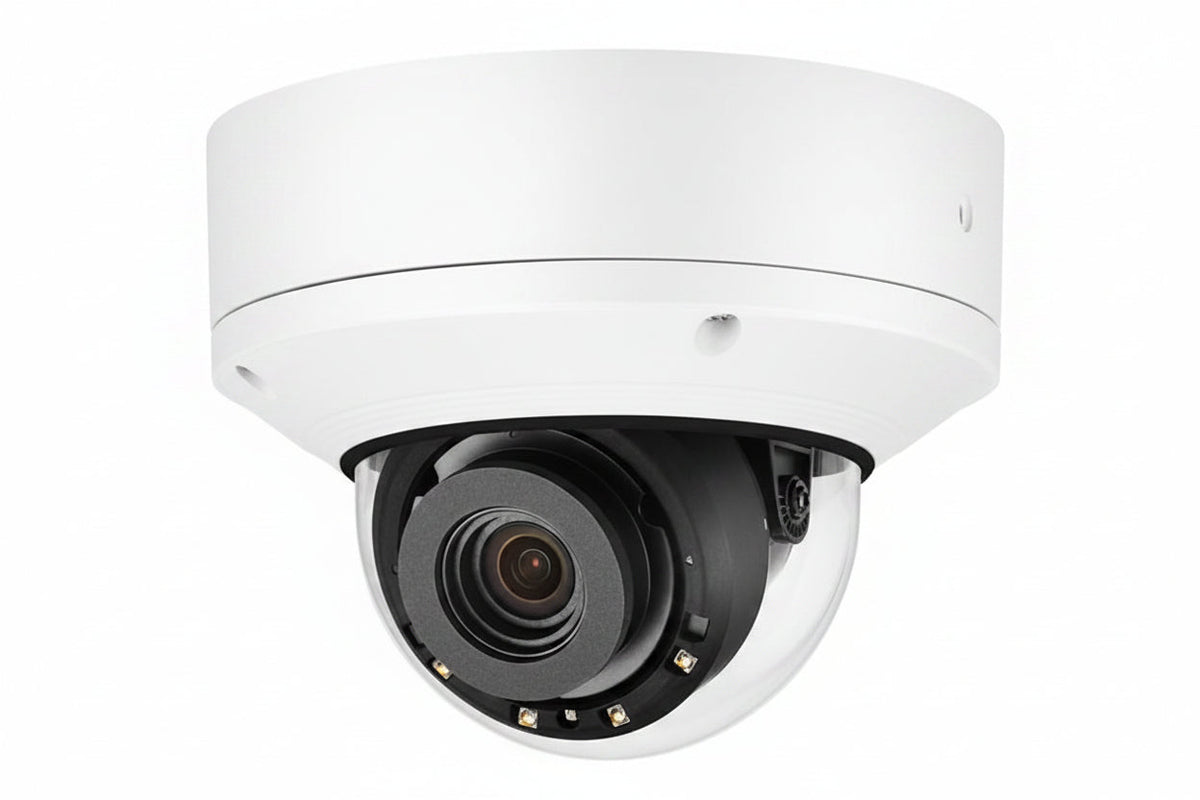

Hanwha XND-8082RV X-Series 6MP Vandal IR IP Dome Camera, 2.8-8.4mm Varifocal Lens, Signal White

The Hanwha XND-8082RV is a 6MP vandal-resistant IR dome network camera from the X-Series, built for outdoor video surveillance in businesses and commercial sites. A motorized 2.8-8.4mm varifocal lens lets an installer set the field of view without leaving the ladder, and the 40m IR range covers low-light and no-light scenes. Onboard analytics, dual SD card slots and NDAA and TAA compliance make it a practical choice for projects with procurement requirements.

Key features

• Records up to 30fps at 6MP in H.265 or H.264.
• The 3x motorized varifocal lens covers 2.8-8.4mm.
• Extreme WDR (120dB) and Day & Night (ICR) operation help in difficult lighting.
• Built-in analytics cover defocus, directional, audio, shock, and face and upper body detection.
• Dual SD slots accept cards up to 512GB for onboard recording.
• DIS with a built-in gyro sensor, a modular structure and PoE support.

Specifications

Model: XND-8082RV

Brand: Hanwha

Series: X

Product type: Network Camera

Form factor: Dome

Effective resolution: 6MP

Image sensor: CMOS

Lens type: Varifocal, included

Focal length: 2.8-8.4mm

Optical zoom: 3.0x

Aperture: f/1.2 to f/2.8

Field of view (horizontal): 114.0°

Field of view (vertical): 62.00°

Maximum frame rate: 30fps

Shutter speed: 1/5 second to 1/12000 second

Night vision: Yes, 131.23'

Wide dynamic range: Yes

Video format: H.264

Network: RJ-45

Input voltage: 12V DC

Mount type: Backbox Mount

Indoor/Outdoor: Outdoor

Impact protection rating: IK10

Ingress protection rating: IP52

Operating temperature: -13°F to 140°F

Operating humidity: 95%

Diameter: 6.30″

Weight: 3.53lb

Color: White

Remote management: Yes

Cloud capabilities: Cloud Enabled

NDAA compliant: Yes

TAA compliant: Yes

Installation notes

Mount the camera on a solid backbox and plan the cable route before drilling, keeping the Ethernet run protected where it enters the housing. Power it over PoE or from a 12V DC supply, then set the zoom and focus from the network once the camera is aimed so you can check the framing at the viewing distance you need.
