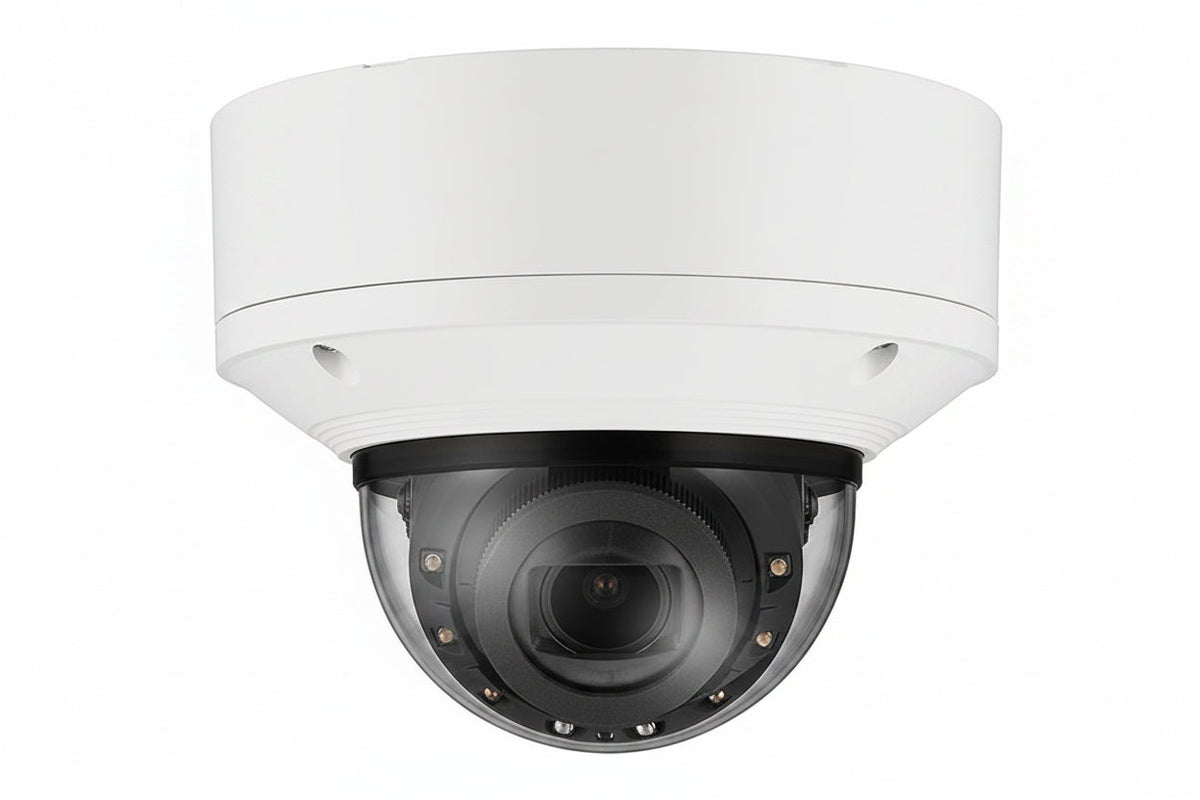

Hanwha XND-6083RV 2MP AI IR Indoor Vandal Dome Camera, 2.8-12mm Motorized Varifocal Lens, IP52, IK10

The Hanwha XND-6083RV is a 2MP indoor vandal dome network camera for remote surveillance. It pairs a 2.8-12mm motorized varifocal lens with infrared night vision reaching 164.04 ft, so one model can cover different mounting heights and viewing distances. The IK10 impact rating and IP52 ingress rating suit installers and businesses who need a tamper-resistant camera in indoor spaces, and it is both NDAA and TAA compliant.

Key features

• Records up to 1920 x 1080 for real-time Full HD surveillance.
• The varifocal lens lets you adjust coverage on site, with a 12 mm maximum focal length for identification distances.
• A 4.3x optical zoom and an f/1.4 maximum aperture help you get a clear image across different lighting conditions.
• Infrared night vision reaches 164.04 ft and uses very little electrical power.
• The CMOS sensor consumes less power than CCD while producing HD video.

Specifications

Model: XND-6083RV

Brand: Hanwha

Product type: Dome Camera

Effective camera resolution: 2MP

Maximum video resolution: 1920 x 1080

Maximum resolution: 1280 x 720

Aspect ratio: 16:9

Maximum frame rate: 120fps

Image sensor type: CMOS

Focal length: 2.8-12mm

Minimum focal length: 2.80mm

Maximum focal length: 12.00mm

Lens type: Varifocal

Lens included: Yes

Maximum aperture: F1.4

Minimum aperture: f/3.6

Field of view: Diagonal

Field of view (vertical): 62.80°

Minimum illumination: 0.0040lux

Longest shutter speed: 1/12000 Second

Shortest shutter speed: 2 Second

Wide dynamic range: Yes

Night vision: Yes

Night vision type: Infrared (IR)

Night vision distance: 164.04 ft

Recording formats: Full HD

Video formats: H.264

Video signal format: CVBS (Composite)

Analog video signal format: CVBS

Features: Audio Detection

Storage type: Memory Card

Connectivity technology: Wired

Network (RJ-45): Yes

Remote management: Yes

Form factor: Dome

Indoor/outdoor: Indoor

Ingress protection rating: IP52

Impact protection rating: IK10

Durability: Dust Resistant

Input voltage: 12V DC

Minimum operating temperature: -13°F

Maximum operating temperature: 122°F

Operating humidity: 95% RH (Non-condensing)

Color: White

Diameter: 6.30″

Weight: 3.53lb

TAA compliant: Yes

NDAA compliant: Yes

Country of origin: VN

Installation notes

Mount the camera on a solid surface in an indoor location, and keep it clear of heat sources and condensing humidity. Run network cabling to the RJ-45 port, confirm a 12V DC supply, and set the varifocal lens to the framing you need during commissioning.
