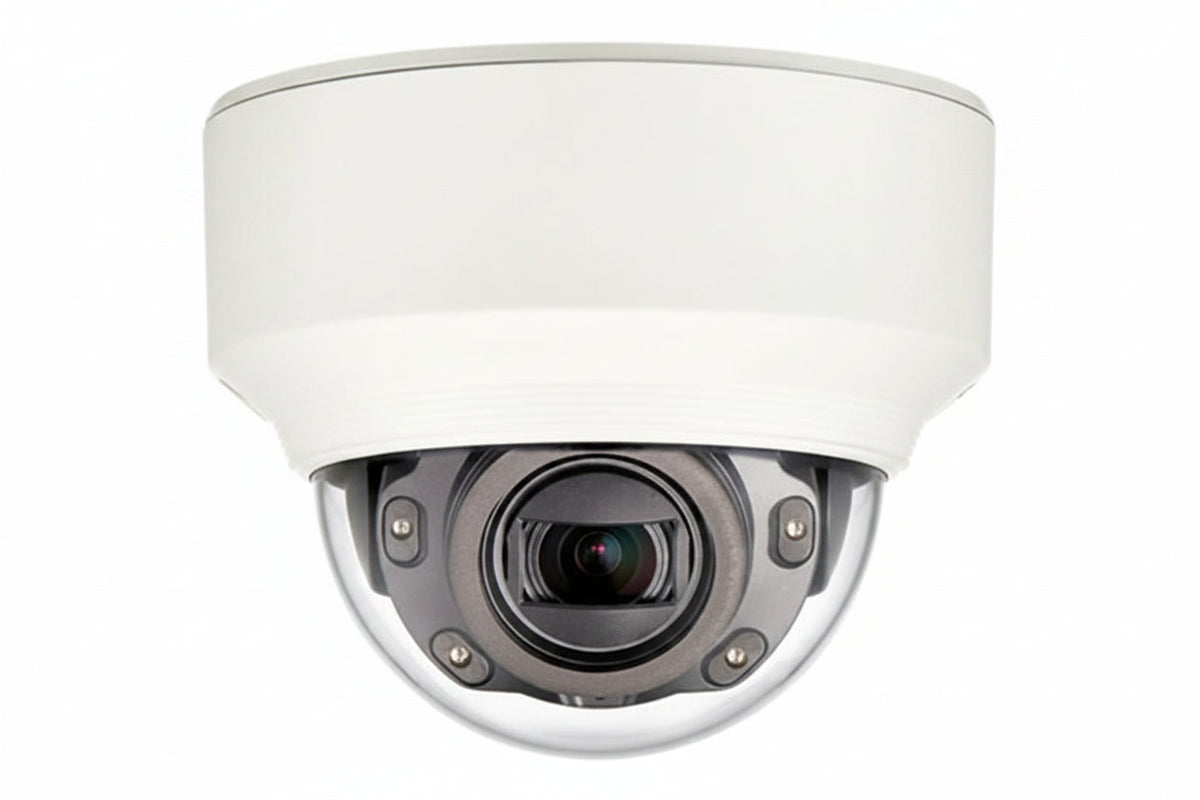

Hanwha XND-6080RV X-Series 2MP IR Indoor Vandal Dome Camera, 2.8-12mm Varifocal Lens, White (Replaces XND-6080RV/VWF)

The Hanwha XND-6080RV/KME is a 2MP indoor IR dome IP camera from the X-Series, built with an IK08 impact-resistant housing and a motorized 2.8-12mm varifocal lens. It suits installers and businesses that need a vandal-resistant ceiling-mount camera with adjustable framing and night coverage. Standouts are 60 fps at all resolutions, 150dB WDR and dual microSD slots for onboard storage.

Key features

• The motorized 2.8 to 12 mm varifocal lens (4.3x) lets you set the field of view without a ladder trip to adjust it by hand.
• It delivers 60 fps at every resolution in H.265 or H.264, with MJPEG and multiple streaming also supported.
• Day/night operation with an ICR, 150dB WDR and defog helps keep the picture usable in mixed lighting and poor visibility.
• Built-in analytics cover loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering, motion detection and handover.
• Two microSD/SDHC/SDXC slots provide up to 512GB of total onboard storage.
• Infrared illumination reaches 30m, and WiseStream II and a hallway view mode are supported.

Specifications

Brand: Hanwha

Model: XND-6080RV/KME

Series: X

Product type: Network Camera

Resolution: 2MP (1920 x 1080)

Aspect ratio: 16:9

Image sensor: CMOS

Lens: 2.8-12mm motorized varifocal, included

Aperture: f/1.4 to f/3.6

Maximum frame rate: 60fps

Shutter speed: 1/12000 second to 2 seconds

Video formats: H.265, H.264, MJPEG

Wide dynamic range: Yes (150dB)

Back light compensation: Yes

Night vision: Infrared (IR), 98.43′ (30m)

Form factor: Dome

Mount type: Ceiling mount

Impact protection: IK08

Storage: Dual microSD/SDHC/SDXC slots, 512GB total maximum

Network: RJ-45, wired

Remote management: Yes

Input voltage: 12V DC

Operating temperature: 14°F to 131°F

Operating humidity: 90%

Color: White

Height: 4.40″

Diameter: 5.50″

Weight: 1.60 lb

TAA compliant: Yes

Country of origin: KR

Package contents: 2 MP Network IR Dome Camera; single gang plate; double gang; 4″ octagon; 4″ square

Installation notes

Mount the camera on a ceiling location suited to its indoor rating and confirm the power source supplies 12V DC before connecting. Use the motorized varifocal lens to set the view during commissioning, and check the IR coverage at night so nothing reflective sits close to the dome.
