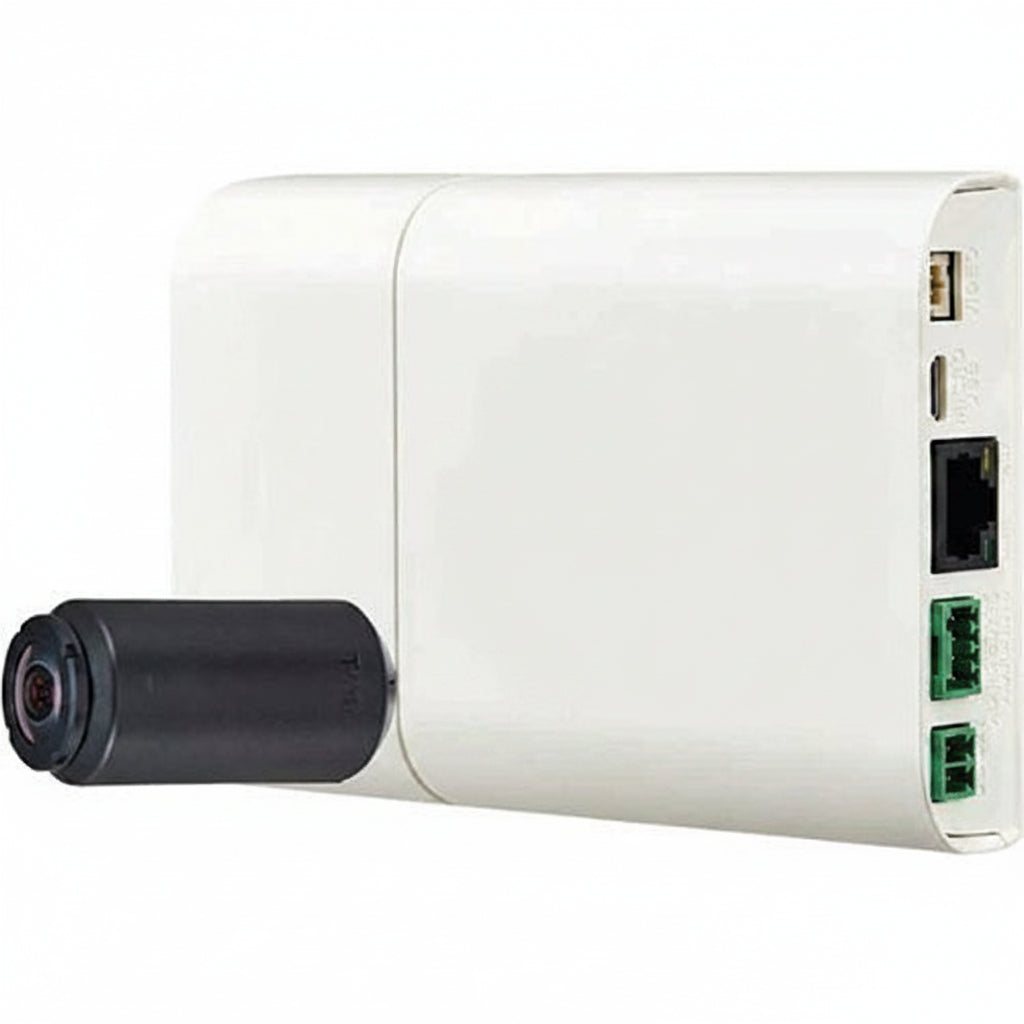

Hanwha XNB-H6241A X-Series 2MP ATM IP Camera Kit with 8m Cable, 2.4mm Fixed Lens, Ivory

The Hanwha XNB-H6241A is an X-Series 2MP network camera kit built for ATM monitoring, with an 8m cable and an ATM mount bracket (SBU-200) included. It suits installers and businesses that need a covert, wired camera for ATM surveillance. The 2.4mm fixed lens gives a 138° horizontal view, and 120dB WDR helps with scenes that mix bright and dark areas.

Key features

• Records up to 2MP (1920 x 1080) at up to 60 fps with H.265 and H.264, plus MJPEG and multiple streaming.
• WDR (120dB) helps with difficult lighting.
• Built-in analytics, Hallway View and WiseStreamII are supported.
• An SD/SDHC/SDXC slot takes cards up to 256GB for onboard storage.
• Powers over PoE or 12V DC, and supports bi-directional audio and LDC.
• The ATM mount bracket (SBU-200) is included.

Specifications

Model: XNB-H6241A

Brand: Hanwha

Product series: X

Product type: Network camera

Color: Ivory

Form factor: Covert

Mount type: Bracket mount

Image sensor: CMOS

Maximum video resolution: 1945 x 1109

Aspect ratio: 16:9

Graphics mode: Full HD

Maximum frame rate: 60fps

Video formats: MJPEG

Recording formats: H.264

Lens type: Fixed

Focal length: 2.4mm

Maximum aperture: f/2

Field of view: Diagonal

Field of view (horizontal): 138.0°

Field of view (vertical): 73.00°

Shutter speed: 1/12000 second to 2 seconds

Minimum illumination: 0.4500 lux

Wide dynamic range: Yes

Features: Alarm triggering

Storage type: SD card

Connectivity: Wired, Network (RJ-45)

Remote management: Yes

Input voltage: 12V DC

Operating temperature: 14°F to 131°F

Operating humidity: 90% RH

Height: 1.10″

Depth: 3.39″

NDAA compliant: Yes

Country of origin: KR

Package contents: XNB-H6241A 2MP Network ATM Camera Kit (8m cable), ATM mount bracket

Installation notes

Mount the camera with the supplied bracket and confirm the view covers the ATM area before fixing everything in place. Check the 8m cable run to the network and power source before you start, and test the image and recording to the SD card once the camera is commissioned.
