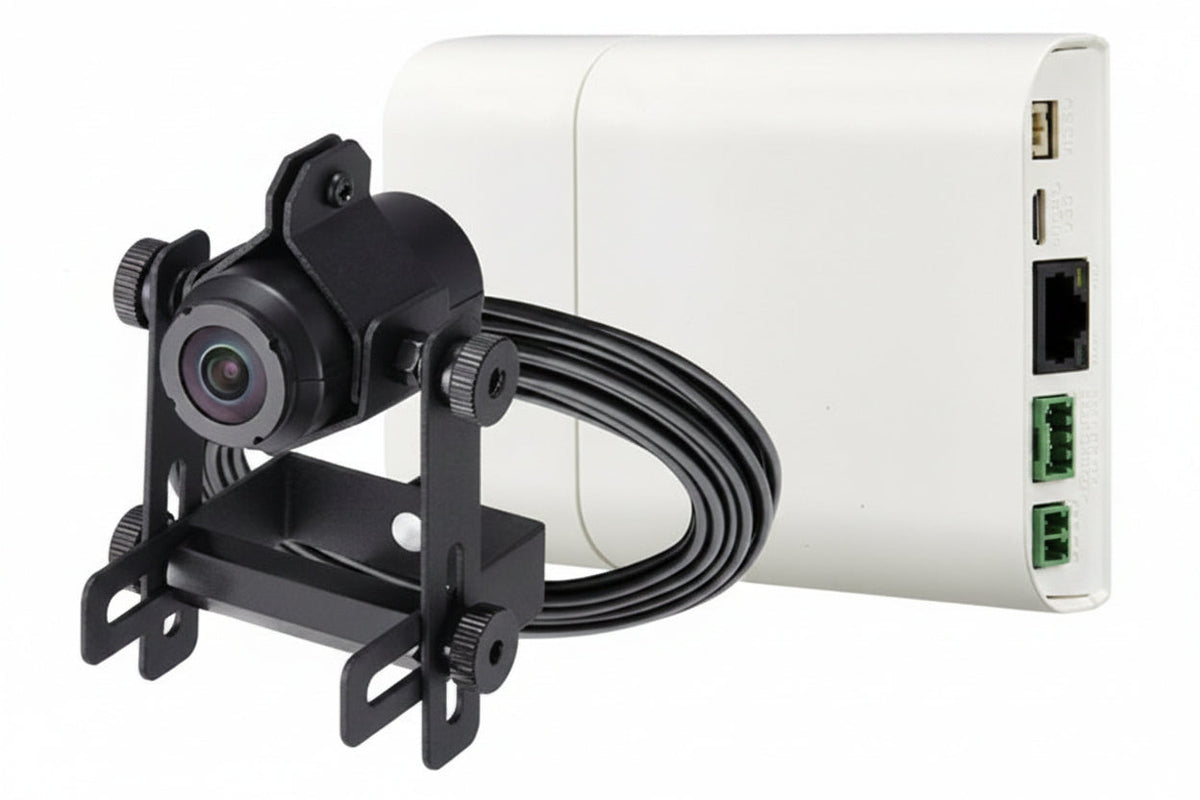

Hanwha XNB-H6240A X-Series 2MP Network ATM Camera Kit with 1.5m Cable, 2.4mm Fixed Lens, Ivory

The Hanwha XNB-H6240A is a 2MP network ATM camera kit from the X-Series, built to monitor ATM installations. It pairs an XNB-6001 main unit with an SLA-T2480 lens and ships with the SBU-200 ATM mount bracket and a 1.5m cable. It suits installers and financial-site operators who want a complete, NDAA-compliant ATM camera with WDR, onboard analytics and local SD card recording.

Key features

• Captures 1920 x 1080 video at up to 60 fps in H.265 or H.264, with MJPEG and multiple streaming also supported.
• 120dB WDR helps balance bright and dark areas in the same scene.
• Built-in analytics, Hallway View, WiseStreamII and LDC are supported.
• An SD, SDHC or SDXC slot takes cards up to 256GB for local storage.
• Runs on PoE or 12V DC, and supports bi-directional audio.
• The SBU-200 ATM mount bracket is included, along with the XNB-6001 main unit and SLA-T2480 lens.

Specifications

Model: XNB-H6240A

Brand: Hanwha

Product series: X

Product type: Network Camera

Effective resolution: 2MP (1920 x 1080)

Aspect ratio: 16:9

Image sensor: CMOS

Maximum frame rate: 60fps

Lens: 2.4mm fixed, included

Maximum aperture: f/2

Field of view: Diagonal

Minimum illumination: 0.5000 lux

Shutter speed: 1/12000 second to 2 seconds

Wide dynamic range: Yes (120dB)

Video codecs: H.265, H.264, MJPEG

Storage: SD/SDHC/SDXC, up to 256GB

Network: RJ-45, wired

Power: PoE / 12V DC

Remote management: Yes

Mount type: Box mount

Indoor/Outdoor: Outdoor

Color: White

Dimensions (H x W x D): 1.10″ x 5.20″ x 3.40″

NDAA compliant: Yes

Country of origin: KR

Installation notes

Mount the camera on the supplied SBU-200 bracket and confirm the lens has a clear, unobstructed view of the area you need to cover before tightening everything down. Decide on PoE or 12V DC power before pulling cable, and check the view and exposure on site after commissioning.
