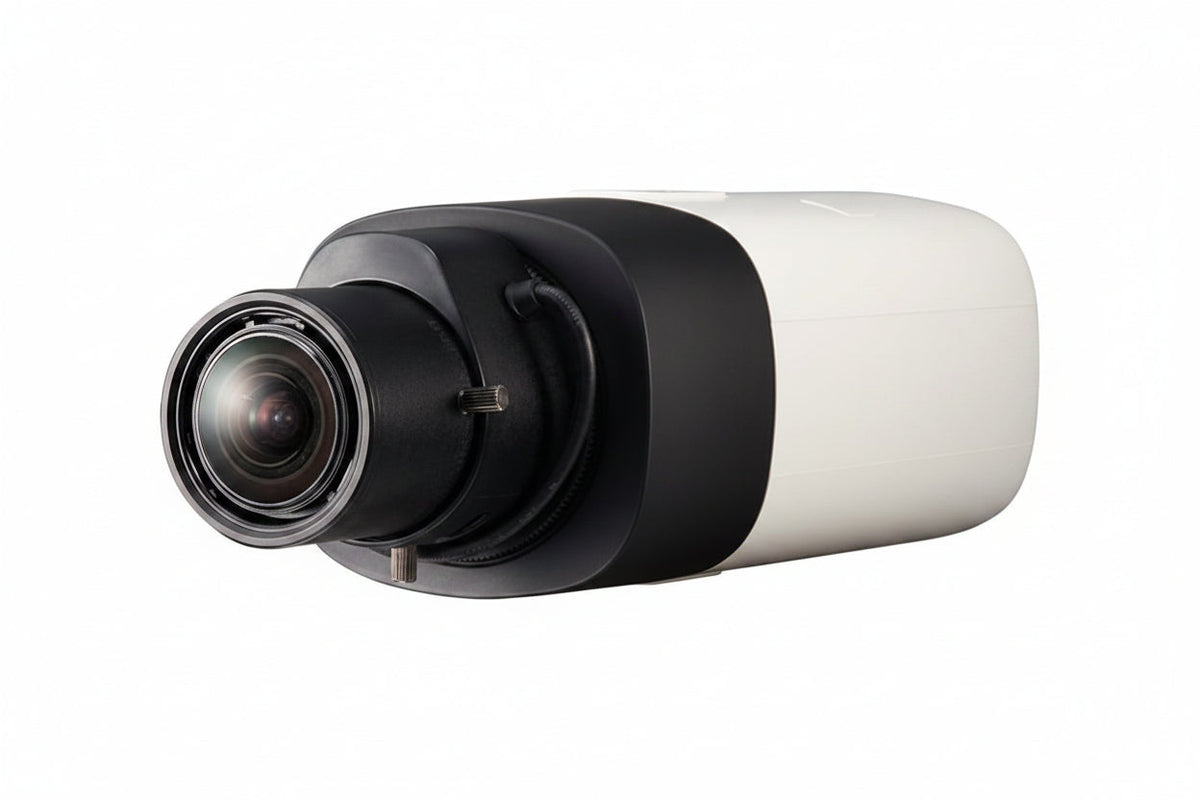

Hanwha XNB-6000 X-Series 2MP IP Box Camera, Lens Not Included, Black/Ivory

The Hanwha XNB-6000 is a 2MP wired IP box camera for outdoor video surveillance. It takes a C-Mount lens that is sold separately, so installers can match the field of view to the scene. It suits businesses and installers who want Full HD at up to 60 fps, 150dB wide dynamic range and onboard analytics in a TAA and NDAA compliant camera.

Key features

• Records up to 2MP (1920 x 1080) at up to 60 fps in H.265 and H.264, with MJPEG and multiple streaming also supported.
• Rated 0.01 lux in color and 0.001 lux in black and white at F1.2, with Day and Night (ICR) operation.
• Combines 150dB WDR, P-Iris and Defog to help with difficult lighting and weather.
• Built-in gyro sensor provides digital image stabilization.
• Analytics cover loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering, motion detection and handover.
• Has an SD/SDHC/SDXC card slot for up to 512GB and supports WiseStream II.

Specifications

Brand: Hanwha

Model: XNB-6000

Product series: X

Product type: Network Camera

Effective resolution: 2MP

Maximum video resolution: 1920 x 1080

Maximum frame rate: 60fps

Image sensor: CMOS, 1 sensor

Lens mount: C-Mount (lens not included)

Mount type: Box Mount

Minimum illumination: 0.0010lux

Night vision: NIR Active Illumination

Wide dynamic range: Yes

Features: Back Light Compensation (BLC)

Shutter speed: 1/12000 second to 2 seconds

Video format: H.264

Video signal format: NTSC

Storage: Memory Card

Connectivity: Wired, Network (RJ-45)

Remote management: Yes

Input voltage: 12V DC

Indoor/Outdoor: Outdoor

Operating temperature: -14°F to 131°F

Operating humidity: 90% RH

Color: Black

Dimensions (W x H x D): 2.88″ x 2.62″ x 5.82″

Weight: 0.93lb

TAA compliant: Yes

NDAA compliant: Yes

Country of origin: CN

Installation notes

Because the lens is not included, choose and fit a compatible C-Mount lens before final aiming, then set focus and view on site. Run the network cable to the RJ-45 port and provide a stable 12V DC supply, and confirm the mounting location suits the camera's outdoor operating temperature range.
