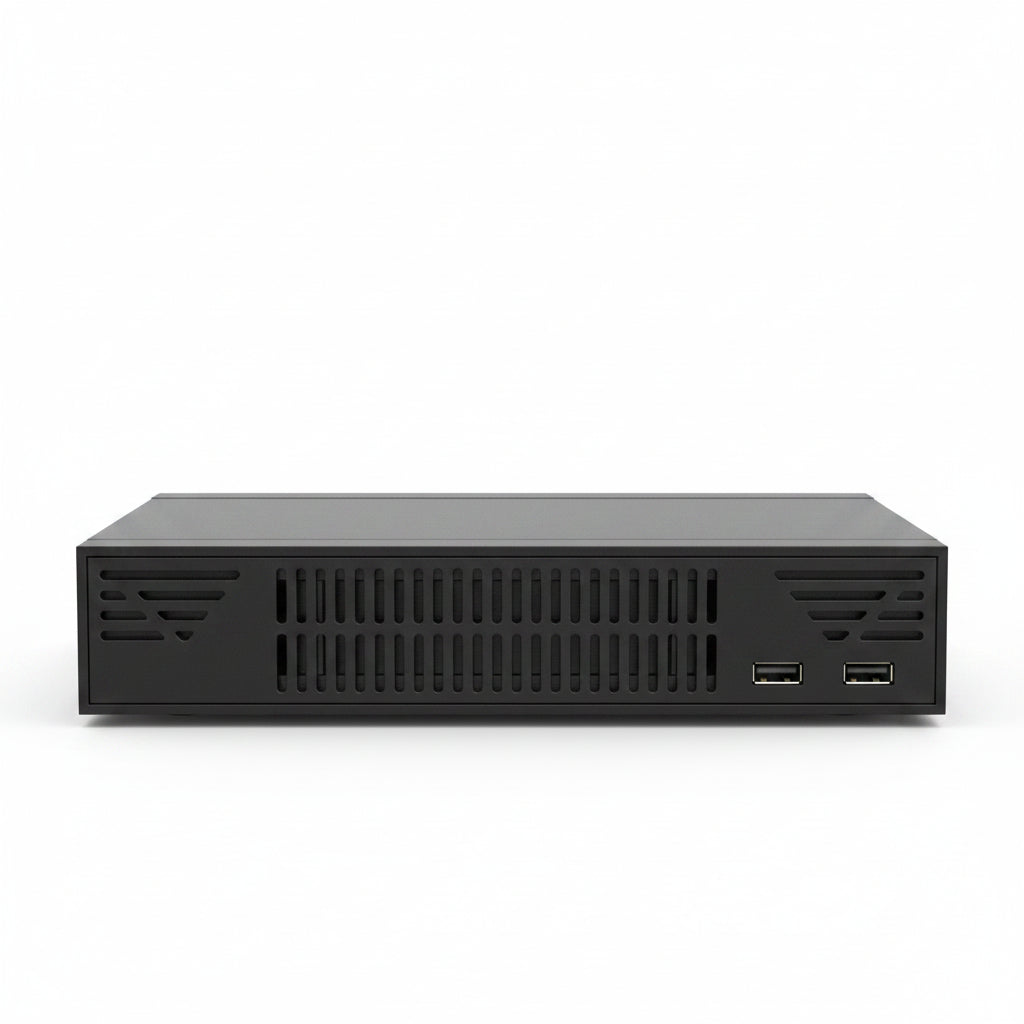

Hanwha WRN-1632S-6TB Wisenet Edge Wave NVR with USB Mouse and Rack Mount Brackets, 2U, Intel Based, 6TB, Metal, Black

The Hanwha WRN-1632S-6TB is a Wisenet WAVE PoE+ network video recorder that records and manages IP camera video from a single 2U rack unit. It suits installers and businesses that want cameras powered and recorded by the same box, with 16 PoE/PoE+ ports and 6TB of storage installed. It also supports AI metadata and expands to as much as 40TB of internal storage.

Key features

• Sixteen PoE/PoE+ ports share a 200W total power budget for powering cameras directly.
• Recording throughput is 250 Mbps.
• Internal storage can be expanded up to 40TB.
• HDMI and DP monitor outputs allow configuration and basic monitoring on a local display.
• It works with the Wave client, mobile access and Cloud Sync, and supports AI metadata.
• A USB mouse and rack mount brackets are included.

Specifications

Brand: Hanwha

Model: WRN-1632S-6TB

Product Type: Network Video Recorder

Storage Capacity: 6TB

Ethernet: Yes

Color: Black

Width: 17.32″

Height: 3.54″

Depth: 16.87″

Weight: 12.26 lb

Power Consumption: 340 W

Environmental Certification: FCC

Installation notes

Mount the recorder in a rack using the supplied brackets, and leave clear space around the unit for airflow, since it draws power for both the recorder and the connected PoE cameras. Plan your cable runs so each camera connects to a PoE port, and confirm the combined camera load stays within the PoE power budget before commissioning.
