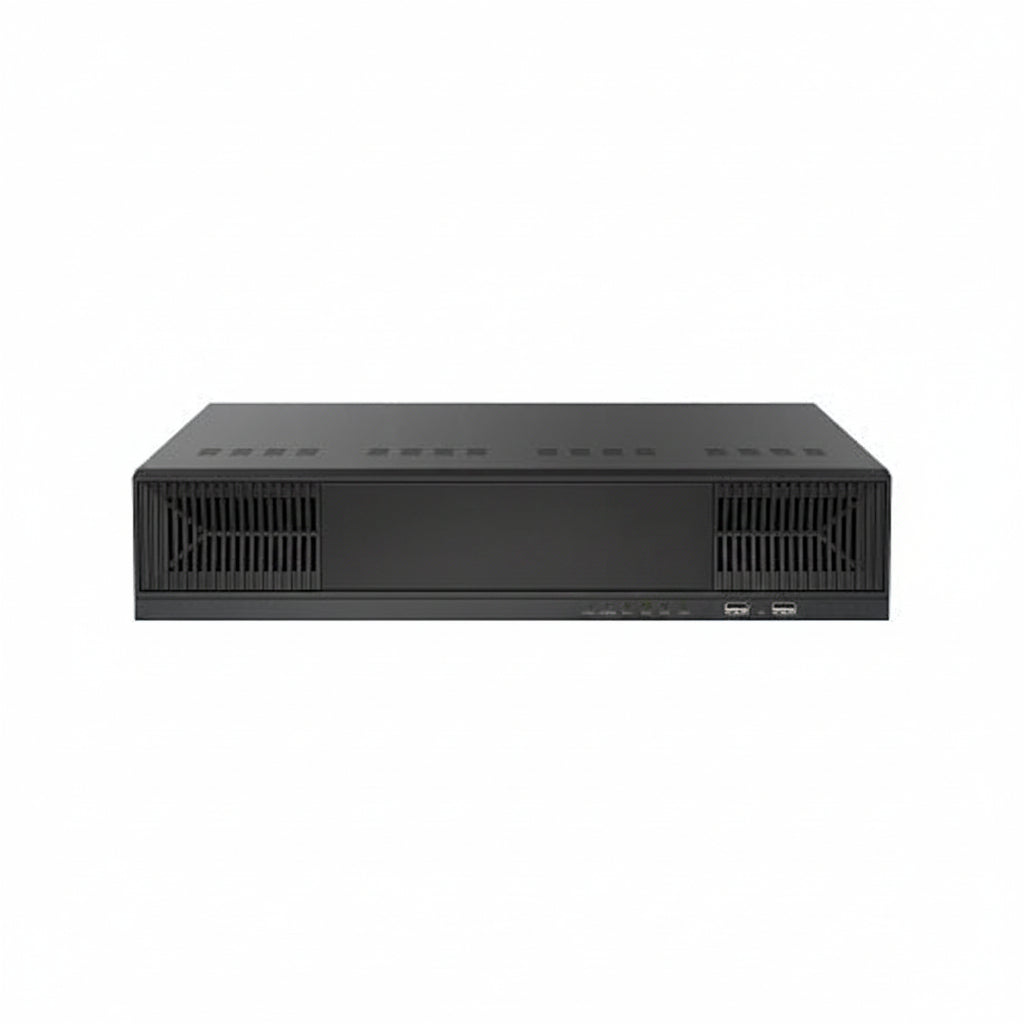

Hanwha WRN-1632S-12TB Wisenet WAVE PoE+ NVR, 12TB

The Hanwha WRN-1632S-12TB is a Wisenet WAVE PoE+ network video recorder that records and powers up to 16 IP cameras from one unit. It comes with 12TB of storage and suits installers and businesses that want a single box for cabling, power and recording. The 200W PoE budget and 250 Mbps of recording throughput are the main points to check against your camera count.

Key features

• Sixteen PoE/PoE+ ports supply power to cameras directly, with a total budget of 200W.
• Recording throughput is 250 Mbps.
• Internal storage can be expanded up to 40TB.
• It works with the Wave client, mobile access and Cloud Sync, and supports AI metadata.
• HDMI and DP monitor outputs are provided for configuration and basic monitoring.
• A USB mouse and rack mount brackets are included.

Specifications

Brand: Hanwha

Model: WRN-1632S-12TB

Product Type: Network Video Recorder

Storage Capacity: 12TB

Ethernet: Yes

Power Consumption: 340W

Width: 17.32″

Height: 3.54″

Depth: 16.87″

Weight: 12.26 lb

Environmental Certification: FCC

Installation notes

Mount the recorder in a rack using the supplied brackets, and leave room for airflow around the unit. Add up the power draw of your PoE cameras before connecting them to confirm the total stays within the recorder's PoE budget, and use the monitor output with the included mouse for initial setup.
