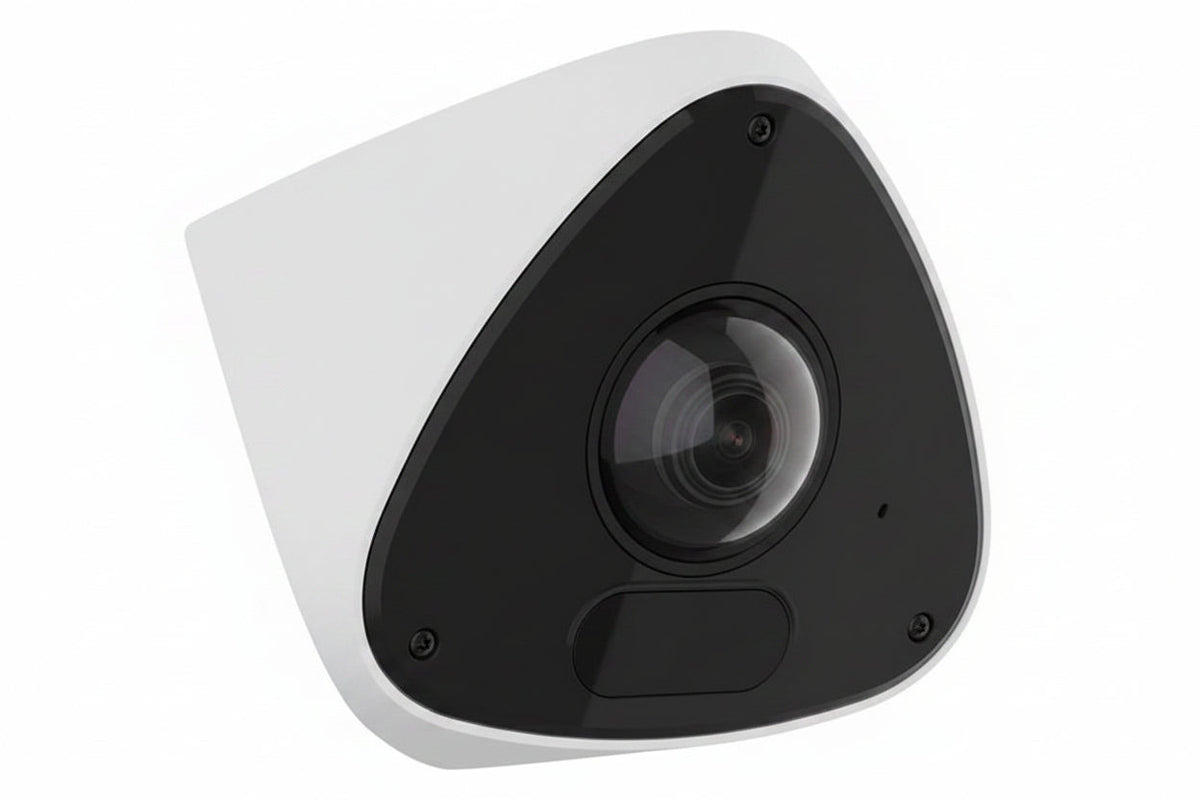

Hanwha TNV-C7013RC 3MP AI Corner Mount Camera 2.39mm Fixed Lens, White

The Hanwha TNV-C7013RC is a 3MP corner-mount network camera built for tough environments, including corrections and mental health facilities where anti-ligature hardware is required. It records at up to 2048 x 1536 through a fixed 2.39mm lens with a 128° horizontal and 100° vertical view, so one unit covers a room corner. AI object detection and IR night vision round out a vandal-resistant, outdoor-rated housing in white.

Key features

• Anti-ligature design suits corrections and mental health facilities.
• The 2.39mm fixed lens gives a 128° horizontal and 100° vertical angular field of view.
• AI analytics classify people, faces, vehicles and license plates, with object detection and virtual line events.
• Clothes color detection recognizes orange, black and red at 400 lux.
• Wise IR reaches 15m (49.21ft) using an invisible 940mm wavelength.
• A MicroSD/SDHC/SDXC slot supports cards up to 1TB for onboard recording.

Specifications

Model: TNV-C7013RC

Product name: 3MP AI IR Vandal Corner Camera

Brand: Hanwha

Color: White

Mount type: Corner mount

Effective resolution: 3MP

Maximum video resolution: 2048 x 1536

Aspect ratio: 4:3

Maximum frame rate: 30fps

Video format: H.264

Image sensor: CMOS

Lens: 2.39mm fixed, included

Maximum aperture: f/2

Field of view: 128° horizontal, 100° vertical

Minimum illumination: 0.04 lux color, 0.04 lux B/W (F2.0, 1/30sec, 30IRE)

Shutter speed: 1/12000 second to 2 seconds

Night vision: Infrared (IR), 49.21ft

Image features: Wide Dynamic Range, Back Light Compensation (BLC)

Storage: MicroSD/SDHC/SDXC memory card, up to 1TB

Connectivity: Wired, RJ-45 network

Remote management: Yes

Cloud: Cloud enabled

Impact protection: IK10

Ingress protection: IP66

Environment: Outdoor

Operating temperature: 14°F to 131°F

Operating humidity: 95% RH (non-condensing)

Dimensions (H x W x D): 4.13″ x 7.87″ x 7.82″

Weight: 4.27lb

TAA compliant: Yes

Country of origin: VN

Installation notes

Mount it at the junction of two walls and confirm the corner surface is flat and solid enough to carry the camera. Run the network cable to the RJ-45 port before final mounting, and check the view and image quality on site before leaving.
