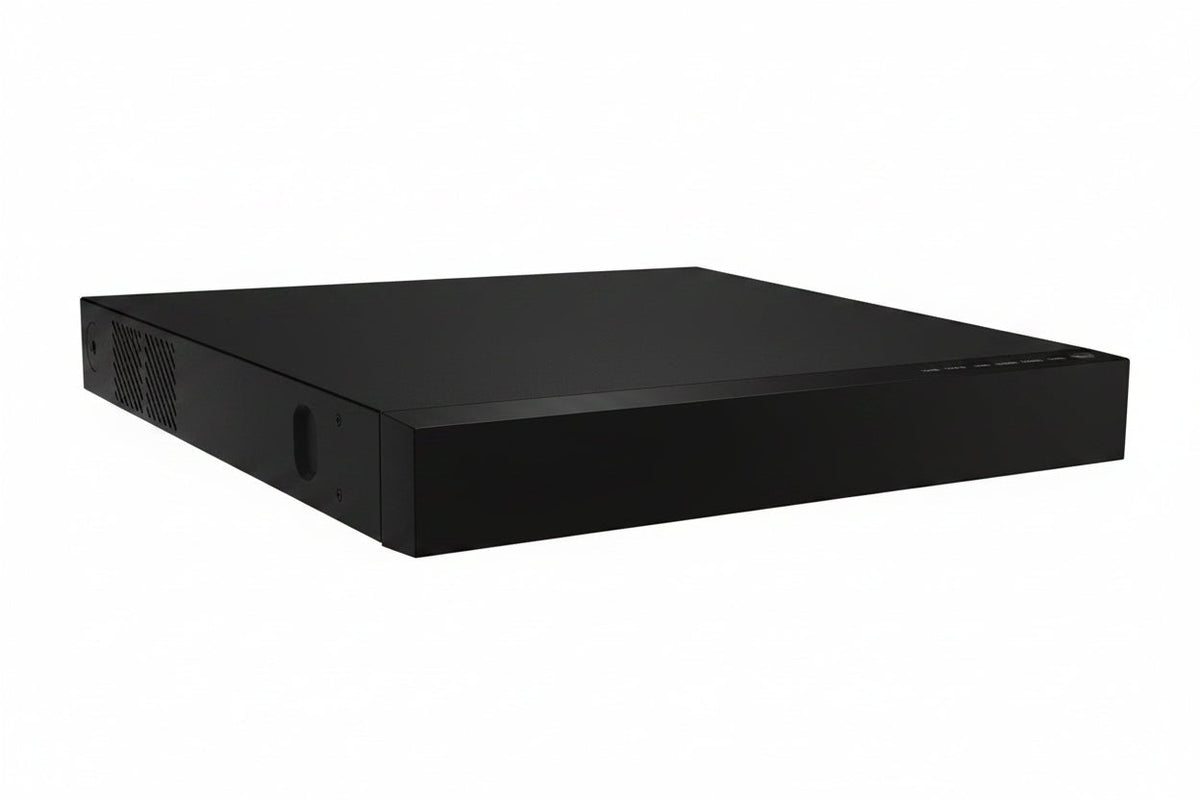

Hanwha SPE-1630 16-Channel Network Video Encoder, H.265/H.264/MJPEG, HDMI Output

The Hanwha SPE-1630 is a 16-channel network video encoder that digitizes analog camera feeds so they can be recorded and viewed on an IP surveillance system. It suits installers and businesses upgrading an existing analog installation without replacing every camera. It supports H.265, H.264 and MJPEG, handles up to 5MP, and includes an HDMI output and rack mount brackets.

Key features

• Supports resolutions up to 5MP, at up to 12 fps at 5MP and 30 fps at 1080p.
• Works with H.265, H.264 and MJPEG video codecs.
• Offers multiple streaming, with up to 3 profiles per channel.
• Controls PTZ cameras through an RS-485 interface and coaxial control.
• Includes an HDMI output, audio in/out and a single RJ-45 10/100/1000 Base-T network port.
• Comes with rack mount brackets for easier installation.

Specifications

Brand: Hanwha

Model: SPE-1630

Product name: 16CH Video Encoder

Color: Black

Connectivity: Wired

Ethernet: Yes

HDMI: Yes

Effective camera resolution: 5MP

Maximum resolution: 1280 x 720

Maximum frame rate: 30fps

Video formats: H.264

Video signal format: NTSC

Power consumption: 20.0000W

Width: 14.60″

Height: 1.70″

Depth: 12.60″

Weight: 5.11lb

Installation notes

Mount the encoder in a rack using the supplied brackets, and leave room at the front and rear for cabling and airflow. Label each camera input and its PTZ control connection during installation so channels are easy to identify when you commission the system.
