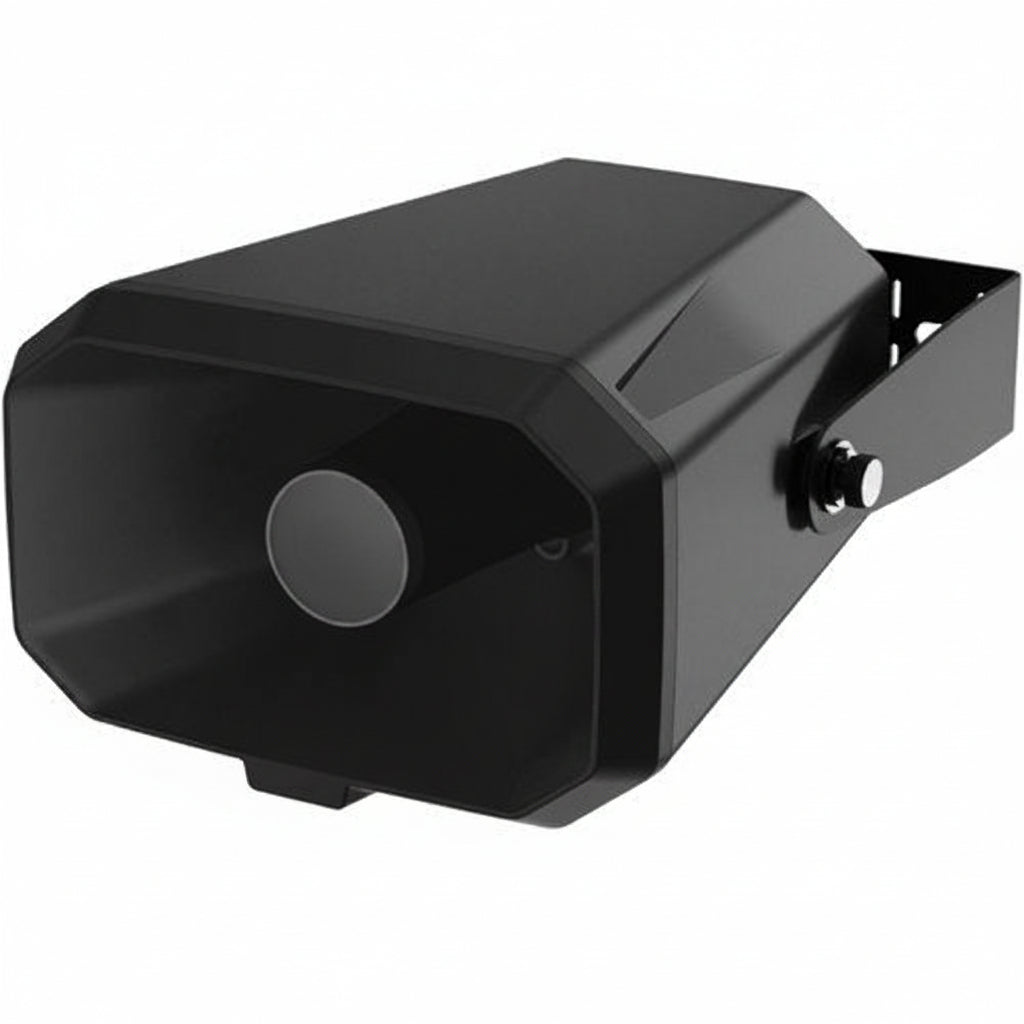

Hanwha SPA-H100B IP Horn Speaker, 100 dB SPL, Black

The Hanwha SPA-H100B is an IP horn speaker that delivers paging, announcements and recorded audio over a standard network connection. It suits installers and businesses that need outdoor audio on PoE-powered cabling, and it stands out for its IP66 rating, built-in MP3 player and text-to-speech support in several languages. Model SPAH100B is rated at 100 dB SPL and in black.

Key features

• Sensitivity is listed at 111 dB.
• It runs on PoE (IEEE 802.3at Type 1, Class 3) or PoE+ (IEEE 802.3at Type 2, Class 4).
• The IP66 rating means it is made for outdoor use.
• It has 1GB of internal memory and a built-in MP3 player.
• Text-to-speech is available in English (US, UK), German, French, Spanish and Russian.
• Supported protocols include IPv4, HTTP, HTTPS, SIP, mDNS, DNS, NTP, TCP, UDP, DHCP, ARP, ICMP and SNMP (v3).

Specifications

Brand: Hanwha

Model: SPAH100B

Product Model: SPA-H100B

Product Type: Speaker System

Vendor Name: Hanwha Vision

Features: Built-in MP3 Player

Network (RJ-45): Yes

Power Source: PoE (Power over Ethernet)

RMS Output Power: 10W

Minimum Frequency Response: 650Hz

Maximum Frequency Response: 5kHz

Height: 6.10″

Width: 9.50″

Depth: 12.10″

Installation notes

Confirm the PoE switch port supplies enough power for the class this speaker requires before mounting, and run a single network cable to the speaker location. Aim the horn toward the listening area, leave room for its depth, and test announcements at the intended spot during commissioning.
