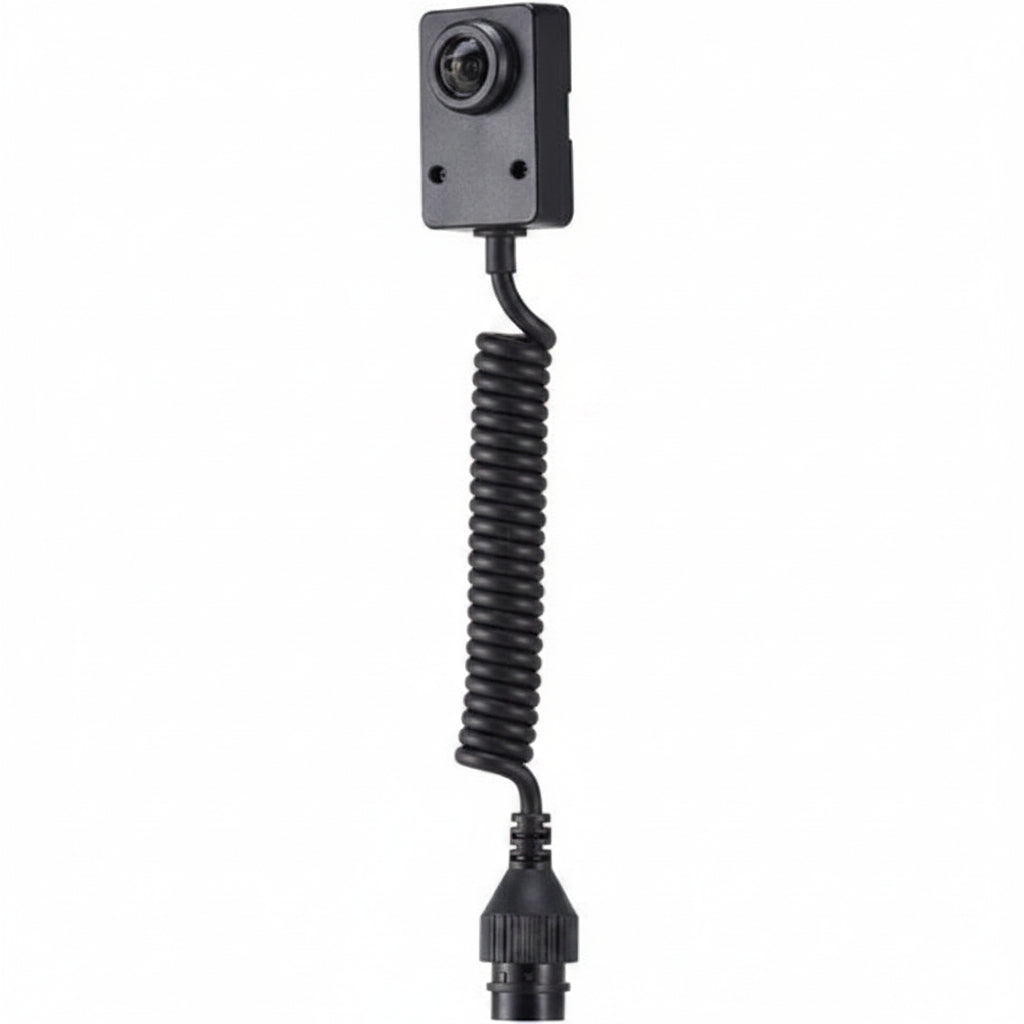

Hanwha SLA-T4680VA 4.6mm Pinhole Lens Module for PNM Series, 2MP, 8m (26') Cable, Black

The Hanwha SLA-T4680VA is a 4.6mm pinhole lens module built for Hanwha's PNM series, specifically the PNM-9000QB remote camera. It is a 2MP fixed focal lens with an 8m (26') cable, in a black metal housing, and it suits installers who need a small, low-profile lens head on a multi-sensor camera. It is NDAA compliant, which matters for government-related and other restricted projects.

Key features

• Fixed 4.6mm focal length, so there is no zoom or focus adjustment to manage.
• Rated at 0.06 lux in color mode (F2.5, 1/30 sec) for low-light scenes.
• Pinhole design keeps the lens head small for discreet placement.
• 2MP resolution.
• Made for the Hanwha PNM-9000QB remote camera.
• Metal construction in black.

Specifications

Brand: Hanwha

Model: SLA-T4680VA

Product Type: Lens Module

Focal Length: 4.6mm fixed

Resolution: 2MP

Cable Length: 8m (26')

Low-Light Rating: Color 0.06 lux (F2.5, 1/30 sec)

Color: Black

Material: Metal

Depth: 1.77″

Height: 1.10″

NDAA Compliant: Yes

Compatibility: Hanwha Techwin PNM-9000QB Remote Camera

Installation notes

Plan the cable route from the lens location back to the main unit before mounting, and make sure the 8m run reaches without strain or tight bends. After mounting, check the view on the live image and confirm the framing suits the 4.6mm fixed field of view.
