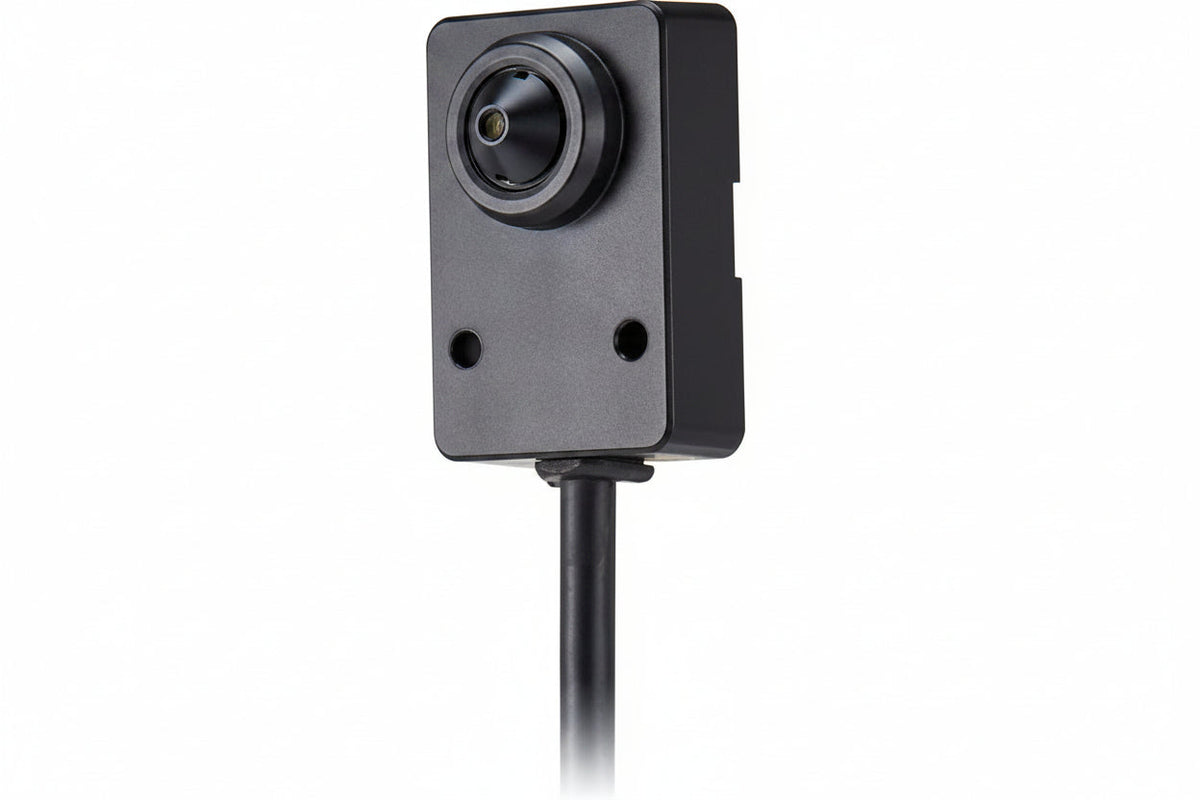

Hanwha SLA-T4680V 2MP Pinhole Lens Module with Right-Angle Body Style, 4.6mm Pinhole Lens, Compatible with XNB-6001 Cameras

The Hanwha SLA-T4680V is a 2MP pinhole lens module with a right-angle body style and a 4.6mm focal length, made for the Hanwha XNB-6001 surveillance camera. It suits installers who need a discreet, low-profile camera head for covert or space-limited placements. It delivers 2MP at 60fps with 0.06 Lux sensitivity and 120dB WDR, and it is NDAA compliant.

Key features

• Captures up to 2MP (1920 x 1080) resolution.
• Uses a 4.6mm pinhole lens with a 73° horizontal field of view.
• Rated at 0.06 Lux at F2.5 for low-light scenes.
• Offers 120dB WDR and 2MP at 60fps.
• Includes an 8 meter (26 foot) cable and a right-angle body style.

Specifications

Brand: Hanwha

Model: SLA-T4680V

Product Type: Lens Module

Compatibility: Hanwha XNB-6001 Surveillance Camera

Resolution: Max. 2MP (1920 x 1080)

Focal Length: 4.6mm

Horizontal Field of View: 73°

Low-Light Sensitivity: 0.06Lux@F2.5

WDR: 120dB

Cable Length: 8 meters / 26 feet

Color: Black

Width: 1.20″

Height: 0.80″

Depth: 1.80″

NDAA Compliant: Yes

Country of Origin: KR

Installation notes

Plan the route for the attached cable between the lens module and the XNB-6001 before mounting, and avoid sharp bends or pinching the cable. Confirm the field of view on the live image during commissioning and adjust the aim as needed.
