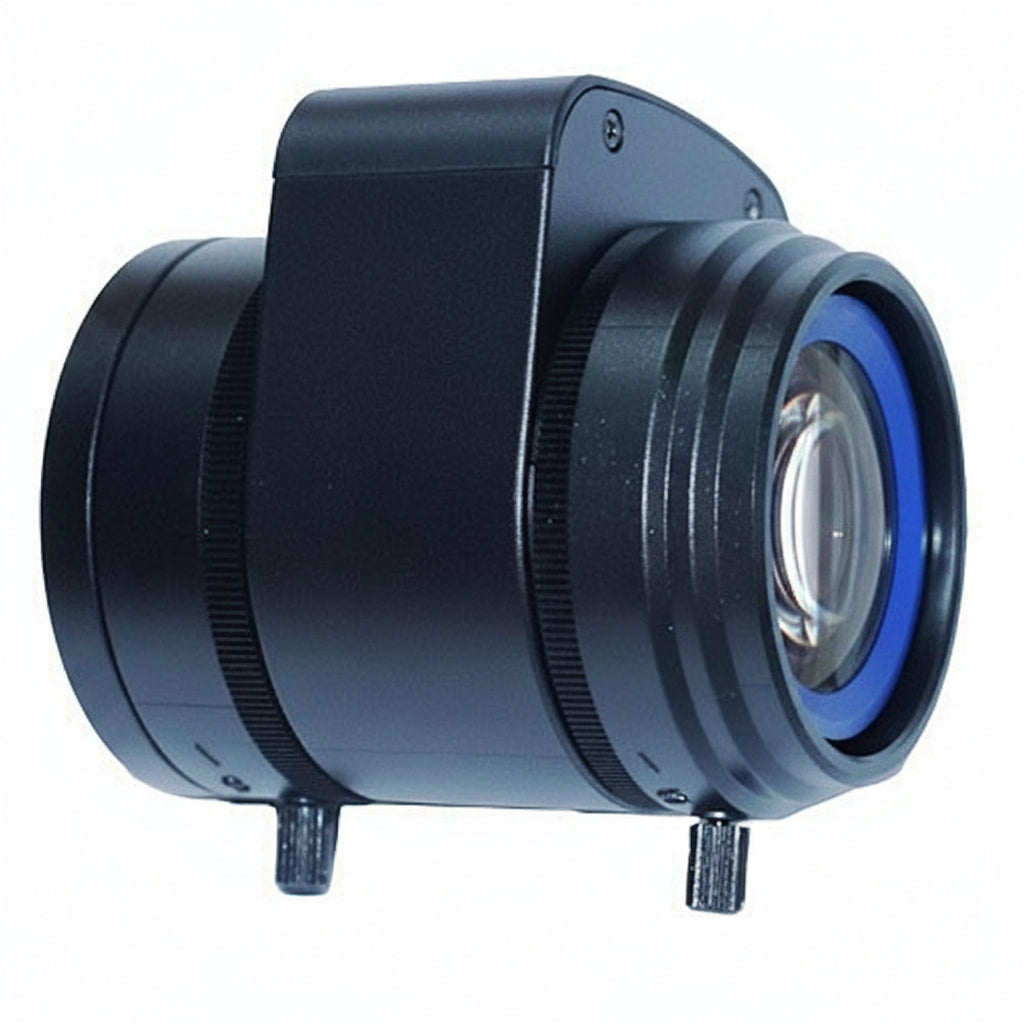

Hanwha SLA-T-M1250DN 12MP DC-Iris Lens, 12-50mm Varifocal Lens, Compatible with XNB-6005/8000 and PNB-A9001 Cameras

The Hanwha SLA-T-M1250DN is a 12-50mm CS-mount varifocal lens with a DC auto iris, built for surveillance cameras. It suits installers and integrators fitting compatible Hanwha network cameras who need resolution up to 12MP and the freedom to tune the field of view on site. The 4.2x optical zoom range and NDAA compliance make it a practical pick for projects with sourcing requirements.

Key features

• The 12-50mm varifocal range lets you set the field of view during commissioning.
• It supports resolution up to 12MP.
• The DC auto iris helps the camera adjust to changing light levels and keeps the video signal consistent.
• It works with image sensors from 1/2.3″ up to 1/1.17″.
• It is compatible with the Hanwha XNB-6005, XNB-8000 and PNB-A9001 cameras.

Specifications

Brand: Hanwha

Model: SLA-T-M1250DN

Product type: Lens

Application: Surveillance camera

Lens type: Varifocal

Focal length: 12-50mm

Optical zoom: 4.2x

Maximum aperture: f/2.4

Minimum aperture: f/1.8

Iris type: DC auto iris

Lens mount: CS

Sensor size compatibility: 1/1.17″

Compatible cameras: XNB-6005, XNB-8000, PNB-A9001

NDAA compliant: Yes

Country of origin: ID

Installation notes

Confirm the lens is a match for your camera model before mounting, and keep the sensor and lens surfaces clean and dust-free while fitting it. After installation, set zoom and focus on the live image at the final viewing position, and check the picture again once lighting conditions change.
