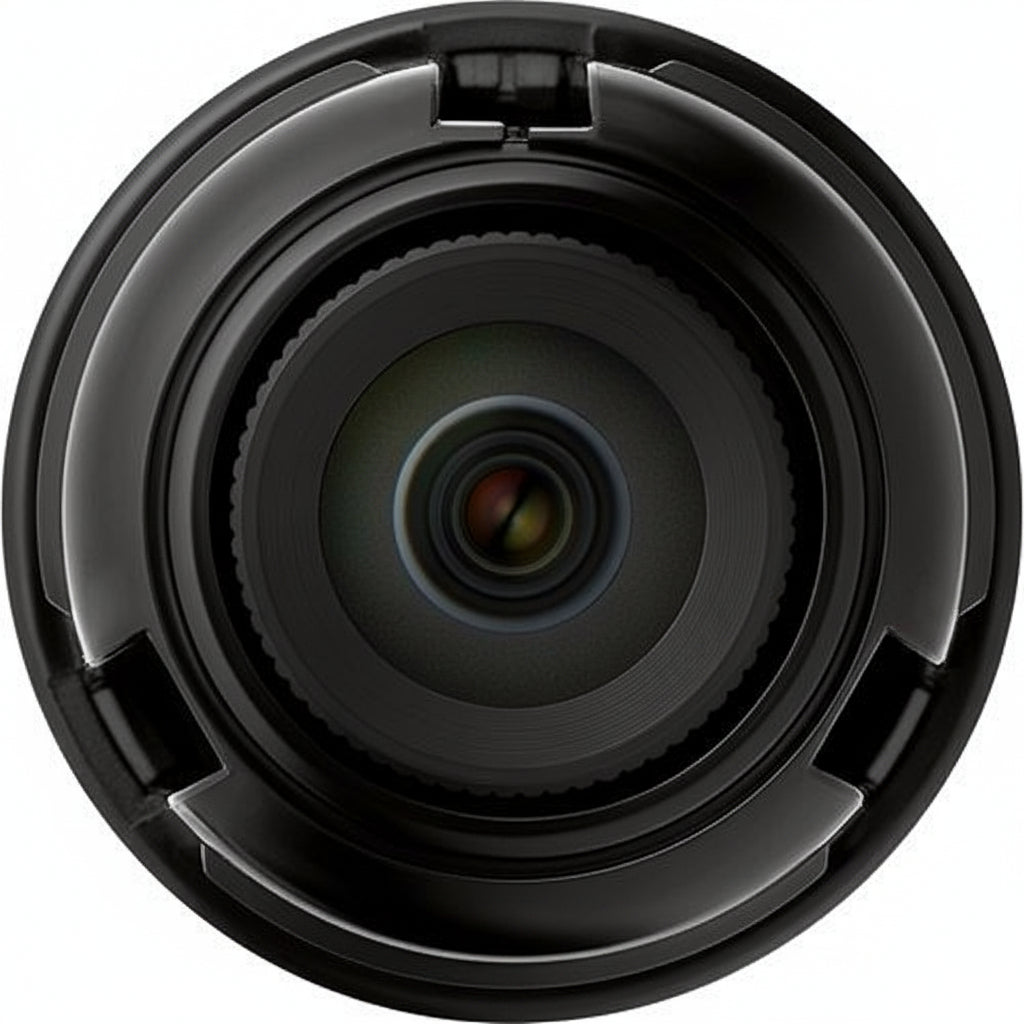

Hanwha SLA-5M3700P Lens Module for PNM Cameras, 3.7mm Fixed Lens

The Hanwha SLA-5M3700P is a lens module for Hanwha PNM cameras, built around a 1/1.8″ 5MP CMOS sensor and a 3.7mm fixed focal length lens. It suits installers and businesses who need to fit or replace the lens on a compatible Hanwha PNM-9320VQP surveillance camera. Its wide field of view and f/1.6 aperture are the main strengths.

Key features

• Uses a 1/1.8″ 5MP CMOS sensor.
• Has a 3.7mm fixed focal length lens, so there is no zoom to adjust.
• Covers a 97.5° horizontal and 71.9° vertical field of view.
• Rated at 0.16 lux at F1.6 in both color and black-and-white modes.
• Listed as NDAA compliant.

Specifications

Brand: Hanwha

Model: SLA-5M3700P

Product Type: Lens Module

Application/Usage: Surveillance Camera

Compatibility: Hanwha PNM-9320VQP Surveillance Camera

Lens Type: Fixed

Focal Length: 3.7mm

Maximum Aperture: f/1.6

Lens Mount Type: M12

Material: Plastic

Color: Black

Height: 1.40″

Diameter: 1.40″

Weight: 0.08 lb

NDAA Compliant: Yes

Installation notes

Confirm the camera model matches the listed compatibility before fitting the module. Handle the lens by its housing, keep the sensor area free of dust and fingerprints, and check the image framing and focus after installation.
