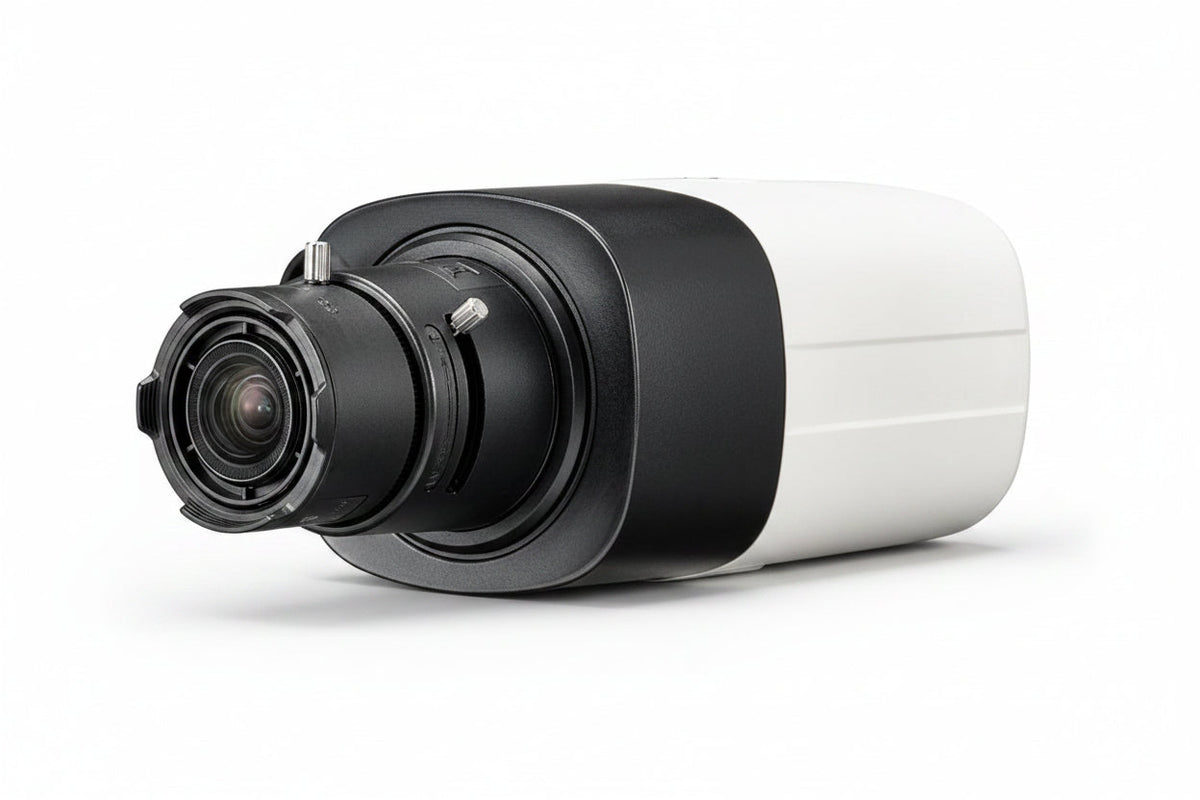

Hanwha SCB-6005 HD+ Series 2MP Analog Box Camera, Lens Not Included, Black and Ivory

The Hanwha SCB-6005 is a 2MP AHD analog box camera from the HD+ series, built to bring Full HD video to a site that already has coax cabling. It suits installers and businesses upgrading a legacy analog system without running new cable. Standouts include 1920 x 1080 video at 30 fps, day and night operation with an ICR filter, and a transmission distance of up to 500m. The lens is not included.

Key features

• Records Full HD video at 1920 x 1080 and 30 fps.
• Rated for 0.04Lux at F1.2 in color and 0.004Lux at F1.2 in black and white.
• Switches between day and night modes with an ICR filter.
• Includes SSNRIV noise reduction and motion detection.
• Transmits video up to 500m and is NDAA compliant.

Specifications

Model: SCB-6005

Brand: Hanwha

Product Series: HD+

Product Type: Box Camera

Analog Video Signal Format: AHD

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Maximum Resolution: 1280 x 720

Maximum Frame Rate: 30fps

Recording Formats: Full HD

Image Sensor Type: CMOS

Minimum Illumination: 0.0065lux

Maximum Aperture: f/1.2

Shortest Shutter Speed: 1/12,000 Second

Longest Shutter Speed: 1 Second

Features: Automatic White Balance

Lens Mount Type: C

Mount Type: Wall Mount

Indoor/Outdoor: Outdoor

Connectivity Technology: Wired

Remote Management: No

Input Voltage: 12V DC

Minimum Operating Temperature: 14°F

Maximum Operating Temperature: 131°F

Operating Humidity: 90% RH

Color: Black

Width: 2.69″

Height: 2.35″

Depth: 3.65″

Weight: 0.41lb

Country of Origin: VN

Installation notes

Choose and fit a C-mount lens before final mounting, since none is supplied, and confirm it suits the field of view you need. Reuse the existing coax run where it is in good condition, supply a stable 12V DC source, and check the picture at the recorder before you finalize aim and focus.
